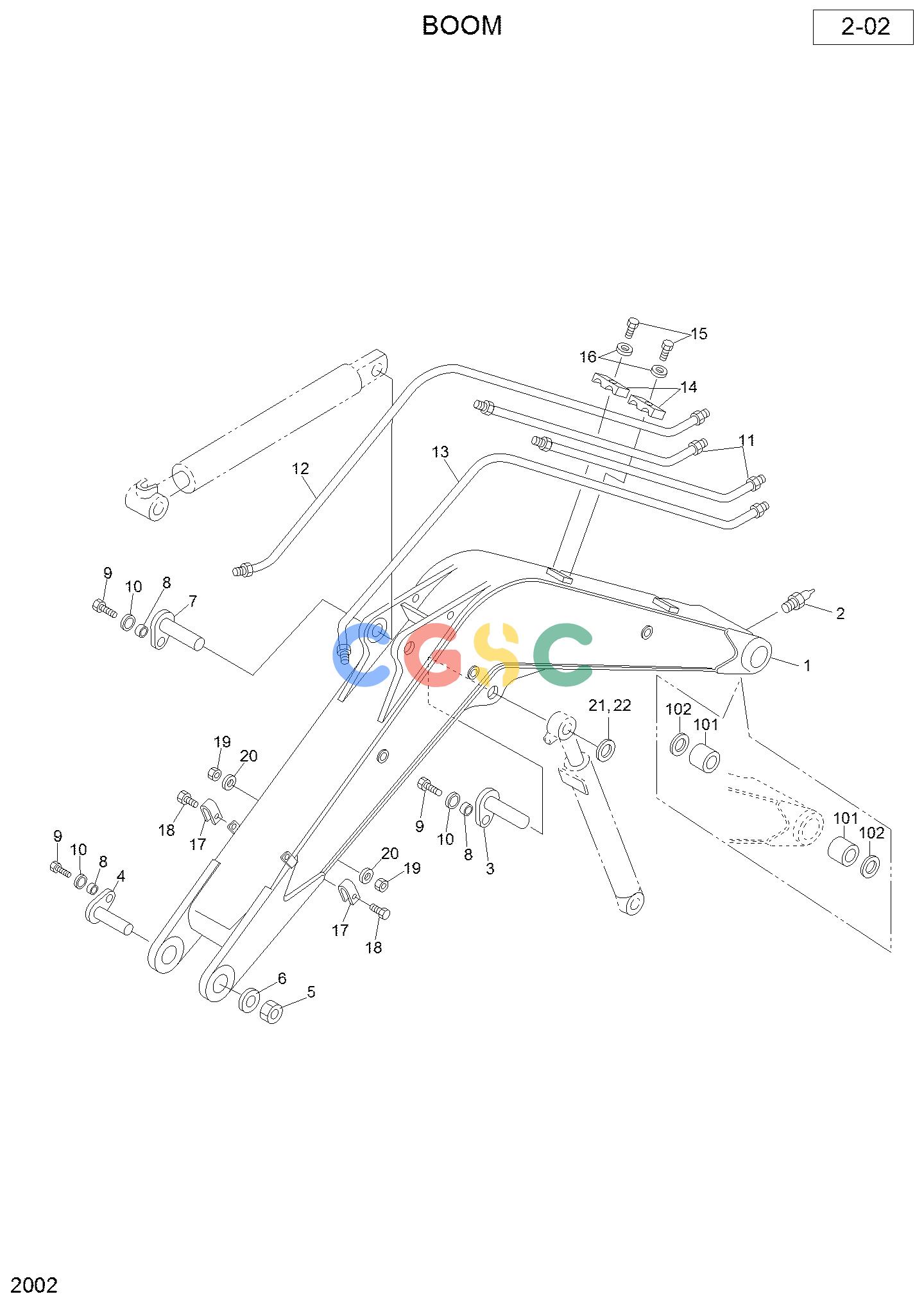

现代零件查询R36N-7 BOOMEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03620
|
[1] |
BOOM
|
|
| 101. |
XJDH-01505
|
[2] |
BUSHING
|
|
| 102. |
XJDH-00365
|
[2] |
SEAL-DUST
|
|
| 2. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 3. |
XJDH-01515
|
[1] |
PIN
|
|
| 4. |
XJDH-01480
|
[1] |
PIN
|
|
| 5. |
XJDH-01518
|
[1] |
PIN
|
|
| 6. |
XJDH-01181
|
[4] |
COLLAR
|
|
| 7. |
XJDH-00070
|
[4] |
BOLT
|
|
| 8. |
XJDH-00280
|
[4] |
WASHER
|
|
| 9. |
XJDH-01517
|
[1] |
PIN
|
|
| 10. |
XJDH-00199
|
[1] |
NUT-U
|
|
| 11. |
XJDH-00260
|
[1] |
WASHER
|
|
| 12. |
XJDH-03621
|
[2] |
PIPE
|
|
| 13. |
XJDH-03622
|
[1] |
PIPE
|
|
| 14. |
XJDH-03623
|
[1] |
PIPE
|
|
| 15. |
XJDH-00845
|
[5] |
CLAMP-PIPE
|
|
| 16. |
XJDH-00058
|
[5] |
BOLT
|
|
| 17. |
XJDH-00278
|
[5] |
WASHER
|
|
| 18. |
XJDH-01194
|
[AR] |
SHIM(C, 0.5T)
|
|
| 19. |
XJDH-01195
|
[AR] |
SHIM(D, 1.0T)
|
|
| 20. |
XJDH-01196
|
[AR] |
SHIM(E, 0.5T)
|
|
| 21. |
XJDH-01197
|
[AR] |
SHIM(F, 1.0T)
|
|
