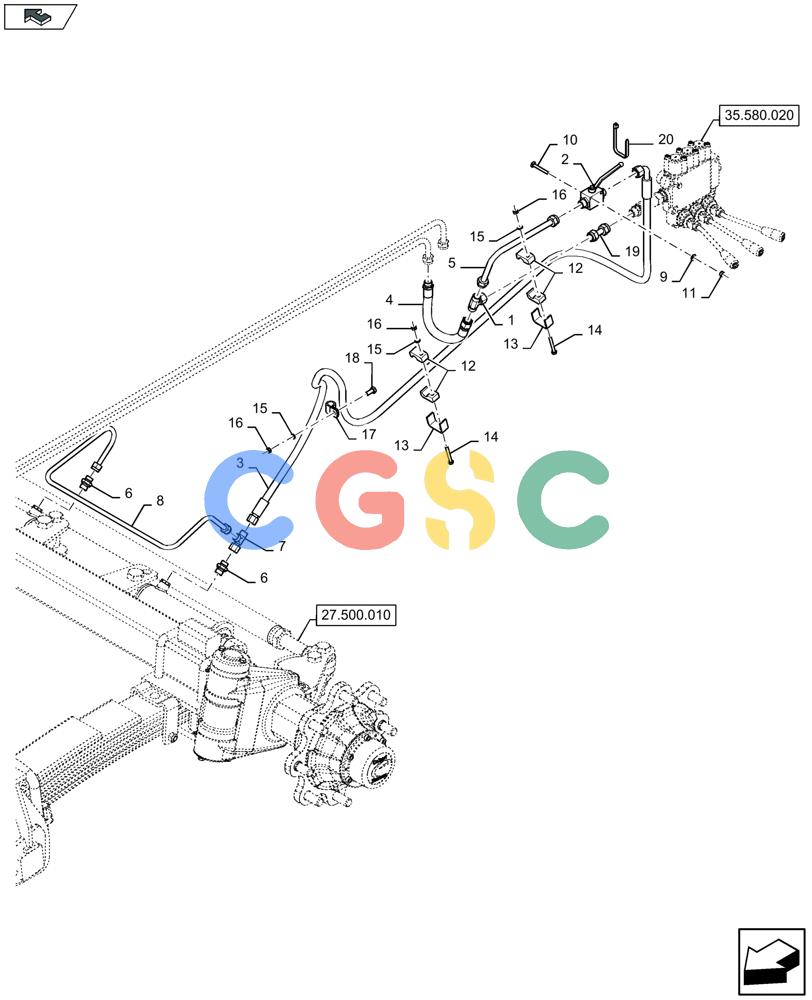

凯斯零件查询(LB424S XL) - BALER (11/16-) (35.585.010) - TANDEM AUTO-STEER AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
448 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84233170
|
[1] |
UNION TEE
|
ZED
|
| 1. |
150019
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 2. |
84362099
|
[1] |
COCK,M18 x 1.5 x M18 x 1.5
|
ZED
|
| 3. |
84301650
|
[1] |
HOSE,7.92mm ID x 2220mm L, SAE 100R16
|
ZED
|
| 3. |
47982644
|
[1] |
HYDRAULIC HOSE
|
ZED
|
| 4. |
84296106
|
[1] |
HOSE,9.6mm ID x 275mm L, SAE 100R16
|
ZED
|
| 4. |
47981702
|
[1] |
HYDRAULIC HOSE
|
ZED
|
| 5. |
84542429
|
[1] |
HYD TUBE
|
ZED
, Serial Range: -C136
|
| 5. |
84426811
|
[1] |
HYD TUBE
|
ZED
, Start Serial: D137
|
| 6. |
9813512
|
[2] |
HYD CONNECTOR
|
ZED
, Serial Range: -C089 Superseded by part number: 89813512
|
| 6. |
2928203
|
[2] |
SOCKET
|
BER
, Start Serial: D090
|
| 7. |
734031
|
[1] |
HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female
|
ZED
|
| 8. |
84411873
|
[1] |
HYD TUBE
|
ZED
|
| 8. |
84219006
|
[1] |
HYD TUBE
|
ZED
|
| 8. |
84216732
|
[1] |
HYD TUBE
|
ZED
, Start Serial: D085
|
| 9. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 10. |
412364
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8
|
ZED
|
| 11. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 12. |
433007
|
[4] |
CLAMP
|
ZED
|
| 13. |
433100
|
[2] |
SUPPORT
|
ZED
|
| 14. |
412559
|
[2] |
BOLT,Hex, M6 x 50mm, Cl 8.8, Full Thd
|
NH
|
| 15. |
86588450
|
[3] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 16. |
353308
|
[3] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 17. |
431351
|
[1] |
CLAMP,15mm ID, 8.5mm Bolt Hole, P Type
|
ZED
|
| 18. |
120104
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
, Serial Range: -C023
|
| 18. |
86977786
|
[1] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
, Start Serial: D024
|
| 19. |
84542427
|
[1] |
HYD TUBE
|
ZED
|
| 20. |
368582
|
[1] |
STRAP
|
GI
, Serial Range: -C023 Superseded by part number: 263117
|
| 20. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
, Start Serial: D024
|
