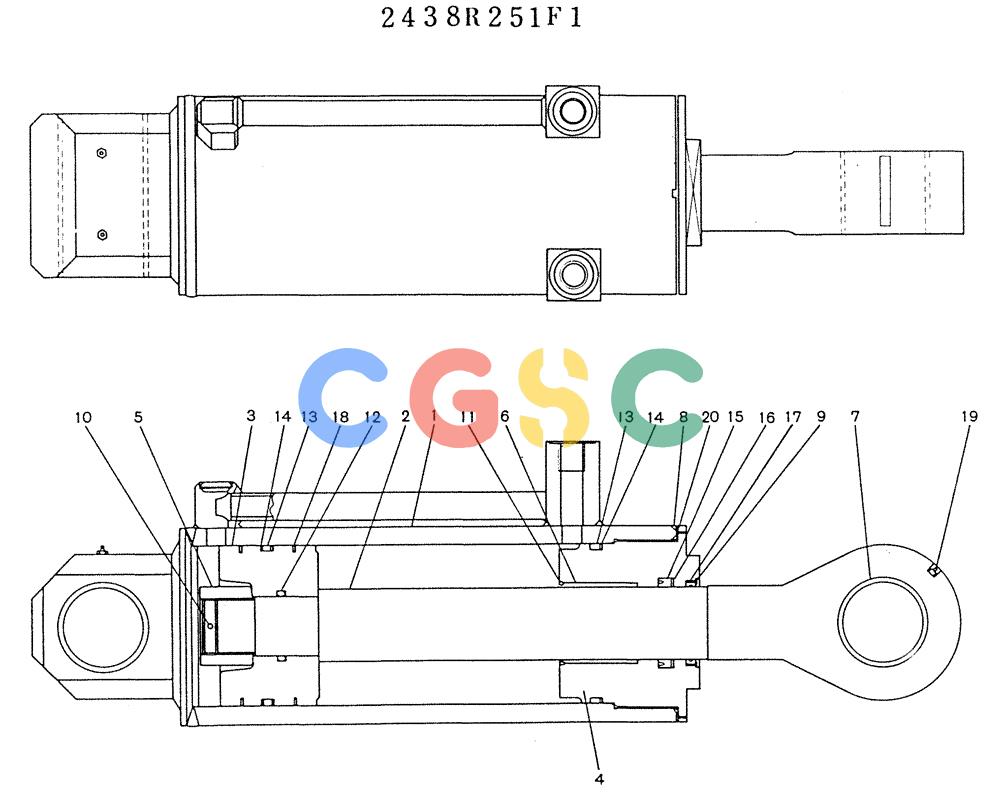

神钢零件查询(K905) - MARK II EXCAVATOR BTW LP2401-LP3407 (1/00-12/03) (11-039) - CYLINDER ASSY (P/N 2438R251F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438R251F1 | [1] | CYLINDER ASSY | CYLINDER ASSY |
| 1. | 2438R251S1 | [1] | TUBE, CYLINDER | |
| 2. | 2438R251S2 | [1] | PISTON ROD | |
| 3. | 2438R251S3 | [1] | PISTON | |
| 4. | 2438R251S4 | [1] | HEAD, CYLINDER | |
| 5. | 2438R251S5 | [1] | NUT | |
| 6. | 2438R251S6 | [1] | BUSHING | |
| 7. | 2405T942 | [3] | BUSHING | KOB |
| 8. | 2438R251S8 | [1] | LOCKWASHER | |
| 9. | 2438R251S9 | [1] | LOX, SPIRO | LOX, SPIRO |
| 10. | ZP15D06110 | [1] | SPLIT PIN | |
| 11. | ZS83C05008 | [2] | SCREW | KOBSet -- M05x0.8x08mm |
| 12. | ZD12P07100 | [1] | O-RING | KOB |
| 13. | ZD12P21000 | [2] | O-RING | O-RING |
| 14. | ZD85P21000 | [3] | RING, BACK-UP | RING, BACK-UP |
| 15. | 2438R251S15 | [1] | U-PACKING | U-PACKING |
| 16. | 2438K251S16 | [1] | RING, BACK-UP | |
| 17. | 2438R251S17 | [1] | SEAL, DUST | SEAL, DUST |
| 18. | 2438R251S18 | [2] | PISTON-RING | PISTON-RING |
| 19. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 20. | ZD12P23000 | [1] | O-RING | O-RING |
| . . | 2438R251R100 | [1] | SEAL KIT | KOBCONSISTS OF THE REF 13 TO 16 & 18, 20 |
| . . | 2438R251R110 | [1] | SEAL KIT | KOBCONSISTS OF THE REF 10 & 12 TO 14 |
