神钢零件查询(K905) - MARK II EXCAVATOR BTW LP2401-LP3407 (1/00-12/03) (05-006) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
739 次

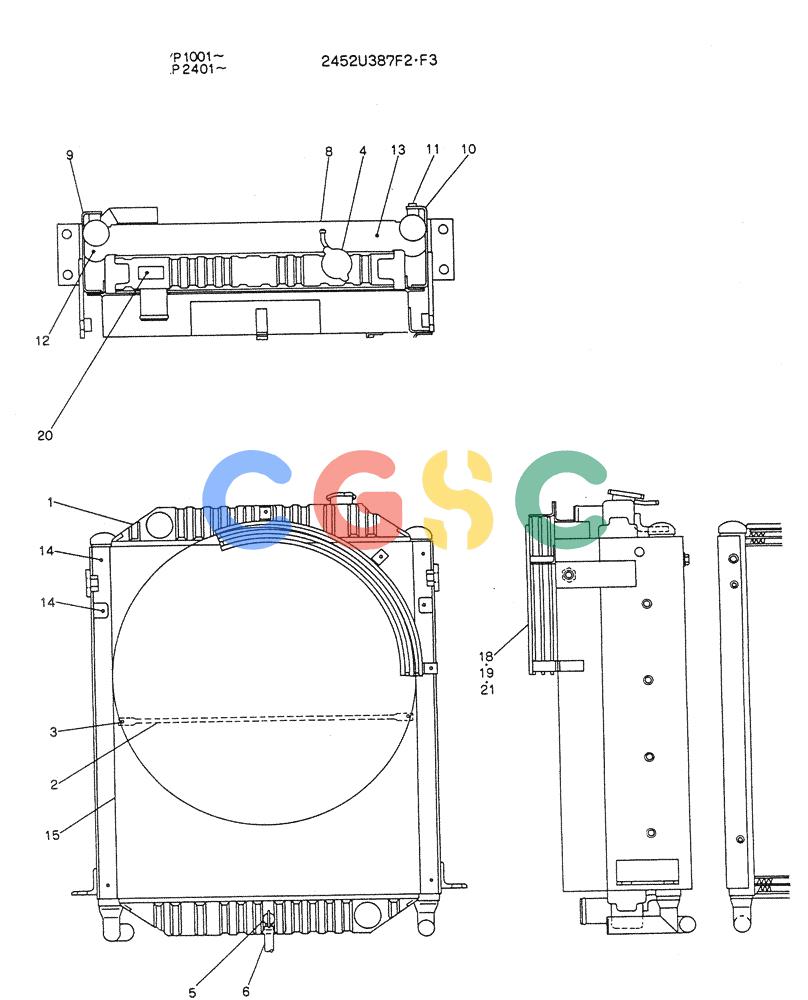

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U387F2 | [1] | RADIATOR ASSY, Serial Range: LP2401-LP2565 | |
| . . | 2452U387F3 | [1] | RADIATOR | KOB, Start Serial: YP1001 |
| 1. | 2452U387S1 | [1] | RADIATOR | KOB |
| 2. | 2452U375S2 | [1] | ROD | |
| 3. | ZM11C06016 | [2] | BOLT | KOB |
| 4. | 2452U375S6 | [1] | RADIATOR CAP | KOB Superseded by part number: YT05P00009S002 |
| 5. | 2452U183S5 | [1] | PLUG | KOB |
| 6. | 2452U375S15 | [1] | HOSE | HOSE |
| 8. | 2452U387S8 | [1] | OIL COOLER | KOB |
| 9. | 2452U387S9 | [1] | BRACKET | |
| 10. | 2452U387S10 | [1] | BRACKET | |
| 11. | 2452U292S30 | [6] | SCREW | KOB |
| 12. | 2452U387S12 | [2] | PACKING | KOB |
| 13. | 2452U387S13 | [2] | PACKING | KOB |
| 14. | 2452U375S9 | [8] | BOLT | BOLT |
| 15. | 2452U387S15 | [1] | GUARD,FAN, Serial Range: LP240-LP2565 | |
| 18. | 2452U387S18 | [1] | GUARD ASSY, FAN | GUARD ASSY, FAN |
| 19. | 2452U261S27 | [3] | SCREW | KOBCAPSCREW Superseded by part number: ZS18C08016 |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 21. | 2452U387S21 | [1] | GUARD ASSY, FAN, Start Serial: YP1001 | GUARD ASSY, FAN, Start Serial: YP1001 |
