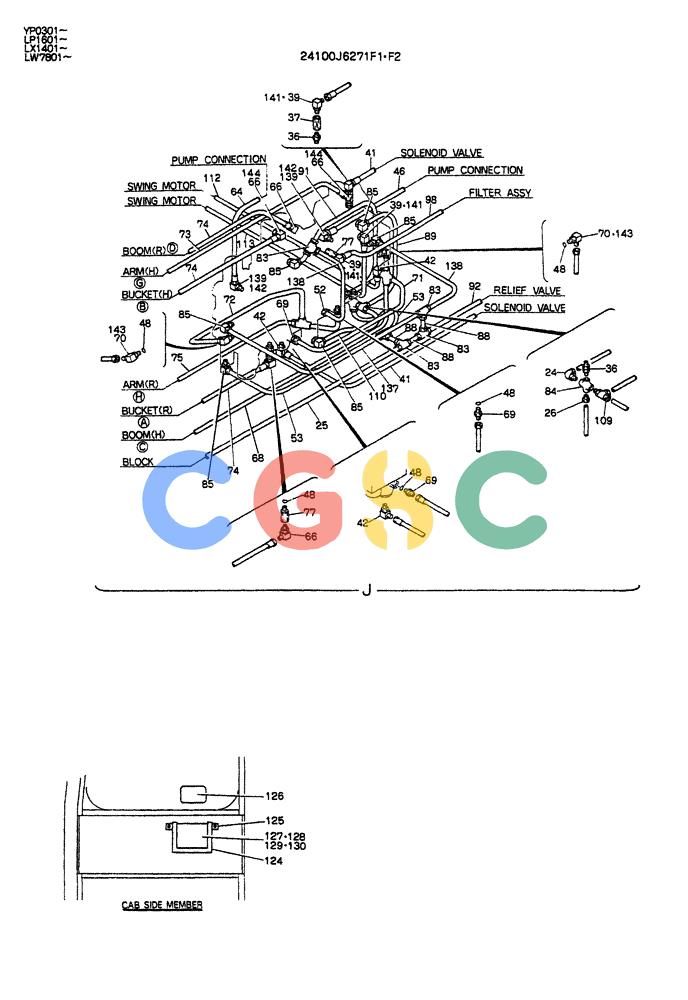

| . . | 24100J6271F1 | [1] | REMOTE-CONTROL ASSY REROTE-C0NTROL ASSY(MULTI) YP0301-, Serial Range: -YP0429 | REMOTE-CONTROL ASSY REROTE-C0NTROL ASSY(MULTI) YP0301-, Serial Range: -YP0429 |
| 1. | R18P0168D49 | [1] | HOSE | HOSE |
| . . | 24100J6271F2 | [1] | REMOTE-CONTROL ASSY YP0438- to | |
| 2. | ZC15X03300 | [4] | CLIP | KOB |
| 3. | 2418P12045 | [1] | TUBE | |
| 4. | ZA23F22012 | [1] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 5. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | ZH32X06000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 7. | 2420R537D045 | [1] | HOSE,9.60mm ID x 450mm L | KOB Superseded by part number: HX21E06045DX |
| 8. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) (PF3/8) |
| 9. | 2446U230F1 | [1] | FILTER ASSY | KOB |
| 10. | ZS13C10030 | [3] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 11. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 12. | 2420T4494 | [1] | PLUG | KOB |
| 13. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 14. | 2444Z2333 | [2] | TEE | KOB |
| 15. | 2420R537D035 | [1] | HOSE,9.60mm ID x 350mm L | KOB |
| 16. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 19. | ZA23F15006 | [1] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| 20. | ZD12P01400 | [5] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 22. | 2436U1171D36 | [1] | CHECK VALVE | KOB |
| 24. | ZH31M08006 | [1] | ELBOW | KOB |
| 25. | ZX15K08180 | [1] | TUBE | KOB |
| 27. | 2436U1171D31 | [1] | CHECK VALVE | KOB |
| 28. | 2444Z2345 | [1] | 90 ELBOW | KOB90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800) |
| 29. | 2410T322 | [1] | BLOCK | |
| 30. | ZH22X04000 | [7] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 31. | 2420R349D054 | [3] | FLEXIBLE HOSE,6.35 mm ID x 540.00 mm | KOB Superseded by part number: 2420R349D055 |
| 33. | 2436U1159F1 | [1] | VALVE | KOB |
| 34. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 35. | ZW22X08000 | [6] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 36. | 2444Z2294 | [4] | HYD CONNECTOR | KOB1/4" PF x 41mm Long (Incls. (2) O-Rings ZD12P01100) |
| 37. | 2436U1171D21 | [1] | CHECK VALVE | KOB |
| 40. | 2444Z2336 | [3] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 41. | 2420R349D150 | [2] | HOSE,6.35mm ID x 1500mm L | KOBPF 1/4 |
| 39. | 2444T2503F1 | [3] | ELBOW, Serial Range: YP0301--YP0429 | ELBOW, Serial Range: YP0301--YP0429 |
| 42. | ZH32X04000 | [8] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 43. | 2420R349D065 | [1] | HOSE,650.00 mm | KOB650mm Long (25-1/2 in) Superseded by part number: HX21E04065DX |
| 44. | 2444Z2337 | [9] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 45. | 2444R941D2 | [1] | HOSE 3500mm Long (137-51/64 in) | HOSE 3500mm Long (137-51/64 in) |
| 46. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 47. | ZA23F10004 | [2] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 48. | ZD12P01100 | [10] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 49. | 2418T12646 | [1] | TUBE | KOB |
| 50. | ZA33F10004 | [1] | ELBOW | KOB |
| 51. | 2444Z2334 | [1] | TEE | KOB |
| 52. | ZH21M08004 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 53. | ZX15K08030 | [2] | FLEXIBLE HOSE | KOB |
| 54. | 2444Z2335 | [3] | CONNECTION | KOB |
| 55. | 2436U1170F1 | [1] | CONTROL VALVE | KOB |
| 56. | ZS13C06014 | [4] | CAPSCREW -- M06x1.0x14mm | |
| 57. | ZW22X06000 | [12] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 58. | 2420R349D13 | [2] | HOSE | HOSE |
| 59. | 2420R349D060 | [2] | HOSE,6.35mm ID x 700mm L | KOB600mm Long (23-5/8 in) |
| 61. | 2416P8646 | [1] | BLOCK | BLOCK |
| 62. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 63. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 64. | 2420R349D180 | [1] | HOSE,6.35mm ID x 1800mm L | KOB1800mm Long (70-7/8 in) |
| 65. | 2444T2544 | [2] | ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 67. | 2420R537D245 | [8] | FLEXIBLE HOSE,9.60mm ID x 2450mm L | KOB |
| 68. | 2420R537D225 | [2] | HOSE,9.60mm ID x 2250mm L | KOB |
| 66. | 2444Z2338 | [6] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100), Serial Range: YP0301--YP0429 |
| 69. | 2444T2523 | [2] | HYD CONNECTOR | KOB |
| . . | 2444Z2338 | [4] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100), Start Serial: YP0430- |
| 71. | 2418T12437 | [1] | TUBE | TUBE |
| 72. | 2418P11982 | [1] | TUBE | TUBE |
| 73. | 2420R537D160 | [1] | HOSE,9.60mm ID x 1600mm L | KOB |
| 74. | 2420R537D140 | [3] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB1400mm Long (55-7/64 in) |
| 75. | 2420R537D175 | [1] | FLEXIBLE HOSE,9.60mm ID x 1750mm L | KOB1750mm Long (68-57/64 in) |
| 70. | 2444T2515F1 | [2] | ELBOW ASSY YP0301-, Serial Range: -YP0429 | ELBOW ASSY YP0301-, Serial Range: -YP0429 |
| 76. | 2420R537D190 | [1] | FLEXIBLE HOSE,9.60mm ID x 1900mm L | KOB1900mm Long (74-13/16 in) Superseded by part number: HX21E06190DX |
| 77. | 2444T2524 | [4] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 79. | ZX15K08090 | [2] | FLEXIBLE HOSE | KOB |
| 80. | 2418T17282 | [1] | TUBE | |
| 81. | 2410T323 | [1] | BLOCK | KOB |
| 82. | ZS13C08040 | [2] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 83. | ZH51K08000 | [5] | TEE | KOB |
| 84. | 2444T2525 | [1] | CROSS | KOB |
| 85. | ZH31M08004 | [6] | ELBOW | KOB |
| 87. | ZS23C06012 | [8] | SCREW,Hex Socket Head, M6 x 12mm | KOBM06x1.0x12mm |
| 88. | ZX15K08005 | [4] | TUBE | KOB |
| 89. | ZX15K08045 | [1] | TUBE | KOB |
| 91. | ZX15K08067 | [1] | TUBE | KOB |
| 92. | ZX15K08100 | [1] | TUBE | KOB |
| 93. | 2420T3483 | [5] | GROMMET | KOB |
| 86. | 2436U1169F1 | [2] | PILOT VALVE | KOB, Serial Range: YP0301--YP0429 |
| 94. | 2432Z290 | [20] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 95. | 2420R564 | [1] | GROMMET | KOB |
| 96. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 97. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 98. | 2420R349D075 | [1] | HOSE | KOB750mm Long (29-1/2 in) Superseded by part number: 2444R3019D3 |
| 99. | ZA33F15006 | [3] | ELBOW | KOB |
| 100. | 2436R680F2 | [1] | VALVE PRESSURE RELIE | KOB |
| 101. | ZS18C08055 | [2] | CAPSCREW,Hex, M8 x 55mm | KOBSCREW M08x1.25x55mm |
| 102. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 103. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400) |
| 104. | 2418P12044 | [1] | TUBE | TUBE |
| 105. | ZX15K08135 | [1] | TUBE | KOB |
| 106. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 107. | ZH52X04000 | [1] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 109. | 2444T2501D1 | [1] | TEE | KOB |
| 110. | ZX15K08019 | [1] | TUBE | KOB |
| 111. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 112. | 2420R349D15 | [1] | HOSE | KOB Superseded by part number: 2420R349D090 |
| 113. | 2420R349D130 | [1] | FLEXIBLE HOSE | KOB1/4" PF, 1300mm Long (51-3/16 in) |
| 116. | 2432T1663D1 | [1] | BAND (A) | |
| 117. | 2432T1663D2 | [1] | BAND (B) | |
| 118. | 2432T1663D3 | [1] | BAND (C) | |
| 119. | 2432T1663D4 | [1] | BAND (D) | |
| 120. | 2432T1663D5 | [1] | BAND (E) | |
| 121. | 2432T1663D6 | [1] | BAND (F) | |
| 122. | 2432T1663D7 | [1] | BAND (G) | |
| 123. | 2432T1663D8 | [1] | BAND (H) | |
| 124. | 2416P6767 | [1] | BRACKET | |
| 125. | ZS32T40010 | [2] | SCREW | KOBM04x10mm Self-Taper |
| 126. | 2432T1820 | [1] | LABEL | |
| 127. | 2432N1034 | [1] | PLATE | KOB |
| 128. | 2432N1035 | [1] | PLATE, INSTRUCTION | PLATE, INSTRUCTION |
| 129. | 2432N1036 | [1] | PLATE, INSTRUCTION | PLATE, INSTRUCTION |
| 130. | 2432N1037 | [1] | PLATE | KOB |
| 131. | R44P0086D4 | [8] | CONNECTOR | CONNECTOR |
| 132. | ZH22Z06008 | [8] | CONNECTOR | CONNECTOR |
| 133. | 2444R515D3 | [8] | CONNECTOR | CONNECTOR |
| 134. | ZH22X06008 | [8] | HYD CONNECTOR | KOB3/8"PFx1/2"PFx42.5mm Long (Incls. O-Ring ZD12P02400) |
| 135. | ZA23F10006 | [1] | HYD CONNECTOR | KOB |
| 136. | 2418T17281 | [1] | TUBE | |
| 137. | ZX15K08070 | [1] | FLEXIBLE HOSE | KOB |
| 138. | ZX15K08040 | [2] | PLASTIC-RUBBER TUBE | KOB |
| 139. | 2444T2503F2 | [2] | ELBOW ASSY, Serial Range: YP0301--YP0429 | ELBOW ASSY, Serial Range: YP0301--YP0429 |
| 140. | 2418Z560D4 | [1] | HOSE, Serial Range: YP0301--YP0508 | |
| 141. | 2444Z2447F1 | [3] | ELBOW UNION | KOBUnion Elbow YP0430- to |
| 142. | 2444Z2447F2 | [2] | 90 ELBOW | KOBYP0430- to |
| 143. | 2444Z2443F1 | [2] | ELBOW ASSY YP0430- to | |
| 144. | 2444Z2384 | [2] | ELBOW YP0430- to | ELBOW YP0430- to |
| 145. | 2436U1169F2 | [2] | VALVE,PILOT YP0430- to | |
