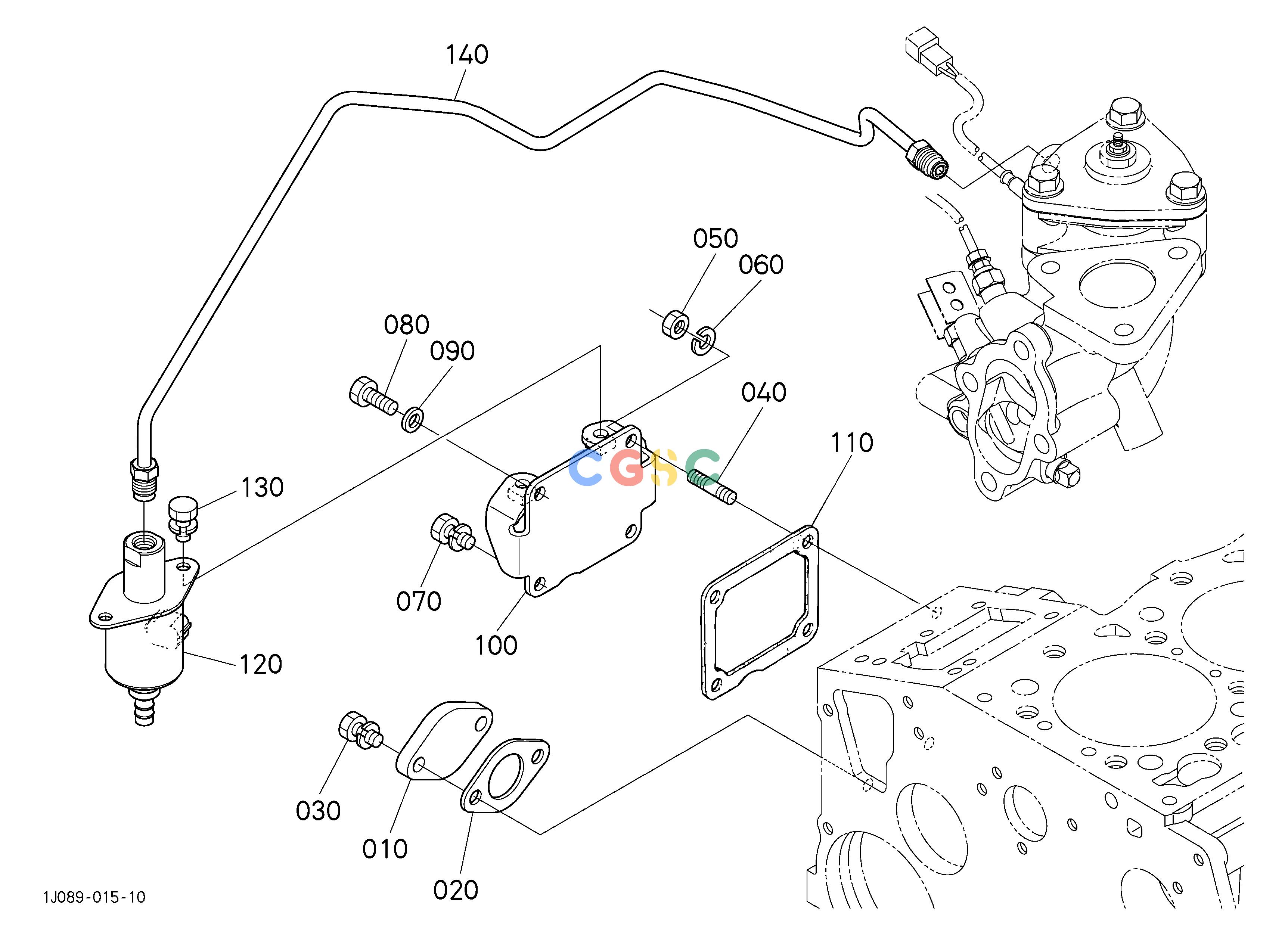

久保田零件查询531000 FUEL PUMP (DOSER) ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1624156253
|
[1] |
COVER,FORK LEV.SHAFT
|
0.0550(lbs); 0.025
|
| 020. |
1629956260
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 030. |
0102350612
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 040. |
1624591540
|
[2] |
STUD
|
0.0110(lbs); 0.005
|
| 050. |
0205650060
|
[2] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[2] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 070. |
0102350612
|
[1] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 080. |
0105350616
|
[1] |
HEX.BOLT
|
0.0110(lbs); 0.005
|
| 090. |
1560196650
|
[1] |
PACKING
|
0.0022(lbs); 0.001
|
| 100. |
1J05052510
|
[1] |
BRACKET(PUMP)
|
0.0000(lbs); 0.000
|
| 100. |
1J05052512
|
[1] |
BRACKET(PUMP)
|
0.4400(lbs); 0.200
|
| 110. |
1626457210
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 120. |
1J05018030
|
[1] |
PUMP
|
0.7216(lbs); 0.328
|
| 130. |
0102350612
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 140. |
1J05052520
|
[1] |
PIPE(2,DOUBLE FLARE)
|
0.1870(lbs); 0.085
|
