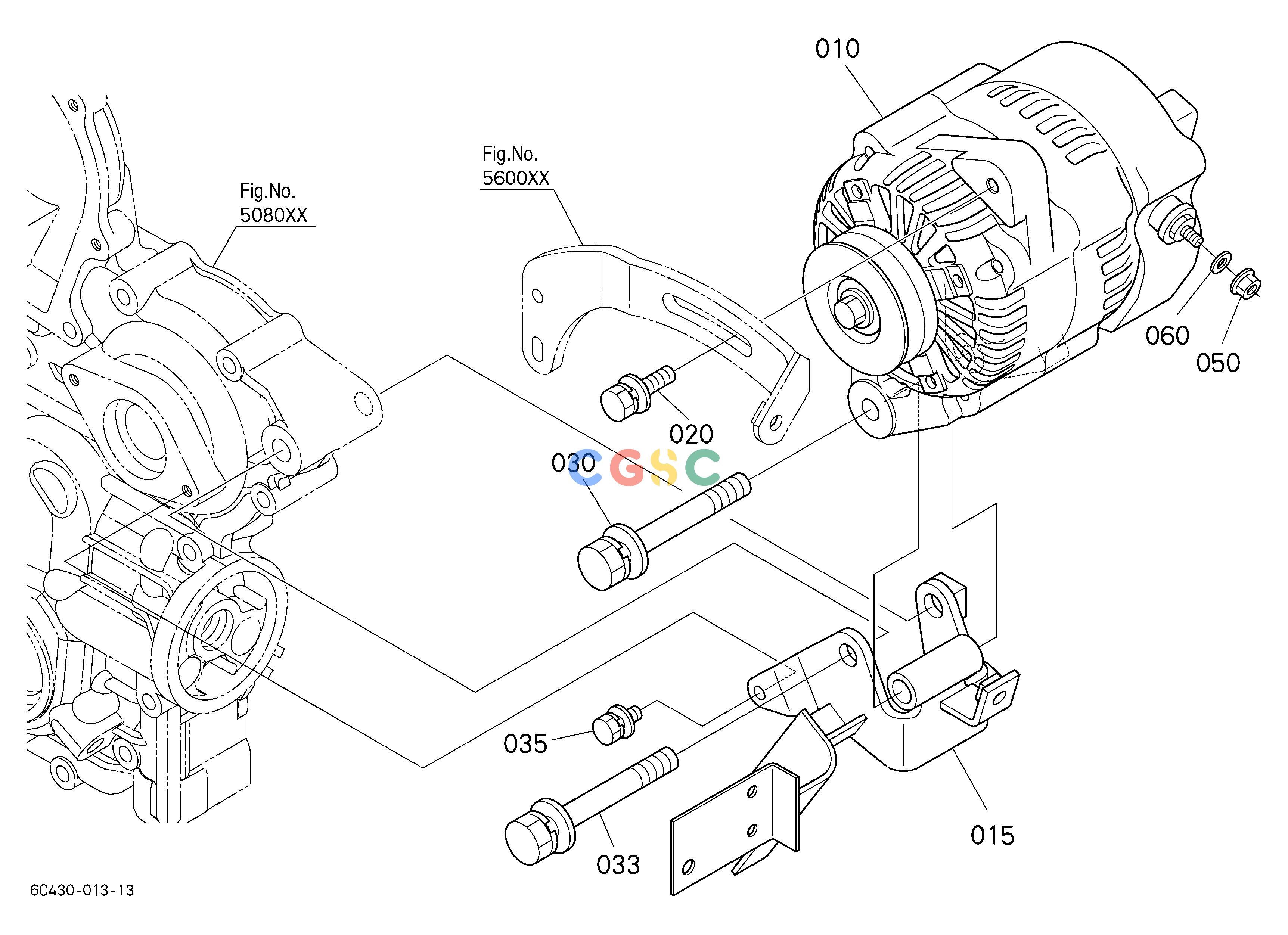

久保田零件查询A51500 ALTERNATOR ## NOTE:[CANADA SPEC]ORDER BY REF.No.010 NEW PART. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J08964010
|
[1] |
ALTERNATOR,ASSY(75A)
|
0.0000(lbs); 0.000
|
| 010. |
1J08964012
|
[1] |
ALTERNATOR,ASSY(75A)
|
10.0100(lbs); 4.550
|
| 010. |
1J08964013
|
[1] |
ALTERNATOR,ASSY(75A)
|
10.0100(lbs); 4.550
|
| 015. |
6C43058670
|
[1] |
STAY(ALTERNATOR)
|
0.8690(lbs); 0.395
|
| 015. |
6C43058672
|
[1] |
STAY(ALTERNATOR)
|
0.8250(lbs); 0.375
|
| 020. |
0112750830
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 030. |
0113551080
|
[2] |
BOLT,W SEMS
|
0.1320(lbs); 0.060
|
| 030. |
0113551085
|
[1] |
BOLT,W SEMS
|
0.6050(lbs); 0.275
|
| 033. |
0113551080
|
[1] |
BOLT,W SEMS
|
0.1320(lbs); 0.060
|
| 035. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 050. |
0202150060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0401350060
|
[1] |
WASHER, PLAIN
|
0.0022(lbs); 0.001
|
