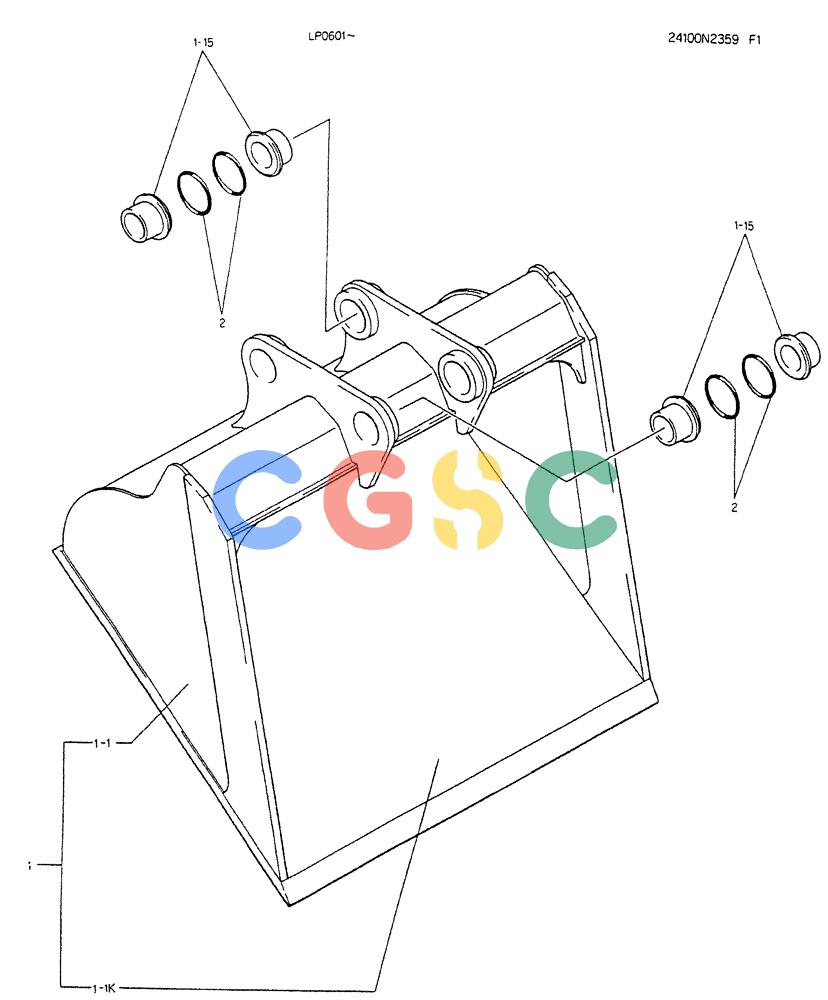

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100N2359F1 | [1] | BUCKET ASSY | |
| 1. | 2412J512F1 | [1] | BUCKET | |
| 1-1. | 2412J512 | [1] | BUCKET | |
| 1-1K. | 2412T515 | [1] | PLATE | |
| 1-15. | 2405T869 | [4] | BUSHING | KOB |
| 2. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
广数供应链运营团队, 15 02月, 2025，浏览： 388 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100N2359F1 | [1] | BUCKET ASSY | |
| 1. | 2412J512F1 | [1] | BUCKET | |
| 1-1. | 2412J512 | [1] | BUCKET | |
| 1-1K. | 2412T515 | [1] | PLATE | |
| 1-15. | 2405T869 | [4] | BUSHING | KOB |
| 2. | 2445Z869 | [4] | O-RING,9mm Thk x 115mm ID | KOBID 115 ± 0.40 x OD 133mm |
