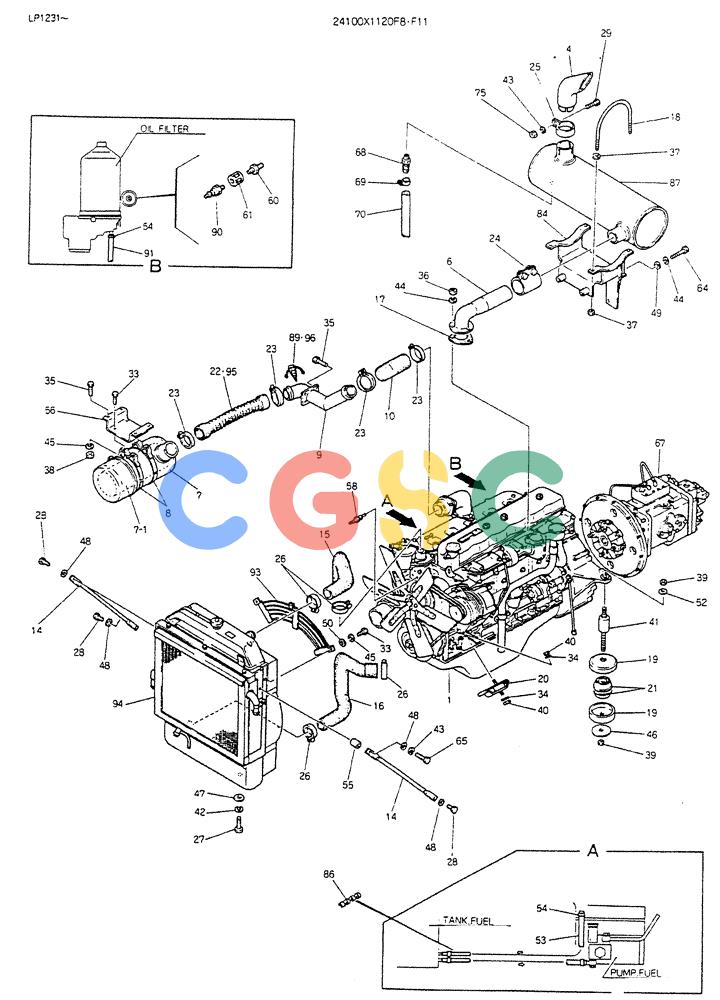

| . . | 24100X1120F8 | [1] | POWER-PLANT ASSY, Serial Range: LP0115-LP0116 | |
| . . | 24100X1120F11 | [1] | POWER-PLANT ASSY, Serial Range: YP0117-LP1429 | |
| 1. | 2451U186F1 | [1] | ENGINE | KOB |
| 4. | 2418T7539 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 6. | 2418P7070 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 7. | 2446R150D4 | [1] | AIR CLEANER | |
| 7-1. | 2446R150D4S1 | [1] | AIR CLEANER | KOB Superseded by part number: 2451U125-3 |
| 8. | 2432Z162D4 | [2] | BAND | KOBBRACKET. MTG |
| 9. | 2418N1916 | [1] | PIPE | |
| 10. | 2444Z1600D2 | [1] | ELBOW | KOB90° |
| 14. | B16P0291D5 | [2] | STAV | |
| 15. | 2444T1919 | [1] | HOSE | KOB |
| 16. | 2444P681 | [1] | HOSE | KOB |
| 17. | 2420Z801 | [1] | GASKET | KOB Superseded by part number: 77254536, 1141450690 |
| 18. | 2420T2409 | [2] | U-BOLT | KOB |
| 19. | 2414T1446 | [4] | COVER | COVER |
| 20. | 2416R218 | [2] | CUSHION | KOB |
| 21. | 2416R217 | [4] | CUSHION | KOB |
| 22. | 2444T1766D1 | [1] | FLEXIBLE HOSE | KOB, Serial Range: YP0115-YP0116 Superseded by part number: 2444R924D1 |
| 23. | 2432Z163D3 | [4] | CLAMP | KOB |
| 24. | 2432T818 | [1] | CLAMP | KOB |
| 25. | 2432T1318 | [1] | CLAMP | KOB |
| 26. | ZC15X06000 | [4] | CLIP | KOB |
| 27. | ZS11C16035 | [2] | SCREW,Hex, M16 x 35mm, Cl 4.8 | KOBM16x2.0x35mm |
| 28. | ZM11C12030 | [3] | SCREW | KOBM12x1.75x30mm (Incls. Lockwasher) Superseded by part number: ZM12C12030 |
| 29. | ZS16C12040 | [1] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 33. | ZS16C08016 | [7] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 34. | R16T0152D1 | [4] | WASHER | KOBFlat -- ID 13 x OD 24 x Th 3.2mm |
| 35. | ZM11C10020 | [8] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
| 36. | ZN12F10008 | [3] | NUT | KOB Superseded by part number: 77276130, ZN18F10008 |
| 37. | ZN16C10008 | [8] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 38. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 39. | ZN12C16013 | [4] | NUT | KOBM16x2.0mm |
| 40. | ZN17F12010 | [4] | NUT | NUT |
| 41. | 2420P1361 | [2] | BOLT, COUPLING | BOLT, COUPLING |
| 42. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 43. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 44. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 45. | ZW26X08000 | [7] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 46. | R16T0152D10 | [2] | WASHER, Serial Range: YP0115-YP0116 | |
| 47. | ZW11X16000 | [2] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 48. | ZW16X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 49. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 50. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 52. | R16T0152D2 | [2] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 53. | 4018Z1D5 | [2] | HOSE | HOSE |
| 54. | ZC15X01300 | [5] | CLIP | KOB |
| 55. | 2418T7497D2 | [1] | SPACER | |
| 56. | 2416P5906 | [1] | BRACKET | |
| 58. | 2489R148 | [1] | SENDER UNIT | KOB |
| 60. | ZG21E02000 | [1] | HYD CONNECTOR | KOB |
| 61. | ZG21U02000 | [1] | HYD CONNECTOR | KOB |
| 64. | ZS13F10055 | [2] | SCREW | KOB |
| 65. | ZS18C12070 | [1] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 67. | 24100N2039F2 | [1] | PUMP CONNECT | PUMP CONNECT |
| 68. | 2444Z1293D8 | [1] | LUBE NIPPLE | KOB1/4"PTx43mm Long Superseded by part number: R44T0022 |
| 69. | ZC15X01300 | [1] | CLIP | KOB |
| 70. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 75. | ZN16C12010 | [1] | NUT | KOB Superseded by part number: ZN18C12010 |
| 84. | 2416N2739 | [1] | BRACKET | BRACKET |
| 86. | 2414Z199D025 | [1] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 87. | 2427U303 | [1] | MUFFLER | KOB |
| 89. | 2479R686F1 | [1] | INDICATOR, Serial Range: LP1231-LP1344 | INDICATOR, Serial Range: LP1231-LP1344 |
| 90. | 2489U234 | [1] | THERMOSTAT | KOB Superseded by part number: VI5824100122 |
| 91. | 4018Z1D3 | [1] | HOSE | KOB |
| 93. | 2414P2939 | [1] | GUARD, FAN | |
| 94. | 2452U202F3 | [1] | RADIATOR ASSY | RADIATOR ASSY |
| 95. | 2444R924D1 | [1] | FLEXIBLE HOSE | KOB, Start Serial: LP1429 |
| 96. | 2479R686F2 | [1] | INDICATOR, Start Serial: YP0115 | INDICATOR, Start Serial: YP0115 |
