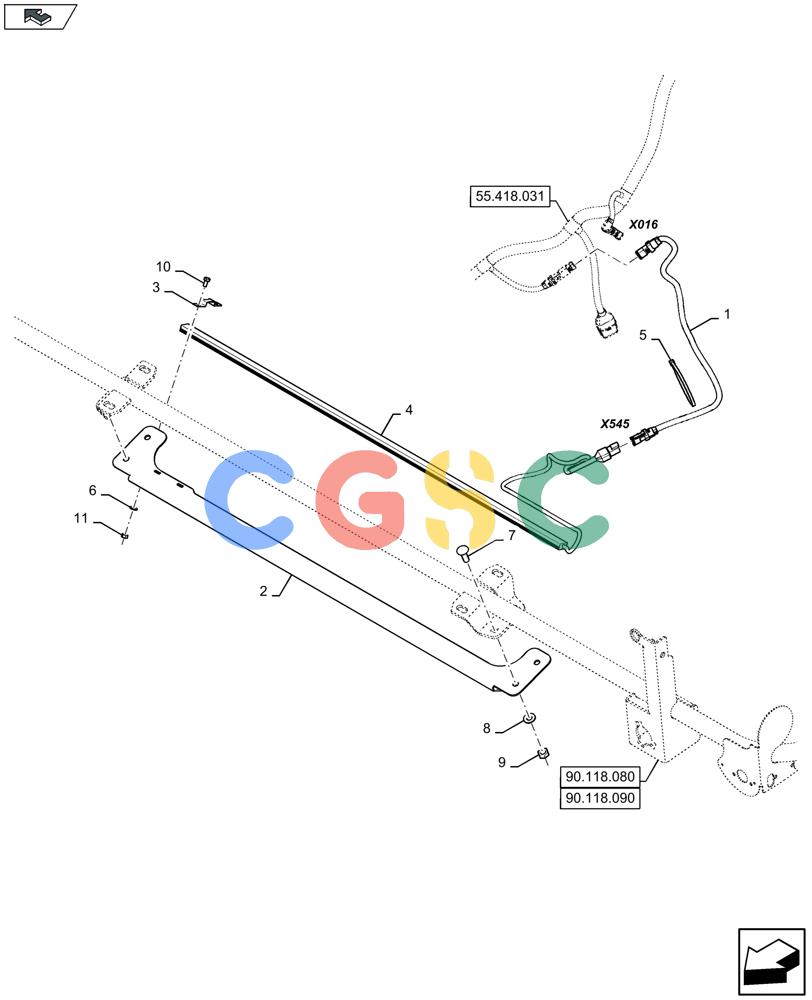

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.404.055) - PICK-UP LIGHT, LED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47966400
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
48003577
|
[1] |
MOUNTING PLATE
|
ZED
|
| 3. |
47533109
|
[2] |
SUPPORT
|
ZED
|
| 4. |
47608249
|
[1] |
STRIP
|
ZED
|
| 5. |
86566990
|
[9] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 6. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 8. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 9. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
86977726
|
[4] |
BOLT,Hex, M6 x 12mm, Cl 8.8
|
ZED
|
| 11. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
