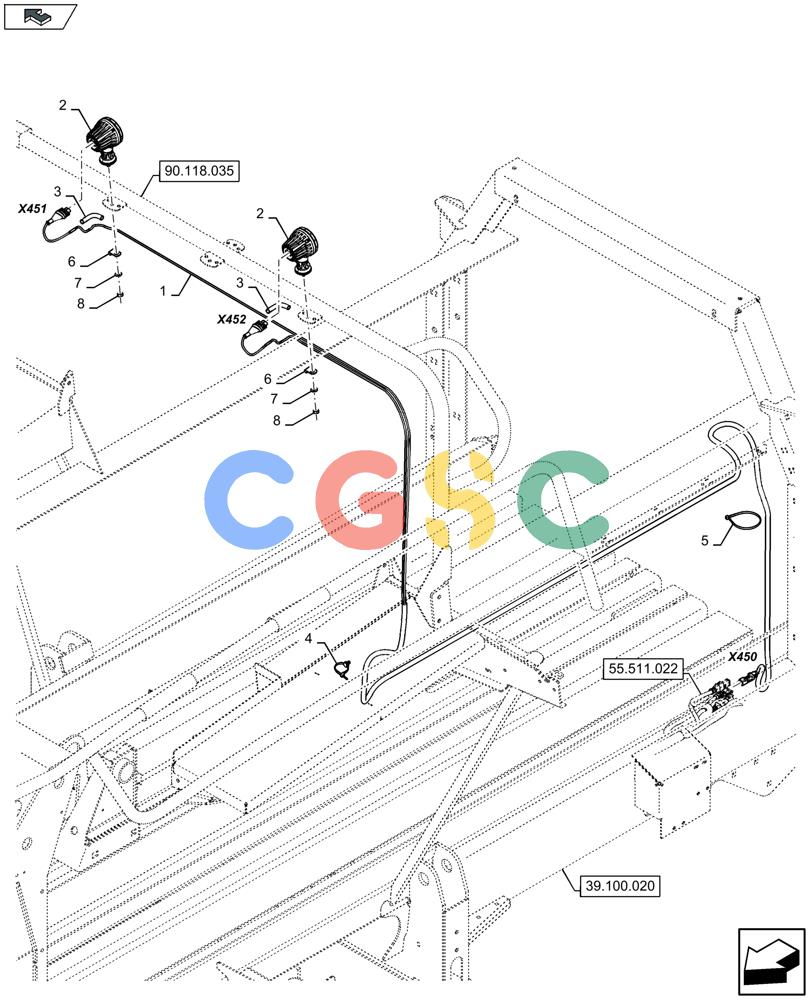

凯斯零件查询(LB424S XL) - BALER (11/16-) (55.404.060) - REAR WORK LIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47966384
|
[1] |
WIRE HARNESS
|
ZED
|
| 2. |
47744103
|
[2] |
WORK LAMP
|
ZED
|
| 3. |
47427651
|
[2] |
CONDUIT
|
CUR
|
| 4. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 5. |
86566990
|
[18] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 6. |
853765
|
[2] |
CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 7. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 8. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
