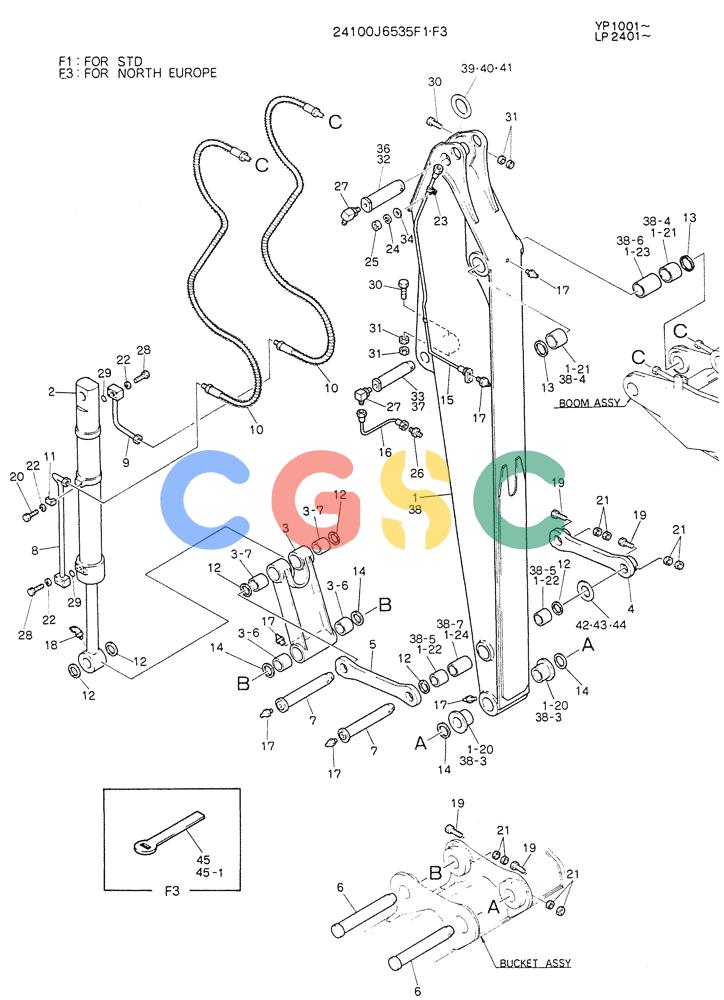

| . . | 24100J6535F1 | [1] | ARM ASSY,3.0M | |
| 1. | 2411J2780F1 | [1] | ARM | ARM |
| 1-20. | 2405P472 | [2] | BUSHING | KOBID 65 x OD 80 x 75mm Long, Flange OD 130 |
| 1-21. | 2405T823 | [2] | BUSHING | KOBID 70 x OD 85 x 70mm Long |
| 1-22. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 1-23. | 2418T10839 | [1] | SPACER | KOB |
| 1-24. | 2418T10838 | [1] | SPACER | KOB |
| 2. | 2438U974F1 | [1] | CYLINDER, BUCKET | CYLINDER, BUCKET |
| 3. | 2406N795F1 | [1] | LINK CONROD | KOB |
| 3-6. | 2405T825 | [2] | BUSHING | KOBID 65 x OD 80 x 60mm Long |
| 3-7. | 2405T824 | [2] | BUSHING | KOBID 60 x OD 75 x 69mm Long |
| 4. | 2406P3901D1 | [1] | LINK | KOB |
| 5. | 2406P3901D2 | [1] | LINK | KOB |
| 6. | 2419P1643 | [2] | PIN | KOB |
| 7. | 2419P1683D1 | [2] | PIN | KOB Superseded by part number: LQ12B01205P1 |
| 8. | 2418P10045D2 | [1] | TUBE | KOB917mm Long (36-7/64 in) |
| 9. | 2418P10046D2 | [1] | RIGID TUBE | KOB145mm Long (5-45/64 in) |
| 10. | 2444Z2879D6 | [2] | FLEXIBLE HOSE | KOB, Serial Range: LP2401--LP2511 |
| . . | 2444Z2879D14 | [2] | FLEXIBLE HOSE | KOB, Start Serial: LP2512- Superseded by part number: 2444R1169D4 |
| 11. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 12. | 2445R138D3 | [6] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 13. | 2445R138D6 | [2] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 14. | 2445R220D2 | [4] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| 15. | 2420R349D170 | [1] | FLEXIBLE HOSE | KOB1700mm Long (66-59/64 in) Superseded by part number: HX21E04170DX |
| 16. | 2420R349D035 | [1] | HOSE | KOB350mm Long (13-49/64 in) |
| 17. | ZG91S02000 | [7] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 18. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 19. | ZS13C14120 | [4] | SCREW | KOBM14x2.0x120mm Superseded by part number: ZS18C14120 |
| 20. | ZS13C10045 | [1] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 21. | ZN13C14011 | [8] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 22. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 23. | ZC45X11009 | [2] | CLIP | KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009 |
| 24. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 25. | ZN13C06005 | [2] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 26. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZH32Z04002 | [2] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 28. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 29. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 30. | ZS13C12130 | [2] | SCREW | KOBM12x1.75x130mm Superseded by part number: ZS18C12130 |
| 31. | ZN13C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 32. | 2419P2617 | [1] | PIN | KOBOD 70 x 232mm Long Superseded by part number: 2419P4038D1 |
| 33. | 2419P2581 | [1] | PIN | KOB |
| 34. | ZW11X06000 | [2] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 39. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 40. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 41. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 42. | B16T0442D27 | [3] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| 43. | B16T0442D19 | [3] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| 44. | B16T0442D20 | [3] | SHIM,100mm OD x 62mm ID x 2.3mm Thk | KOBID 62 x OD 100 x Th 2.3mm |
