神钢零件查询(K907CLC) - EXCAVATOR BTW YG0101 - YG0500 (1/85-12/03) (08-006) - REWORK POWER PLANT (P/N-24100J6016F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
149 次

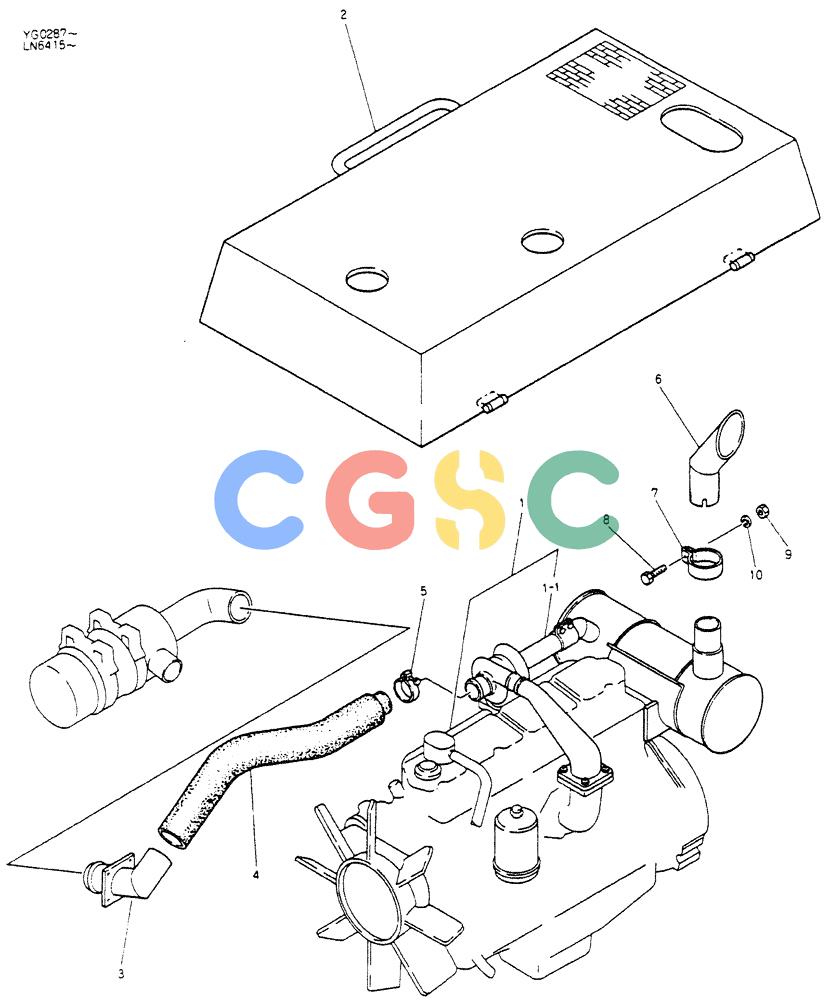

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6016F1 | [1] | POWER-PLANT ASSY | |
| 1. | 24100P1092F1 | [1] | ENGINE | |
| 1-1. | 2451U301 | [1] | TURBO-CHARGER KIT | |
| 2. | 2414P3842 | [1] | COVER | |
| 3. | 2418N2236 | [1] | PIPE | PIPE |
| 4. | 2444R921 | [1] | FLEXIBLE HOSE | KOB |
| 5. | 2432Z163D3 | [1] | CLAMP | KOBHOSE |
| 6. | 2427P1824 | [1] | PIPE | KOB |
| 7. | 2432T2241F2 | [1] | CLAMP ASSY | |
| 8. | ZS13C10035 | [2] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 9. | ZN12C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 10. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
