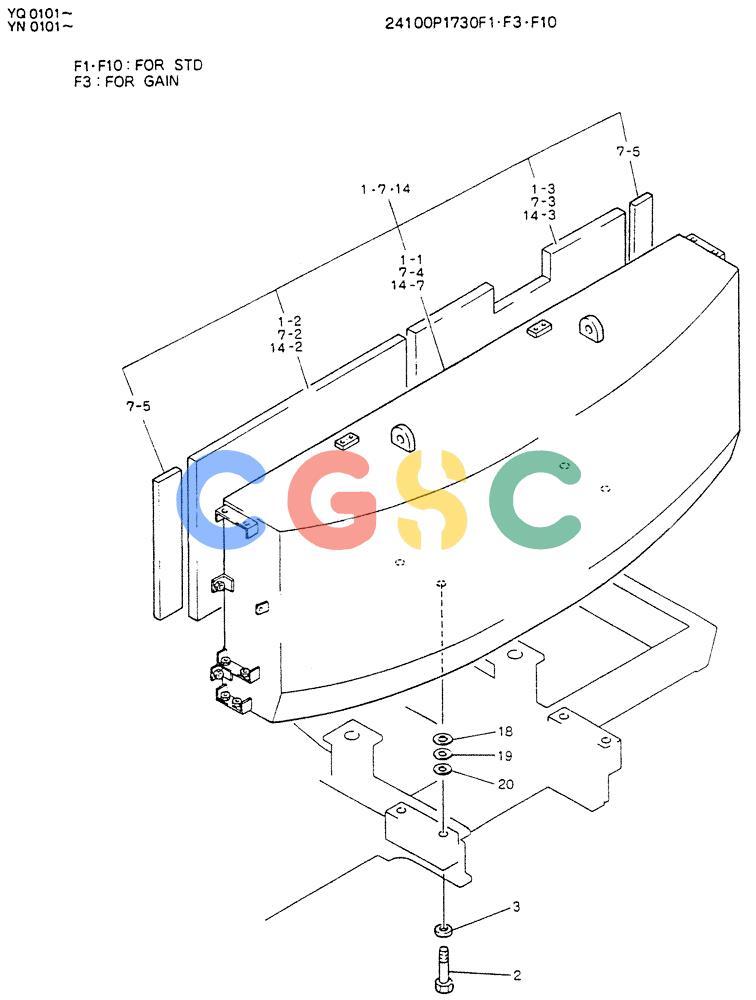

神钢零件查询(K907LC) - MARK II EXCAVATOR BTW YQ0101 - YQ0564 (1/87-12/03) (01-002) - COUNTER WEIGHT ASSY 24100P1730F1,F10 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1730F1 | [1] | COUNTER-WEIGHT ASSY, Serial Range: YQ0101-YQ0293 | |
| . . | 24100P1730F10 | [1] | COUNTER-WEIGHT ASSY, Start Serial: YQ0294 | |
| 1. | 24100P1766F1 | [1] | COUNTER-WEIGHT ASSY, Serial Range: YQ0101-YQ0293 | |
| 1-1. | 2422J1879 | [1] | COUNTERWEIGHT | COUNTERWEIGHT |
| 1-2. | 2427T888 | [1] | INSULATION, SOUND | |
| 1-3. | 2427T889 | [1] | INSULATION, SOUND | |
| 2. | ZS13C24180 | [4] | CAP | KOB |
| 3. | ZW13H24000 | [4] | WASHER | KOBID 24 x OD 39 x Th 4.0mm |
| 14. | 24100P1766F4 | [1] | COUNTER-WEIGHT ASSY, Start Serial: YQ0294 | |
| 14-2. | 2427T888 | [1] | INSULATION, SOUND | |
| 14-3. | 2427T889 | [1] | INSULATION, SOUND | |
| 14-7. | 2422J1879D2 | [1] | COUNTER-WEIGHT | |
| 18. | 2418T12306D2 | [2] | SHIM | KOB0.6 |
| 19. | 2418T12306D3 | [2] | SHIM | KOB0.4 |
| 20. | 2418T12306D6 | [2] | SHIM | KOB1.6 |
