神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (01-002[01]) - COUNTER WEIGHT, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
470 次

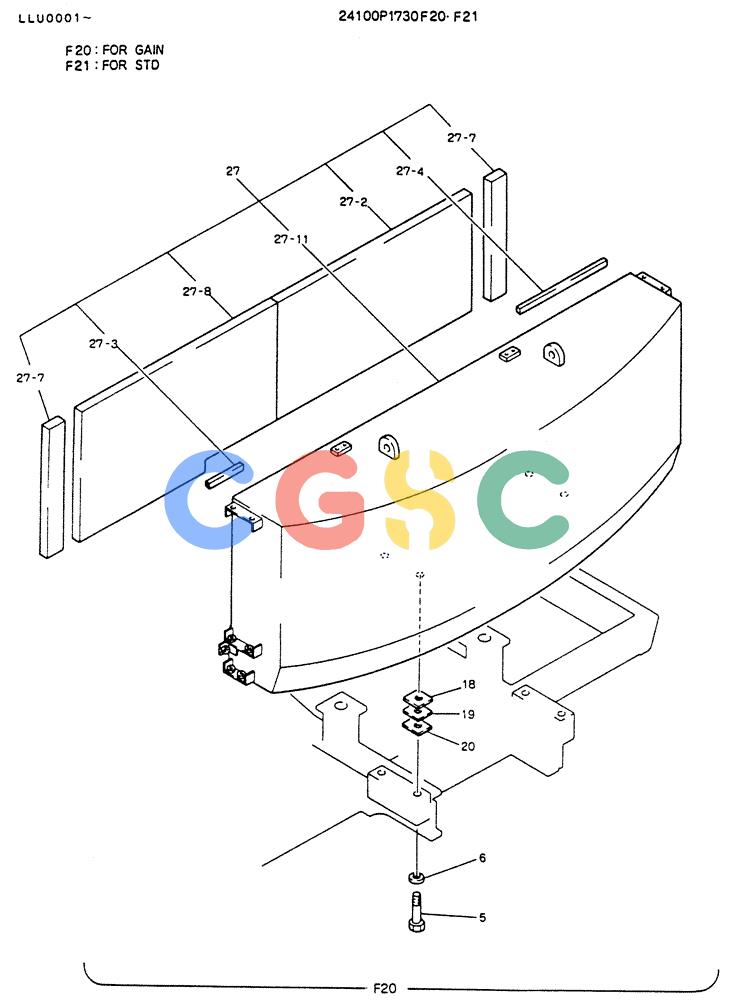

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1730F20 | [1] | COUNTER-WEIGHT ASSY | |
| 5. | R20T0040D12 | [4] | SCREW | KOBCAP |
| 6. | ZW13H30000 | [4] | WASHER | KOB |
| 18. | 2418T12306D2 | [2] | SHIM | KOB0.6 |
| 19. | 2418T12306D3 | [2] | SHIM | KOB0.4 |
| 20. | 2418T12306D6 | [2] | SHIM | KOB1.6 |
| 27. | 24100P1734F6 | [1] | COUNTER-WEIGHT ASSY | |
| 27-2. | 2479T1735 | [1] | INSULATION, SOUND | |
| 27-3. | 2416Z490D15 | [1] | RUBBER, CUSHION | |
| 27-4. | 2416Z490D4 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 27-7. | 2427T1837 | [2] | INSULATION, SOUND | INSULATION, SOUND |
| 27-8. | 2427T1846 | [1] | INSULATION, SOUND | |
| 27-11. | 2422J1935D2 | [1] | COUNTER-WEIGHT | |
