神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (01-002[02]) - COUNTER WEIGHT, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
113 次

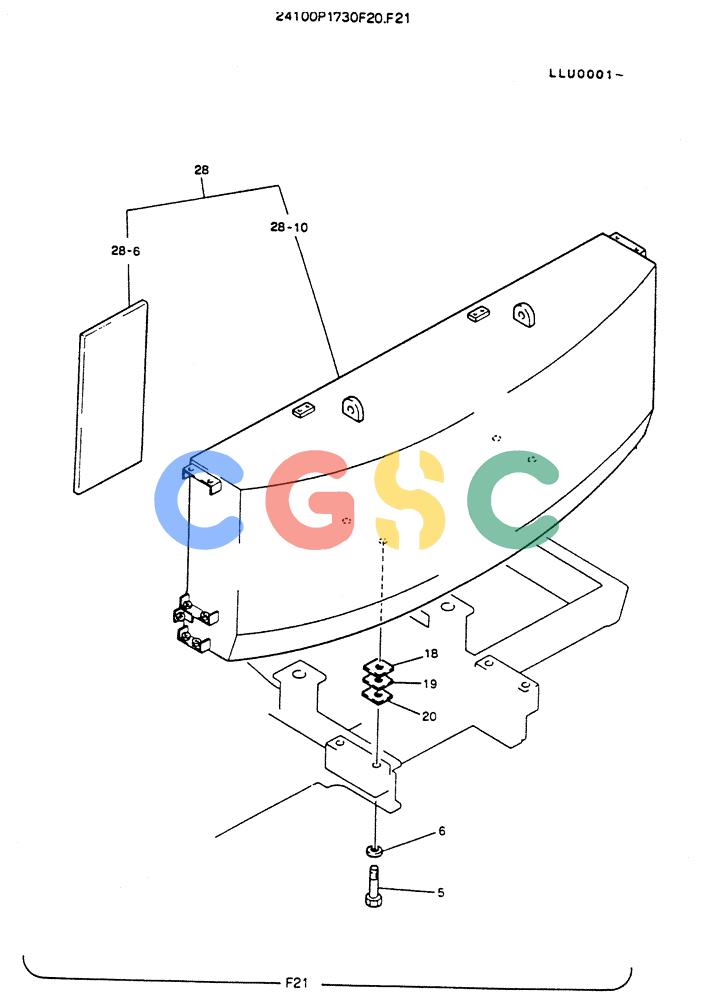

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1730F21 | [1] | COUNTER-WEIGHT ASSY | |
| 5. | R20T0040D12 | [4] | SCREW | KOBCAP |
| 6. | ZW13H30000 | [4] | WASHER | KOB |
| 18. | 2418T12306D2 | [2] | SHIM | KOB0.6 |
| 19. | 2418T12306D3 | [2] | SHIM | KOB0.4 |
| 20. | 2418T12306D6 | [2] | SHIM | KOB1.6 |
| 28. | 24100P1734F7 | [1] | COUNTER-WEIGHT ASSY | |
| 28-6. | 2479T1722 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 28-10. | 2422J1883D2 | [1] | COUNTER-WEIGHT | |
