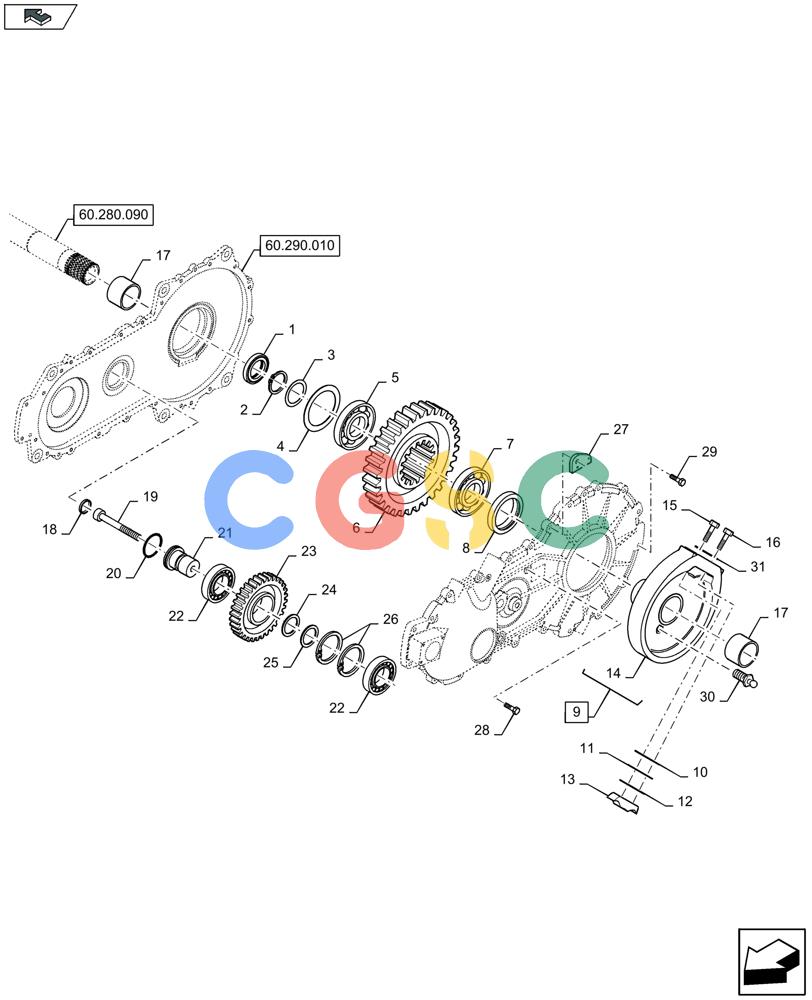

凯斯零件查询(LB424S XL) - BALER (11/16-) (60.290.020) - SHUTTLE FEEDER, GEARBOX, REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84100740
|
[1] |
SEALING RING,100mm ID x 130mm OD x 13mm Thk
|
ZED
|
| 2. |
370010
|
[1] |
SNAP RING,M100, External
|
ZED
|
| 3. |
84100752
|
[1] |
SHIM
|
ZED
|
| 4. |
84100753
|
[1] |
SHIM KIT
|
ZED
|
| 5. |
84100741
|
[1] |
BALL BEARING,100mm ID x 150mm OD x 16mm W
|
ZED
|
| 6. |
84100742
|
[1] |
GEAR
|
ZED
|
| 7. |
84100711
|
[1] |
BALL BEARING,110mm ID x 170mm OD x 19mm W
|
ZED
|
| 8. |
84100712
|
[1] |
SEAL
|
ZED
Superseded by part number: 920018147
|
| 9. |
84100713
|
[1] |
FLANGE
|
ZED
Incl 10 - 16
|
| 10. |
84100757
|
[2] |
SHIM,0.5mm Thk
|
ZED
|
| 11. |
84100756
|
[1] |
SHIM,0.4mm Thk
|
ZED
|
| 12. |
84100755
|
[1] |
SHIM,0.3mm Thk
|
ZED
|
| 13. |
87336142
|
[1] |
INSERT
|
ZED
|
| 14. |
84100759
|
[1] |
FLANGE
|
ZED
|
| 15. |
84100754
|
[1] |
BOLT,M10 x 40mm
|
ZED
|
| 16. |
86629541
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 17. |
84100714
|
[2] |
BUSHING,70 mm ID x 75 mm OD x 40 mm
|
ZED
Superseded by part number: 397585
|
| 18. |
84100748
|
[1] |
INTRODUCTION CAP
|
ZED
|
| 19. |
84100738
|
[1] |
BOLT
|
ZED
|
| 20. |
84100736
|
[1] |
O-RING
|
ZED
|
| 21. |
84100737
|
[1] |
PIN
|
ZED
|
| 22. |
84100716
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 561201
|
| 23. |
84100735
|
[1] |
GEAR
|
ZED
|
| 24. |
84100739
|
[1] |
SHIM KIT
|
ZED
|
| 25. |
84100717
|
[1] |
SPACER
|
ZED
|
| 26. |
84100715
|
[2] |
CIRCLIP
|
ZED
|
| 27. |
84100751
|
[1] |
PLATE
|
ZED
|
| 28. |
84100733
|
[1] |
BOLT,Hex, M12 x 1 x 22.5mm, Cl 8.8, Full Thd
|
ZED
|
| 29. |
412217
|
[15] |
BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd
|
ZED
Superseded by part number: 73161469
|
| 30. |
62161
|
[1] |
LUBE NIPPLE,M8 x 1.25, Str
|
NH
|
| 31. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Bracket Incl in Fig. 60.290.010
|
