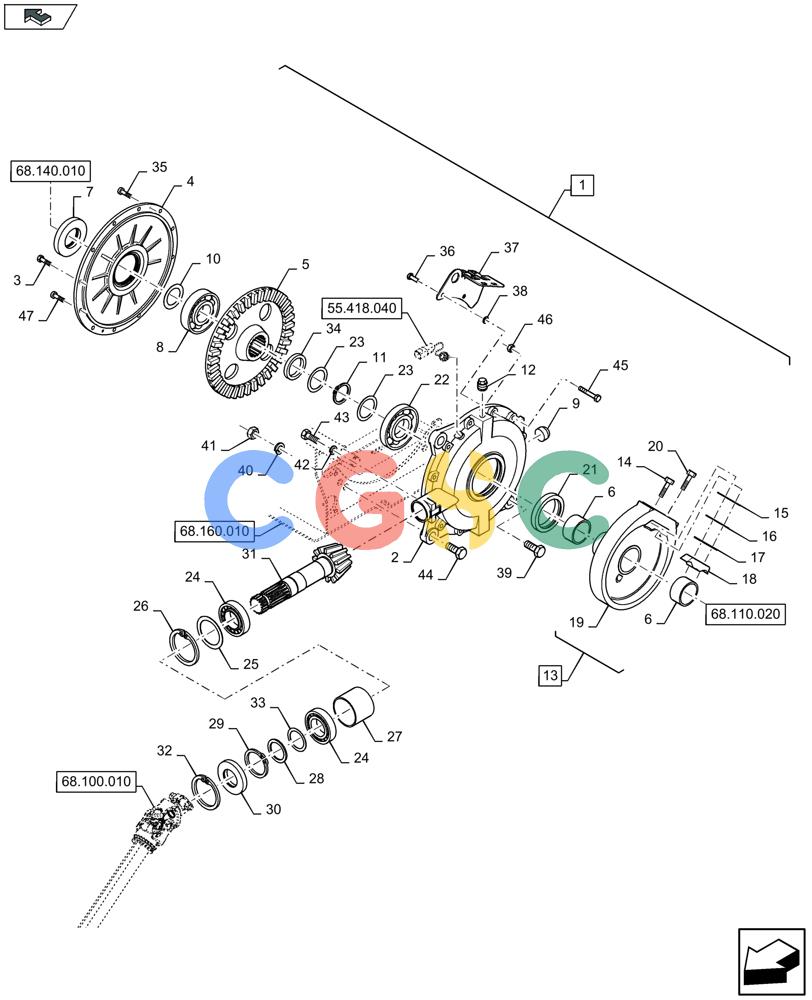

| 1. |
47373915
|
[1] |
GEARBOX
|
ZED
Incl 2 - 38, 47
|
| 2. |
84100760
|
[1] |
HOUSING
|
ZED
|
| 3. |
412256
|
[10] |
BOLT
|
SAS
Superseded by part number: 11106231
|
| 4. |
84100761
|
[1] |
HOUSING
|
ZED
|
| 5. |
84100762
|
[1] |
GEAR
|
ZED
|
| 6. |
84100763
|
[2] |
BUSHING
|
ZED
, Serial Range: -C136
|
| 6. |
47780289
|
[2] |
BUSHING
|
ZED
, Start Serial: D137
|
| 7. |
84100764
|
[1] |
SEAL
|
ZED
|
| 8. |
321951
|
[1] |
BALL BEARING,90mm ID x 140mm OD x 24mm W
|
GI
Superseded by part number: 84265402
|
| 9. |
84100744
|
[1] |
PLUG,Sight Glass, 1/2" Gas
|
ZED
|
| 10. |
84100765
|
[1] |
SHIM
|
ZED
|
| 11. |
370010
|
[1] |
SNAP RING,M100, External
|
ZED
|
| 12. |
84320005
|
[2] |
PLUG,1/2" Gas
|
ZED
, Serial Range: -C047 Superseded by part number: 322496550
|
| 12. |
47435611
|
[2] |
PLUG
|
ZED
, Start Serial: D048
|
| 13. |
84100766
|
[1] |
FLANGE
|
ZED
Incl 14 - 20
|
| 14. |
120068
|
[1] |
BOLT,Hex, M10 x 40mm, Cl 8.8
|
NH
|
| 15. |
84100755
|
[1] |
SHIM,0.3mm Thk
|
ZED
|
| 16. |
84100756
|
[1] |
SHIM,0.4mm Thk
|
ZED
|
| 17. |
84100757
|
[2] |
SHIM,0.5mm Thk
|
ZED
|
| 18. |
87336142
|
[1] |
INSERT
|
ZED
|
| 19. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Flange Assy Incl in 13
|
| 20. |
43154
|
[1] |
SEALING RING COLLAR
|
NH
Superseded by part number: 126696A1, 126696A1, 2974700, 126696A1, 2974700, 86629541, 126696A1, 2974700, 86629541, NH43154
|
| 21. |
84100767
|
[1] |
SEAL
|
ZED
|
| 22. |
84100741
|
[1] |
BALL BEARING,100mm ID x 150mm OD x 16mm W
|
ZED
|
| 23. |
84100768
|
[2] |
SHIM
|
ZED
Superseded by part number: 84100752
|
| 24. |
161715
|
[2] |
TAPERED BEARING,35 mm ID x 72 mm OD x 18.25 mm
|
NH
Superseded by part number: 87282046
|
| 25. |
84100769
|
[1] |
SHIM
|
ZED
|
| 26. |
370018
|
[1] |
SNAP RING,M72, Internal
|
NH
|
| 27. |
84100770
|
[1] |
SPACER
|
ZED
|
| 28. |
84100725
|
[1] |
SHIM,35.3mm ID x 48mm OD
|
ZED
|
| 29. |
440441
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 87016944
|
| 30. |
84100771
|
[1] |
SEAL
|
ZED
Superseded by part number: 86539169
|
| 31. |
84100772
|
[1] |
GEAR
|
ZED
|
| 32. |
84100773
|
[1] |
CIRCLIP
|
ZED
|
| 33. |
84320006
|
[1] |
SET OF RINGS
|
ZED
|
| 34. |
84100774
|
[1] |
SPACER
|
ZED
|
| 35. |
84100775
|
[2] |
BOLT
|
ZED
, Serial Range: -C136
|
| 36. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 37. |
47364516
|
[1] |
PLATE
|
ZED
, Serial Range: -C098
|
| 37. |
84320070
|
[1] |
HOOK
|
ZED
, Start Serial: D099
|
| 38. |
84429044
|
[2] |
SPRING WASHER
|
ZED
|
| 39. |
120090
|
[2] |
BOLT,Hex, M16 x 50mm, Cl 8.8
|
NH
|
| 40. |
140048
|
[3] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 41. |
86000441
|
[3] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 42. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 44. |
120091
|
[1] |
SCREW,Hex, M16 x 60mm, Cl 8.8
|
NH
Superseded by part number: 323866
|
| 45. |
120062
|
[5] |
BOLT,Hex, M8 x 70mm, Cl 8.8
|
NH
, Serial Range: -C136 Superseded by part number: 7120024
|
| 45. |
86639211
|
[5] |
BOLT,Hex, M8 x 65mm, Cl 10.9
|
FAR
, Start Serial: D137 Superseded by part number: 627-8065
|
| 46. |
86629542
|
[5] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 47. |
14301821
|
[1] |
HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd
|
MKT
Superseded by part number: 14301824
|
