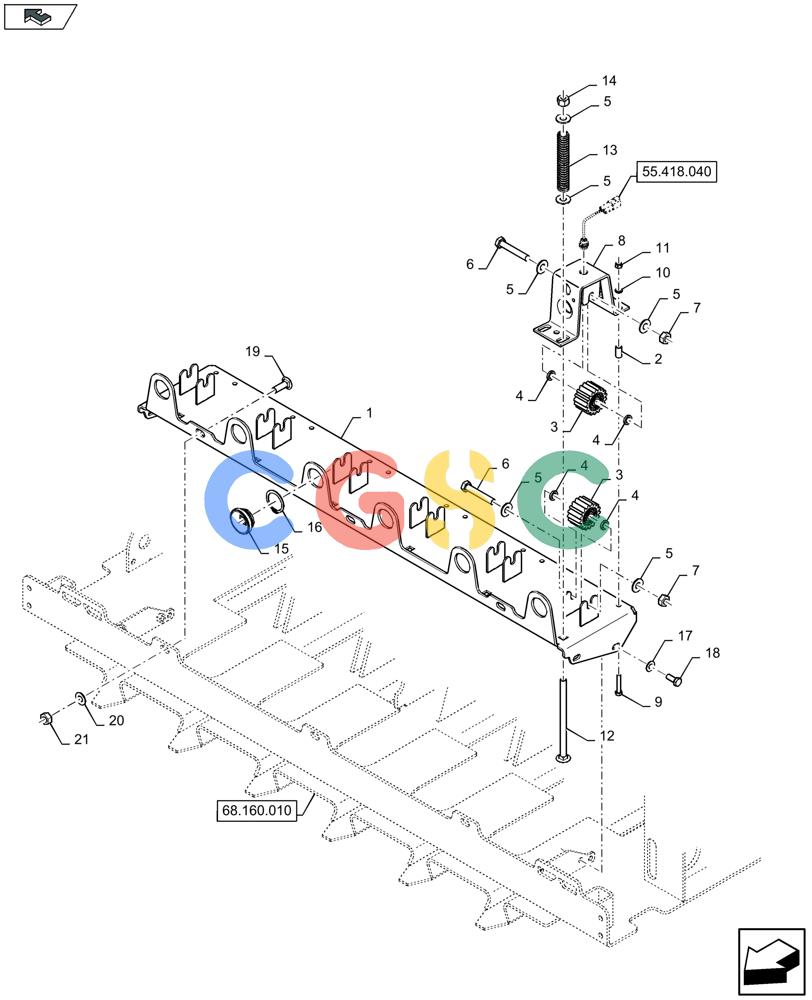

| 1. |
84274105
|
[1] |
MOUNTING PLATE
|
ZED
|
| 1. |
84300668
|
[1] |
TENSIONER
|
ZED
|
| 2. |
9838894
|
[1] |
SPACER,6.83mm ID x 10.29mm OD x 19mm L
|
ZED
|
| 3. |
87382295
|
[12] |
GEAR
|
ZED
|
| 4. |
87391155
|
[1] |
SPACER,10.5mm ID x 16mm OD x 3mm L
|
ZED
|
| 5. |
378244
|
[1] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 6. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 7. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
87528185
|
[6] |
BRACKET
|
ZED
|
| 9. |
86977789
|
[1] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
|
| 10. |
86588450
|
[1] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
, Serial Range: -C161
|
| 10. |
140015
|
[1] |
WASHER,6.4mm ID x 14mm OD x 1.6mm Thk
|
NH
, Start Serial: D162 Superseded by part number: 9820463
|
| 11. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 12. |
84018757
|
[1] |
BOLT,M10 x 1.5 x 160mm, CL 4.6
|
ZED
|
| 13. |
9838888
|
[1] |
SPRING
|
ZED
Superseded by part number: 858027
|
| 14. |
412141
|
[1] |
NUT,M10 x 1.5, Cl 8
|
ZED
Superseded by part number: 190003888452
|
| 15. |
87331610
|
[1] |
GUIDE
|
ZED
, Serial Range: -C047
|
| 15. |
84275921
|
[1] |
GUIDE
|
ZED
, Start Serial: D048
|
| 16. |
370004
|
[1] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 17. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 18. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 19. |
86512446
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
, Serial Range: -C144
|
| 19. |
86633356
|
[3] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
, Start Serial: D145
|
| 20. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
