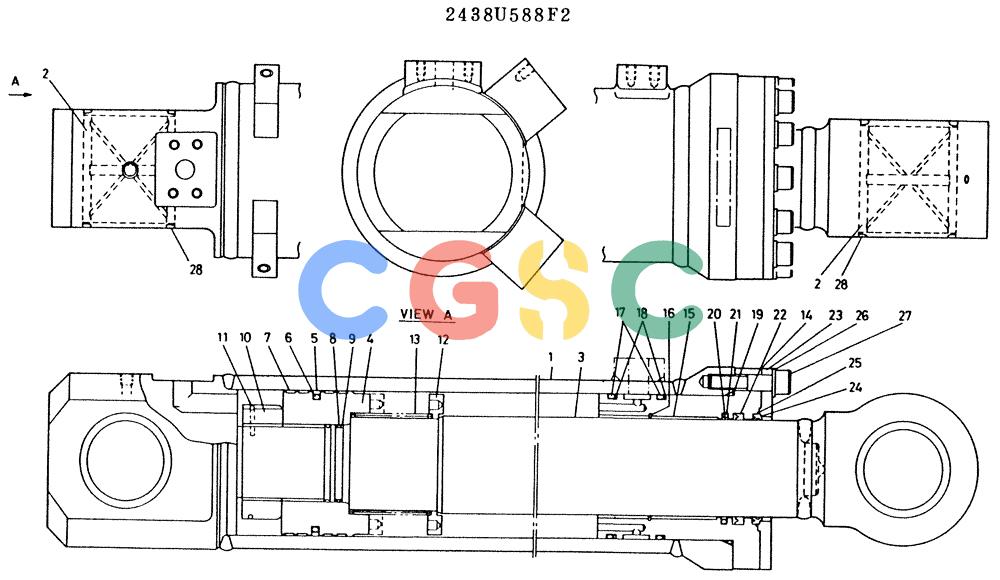

神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (11-021) - CYLINDER ASSY (ARM), 2438U588 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U588F2 | [1] | CYLINDER ASSY, CONSISTS OF THE FOLLOWING PARTS | CYLINDER ASSY, CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U588S1 | [1] | CYLINDER, TUBE | |
| 2. | 2438U588S2 | [2] | BUSHING | KOB Superseded by part number: 2438U588S35 |
| 3. | 2438U588S3 | [1] | ROD | ROD |
| 4. | 2438U588S4 | [1] | PISTON | KOBPISTON |
| 5. | R45P0049D12 | [1] | SEAL | KOB |
| 6. | 45Z91D46 | [1] | O-RING | KOB |
| 7. | 2438U588S7 | [4] | WEAR RING | KOBRING, WEAR Superseded by part number: R45T0014D6 |
| 8. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.4mm x OD 77.5mm |
| 9. | ZD85G07500 | [2] | BACK-UP RING | KOB |
| 10. | 2438U588S10 | [1] | NUT | KOB Superseded by part number: 2438U323S25 |
| 11. | 2438U588S11 | [1] | LOCKING RING | KOBLOCK |
| 12. | 2438U588S12 | [1] | PLATE | KOB |
| 13. | 2438U588S13 | [1] | SPRING | KOB |
| 14. | 2438U588S14 | [1] | AIR CONDITIONER | KOB |
| 15. | 2438U321S15 | [1] | BUSHING | HIT Superseded by part number: 2405U104D10070 |
| 16. | 2418U112D74 | [1] | CLIP | KOB |
| 17. | ZD12P14000 | [2] | O-RING | KOB |
| 18. | 2438U588S18 | [2] | RING, BACK-UP | RING, BACK-UP |
| 19. | 2438U588S19 | [1] | O-RING | KOB |
| 20. | R45P0050D11 | [1] | SEAL | KOB |
| 21. | 45Z91D117 | [1] | O-RING | KOB |
| 22. | 2438U24S11 | [1] | PACKING | KOB |
| 23. | 2438U321S33 | [1] | COVER | KOB |
| 24. | 2438U588S24 | [1] | DUST CAP | KOBSEAL, DUST Superseded by part number: 2438U368S16 |
| 25. | 2438U588S25 | [1] | O-RING | KOB Superseded by part number: 4045Z3D5 |
| 26. | ZW13H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 27. | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOBM16x2.0x75mm |
| 28. | 2438U568S31 | [4] | DUST CAP | KOB Superseded by part number: 2445R138D7 |
| . . | 2438U588R110 | [1] | REPAIR KIT | KOBREPAIR, CONSISTS OF REF 17, 18, 19, 20, 21, 24, 25 Superseded by part number: 2438U588R110P |
