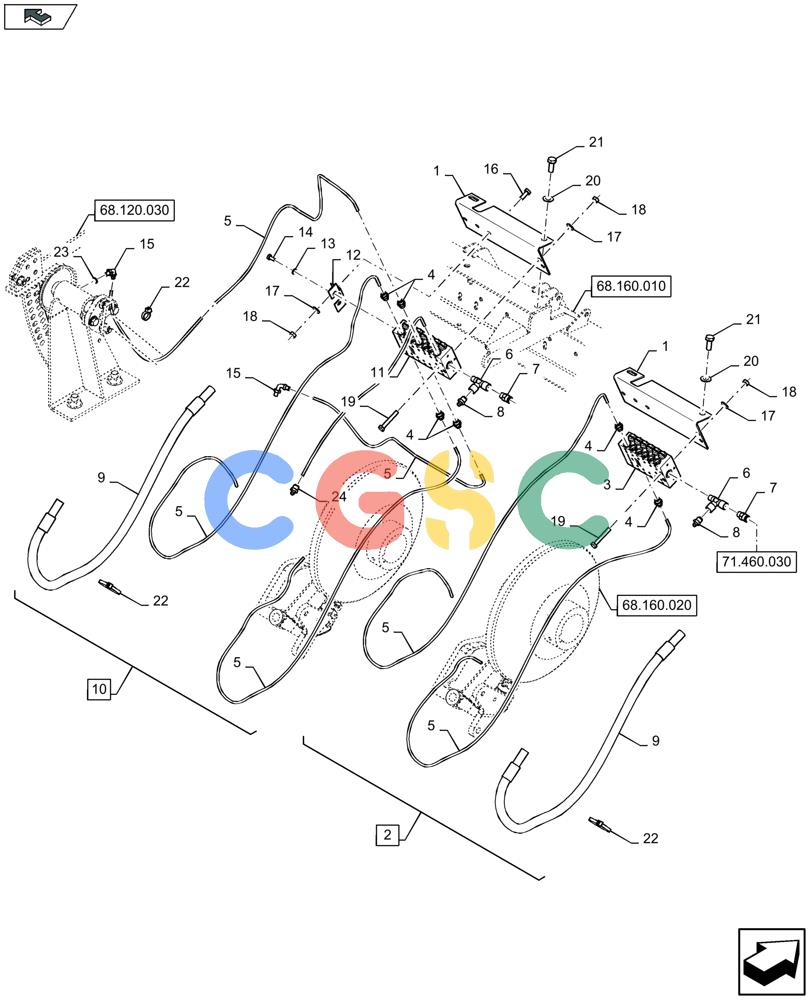

凯斯零件查询(LB424S XL) - BALER (11/16-) (71.460.010) - CENTRAL GREASING KNOTTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84339628
|
[2] |
MOUNTING PLATE
|
ZED
|
| 2. |
84341248
|
[1] |
DIVIDER
|
ZED
Incl 3 - 9
|
| 2. |
84341263
|
[1] |
DIVIDER
|
ZED
Incl 3 - 9, 12 - 14
|
| 3. |
84359237
|
[1] |
DIVIDER
|
ZED
12/12
|
| 3. |
84379918
|
[1] |
DIVIDER
|
ZED
18/18
|
| 4. |
84359241
|
[1] |
FITTING
|
ZED
|
| 5. |
84387147
|
[1] |
HOSE
|
ZED
L=24.575M Superseded by part number: 87589622
|
| 6. |
84807295
|
[1] |
HYD CONNECTOR
|
ZED
|
| 7. |
84807375
|
[1] |
NIPPLE
|
ZED
|
| 8. |
84807304
|
[1] |
LUBE NIPPLE
|
ZED
|
| 9. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Hose Incl in 2
|
| 10. |
84341247
|
[1] |
DIVIDER
|
ZED
Incl 4 - 9, 11 - 14
|
| 10. |
84341262
|
[1] |
DIVIDER
|
ZED
Incl 4 - 9, 11 - 14
|
| 11. |
84359236
|
[1] |
DIVIDER
|
ZED
14/14
|
| 11. |
84379919
|
[1] |
DIVIDER
|
ZED
22/22
|
| 15. |
84807245
|
[2] |
COUPLING
|
ZED
|
| 16. |
86508568
|
[1] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 17. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 18. |
412152
|
[1] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 19. |
43118
|
[4] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 20. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 21. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 22. |
86566990
|
[1] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 23. |
84439102
|
[1] |
SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk
|
ZED
|
| 24. |
84807243
|
[1] |
HYD CONNECTOR
|
ZED
|
