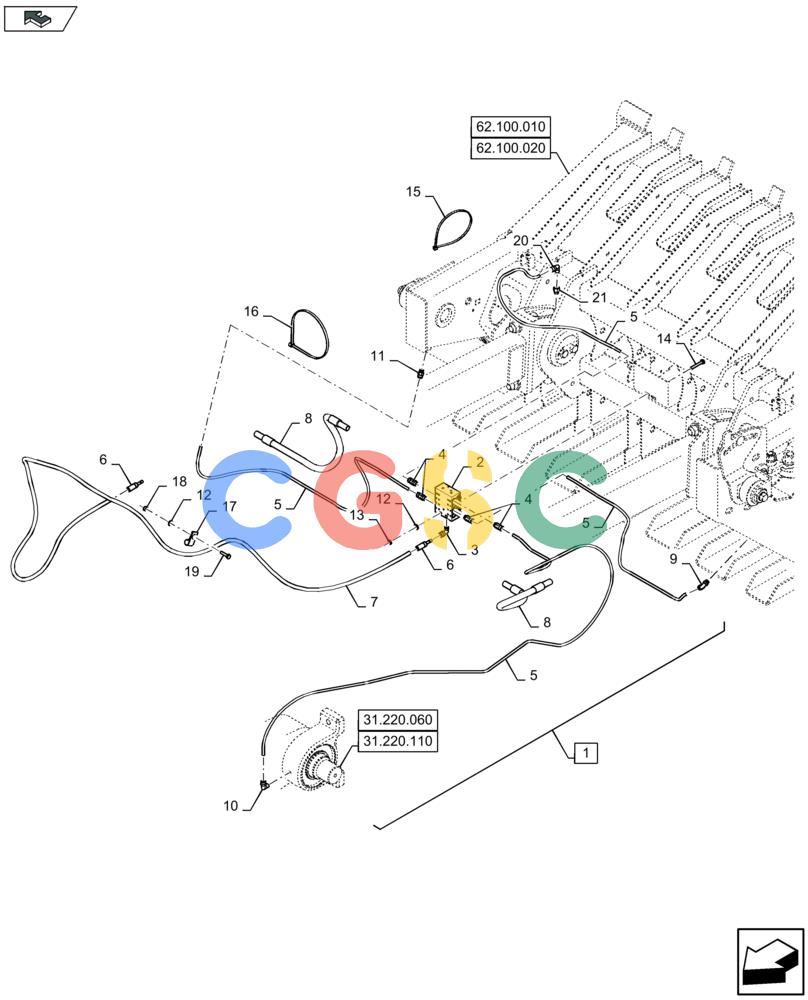

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84341249
|
[1] |
DIVIDER
|
ZED
Incl 2 - 8
|
| 2. |
84379937
|
[1] |
DIVIDER
|
ZED
|
| 3. |
87670206
|
[1] |
FITTING
|
ZED
Superseded by part number: 2928866
|
| 4. |
84807301
|
[8] |
END FITTING
|
ZED
6MM
|
| 5. |
84388050
|
[1] |
HOSE
|
ZED
6MM, L=8.31M Superseded by part number: 84807290
|
| 6. |
84388052
|
[2] |
SCREW ON COUPLING
|
ZED
Superseded by part number: 1431140, 1431139
|
| 7. |
84379944
|
[1] |
HOSE
|
ZED
L=2.48M Superseded by part number: 84807289
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Hose Incl in 1
|
| 9. |
84807242
|
[2] |
NIPPLE
|
ZED
1/8 - 6MM Superseded by part number: 84807377
|
| 10. |
84807241
|
[2] |
NIPPLE
|
ZED
1/8 - 6MM
|
| 11. |
84807240
|
[2] |
NIPPLE
|
ZED
1/8 - 6MM
|
| 12. |
140015
|
[3] |
WASHER,6.4mm ID x 14mm OD x 1.6mm Thk
|
NH
Superseded by part number: 9820463
|
| 13. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 14. |
43118
|
[2] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
, Serial Range: -C084 Superseded by part number: 120102
|
| 14. |
412364
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8
|
ZED
, Start Serial: D085
|
| 15. |
86566990
|
[6] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 16. |
84449335
|
[12] |
CABLE TIE,346mm L
|
ZED
|
| 17. |
9837759
|
[1] |
CLAMP,7mm ID, 10.5mm Bolt Hole, P Type
|
ZED
|
| 18. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 19. |
86977786
|
[1] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
|
| 21. |
84807248
|
[2] |
HYD CONNECTOR
|
ZED
, Start Serial: D085
|
