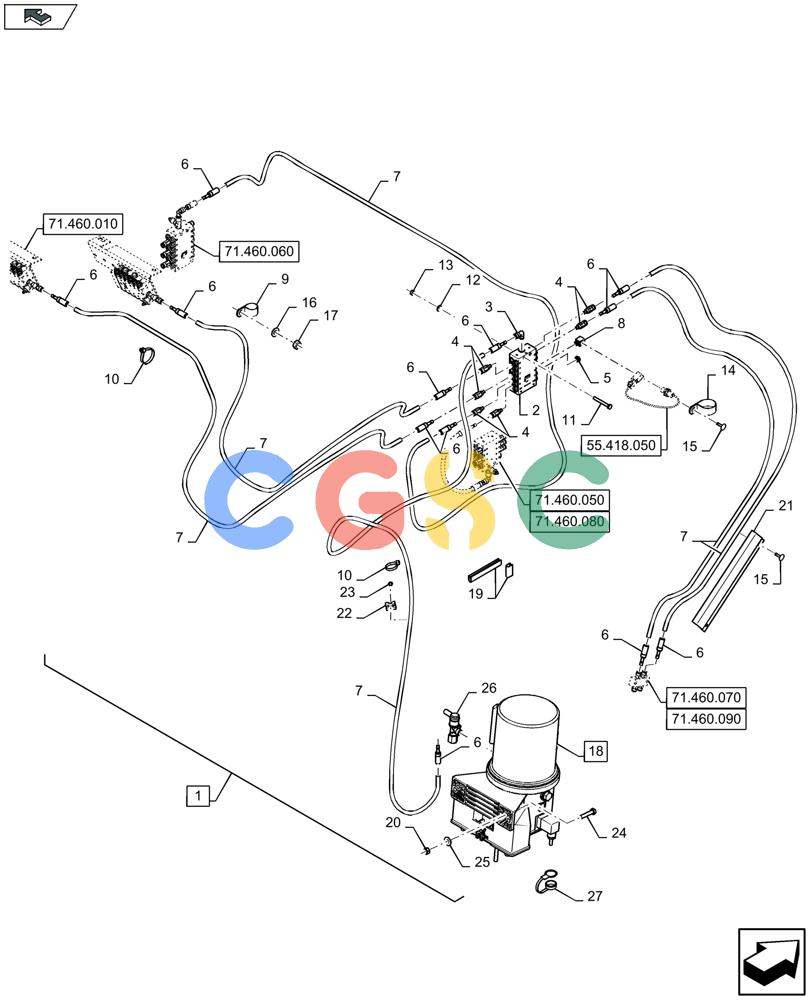

| 1. |
84341266
|
[1] |
DIVIDER
|
ZED
Incl 2 - 8
|
| 1. |
84341256
|
[1] |
FLOW DIVIDER
|
ZED
Incl 2 - 8
|
| 1. |
84341259
|
[1] |
FLOW DIVIDER
|
ZED
Incl 2 - 8
|
| 1. |
84341265
|
[1] |
FLOW DIVIDER
|
ZED
Incl 2 - 8
|
| 1. |
48026091
|
[1] |
FLOW DIVIDER
|
ZED
Incl 2 - 8
|
| 1. |
48026090
|
[1] |
FLOW DIVIDER
|
ZED
Incl 2 - 8
|
| 2. |
84390661
|
[1] |
MANIFOLD
|
ZED
Superseded by part number: 84807284
|
| 3. |
87670206
|
[1] |
FITTING
|
ZED
Superseded by part number: 2928866
|
| 4. |
84807292
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 2928867
|
| 5. |
84379934
|
[1] |
PLUG
|
ZED
Superseded by part number: 84807296
|
| 6. |
84388052
|
[1] |
SCREW ON COUPLING
|
ZED
Superseded by part number: 1431140, 1431139
|
| 7. |
84379944
|
[1] |
HOSE
|
ZED
L=14.7M Superseded by part number: 84807289
|
| 8. |
84807300
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 9. |
9827902
|
[1] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 10. |
86566990
|
[12] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 11. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
, Serial Range: -C084
|
| 11. |
412364
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8
|
ZED
, Start Serial: D085
|
| 12. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 13. |
412152
|
[2] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 14. |
87024765
|
[1] |
CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
|
| 15. |
9512290
|
[1] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 16. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 17. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
84312795
|
[1] |
PUMP
|
ZED
Incl 26, 27
|
| 19. |
291186
|
[1] |
PROTECTION STRIP,9.9mm W
|
NH
L=0.76M Superseded by part number: 47560081, 47560080
|
| 20. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 21. |
84807347
|
[1] |
CHANNEL
|
ZED
|
| 22. |
86590413
|
[2] |
BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk
|
ZED
|
| 23. |
445394
|
[2] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 24. |
43129
|
[2] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 25. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 26. |
47766067
|
[1] |
VALVE
|
ZED
|
| 27. |
47921551
|
[1] |
CAP
|
ZED
|
