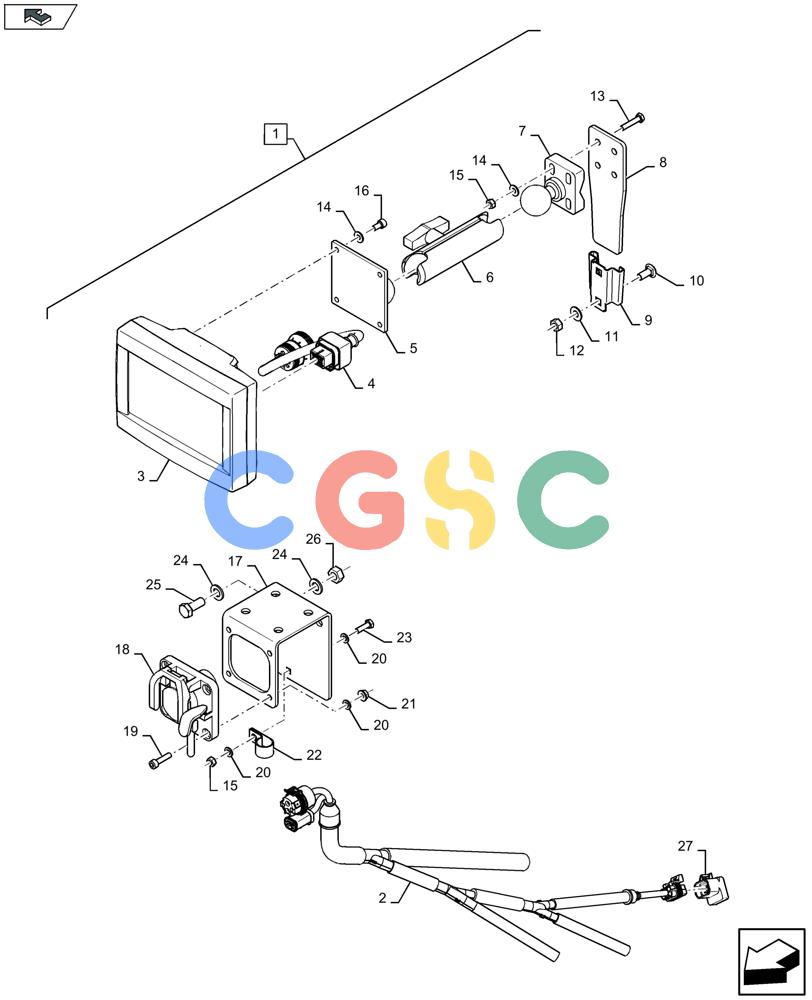

| 1. |
47968132
|
[1] |
DIA KIT, HARVESTER
|
ZED
Incl 2 - 27
|
| 2. |
47752681
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
47585553
|
[1] |
DISPLAY
|
ZED
|
| 4. |
47533754
|
[1] |
WIRE HARNESS
|
ZED
|
| 5. |
87386398
|
[1] |
SUPPORTING ARM
|
GI
|
| 6. |
87284257
|
[1] |
ARM
|
GI
|
| 7. |
87284259
|
[1] |
PLATE
|
GI
|
| 8. |
84348886
|
[1] |
MOUNTING PLATE
|
ZED
|
| 9. |
9837606
|
[1] |
CLIP
|
ZED
Superseded by part number: 847590
|
| 10. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 12. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 13. |
120101
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 14. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 15. |
9706755
|
[5] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 16. |
63582
|
[4] |
HEX SOC SCREW,M6 x 12mm, Cl 8.8
|
BER
Superseded by part number: 14305124
|
| 17. |
47754590
|
[1] |
MOUNTING PLATE
|
ZED
|
| 18. |
87522416
|
[1] |
ELEC CONNECTOR
|
BAS
|
| 19. |
9832203
|
[4] |
HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd
|
FOR
Superseded by part number: 89832203
|
| 20. |
86588450
|
[6] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 21. |
86619800
|
[4] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 22. |
9706732
|
[1] |
CLAMP,19mm ID, 8.7mm Bolt Hole, P Type
|
NH
Superseded by part number: 86637976
|
| 23. |
120100
|
[1] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 24. |
86624176
|
[4] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
FOR
Superseded by part number: 14496621
|
| 25. |
43139
|
[2] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 26. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 27. |
87601142
|
[1] |
ELEC CONNECTOR,Female, 6 Cavities
|
PLO
|
