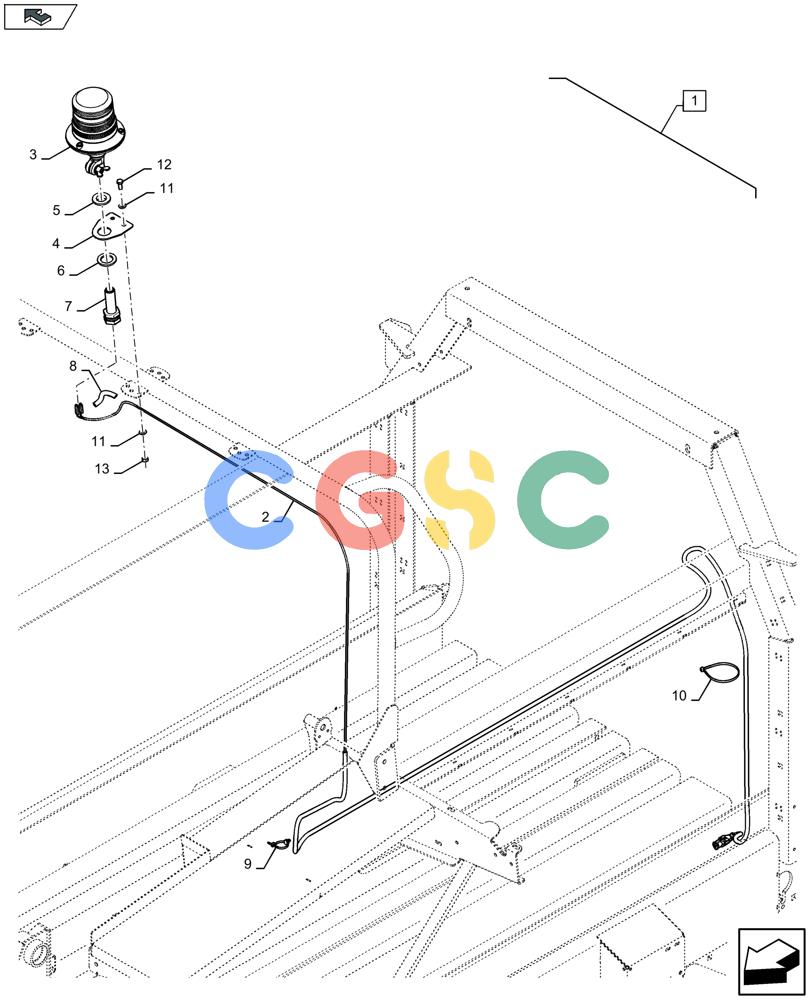

凯斯零件查询(LB424S XL) - BALER (11/16-) (88.055.033) - DIA KIT: REVOLVING FLASHLIGHT - LED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47964853
|
[1] |
DIA KIT, HARVESTER
|
ATT
Incl 2 - 13
|
| 2. |
47966412
|
[1] |
WIRE HARNESS
|
ZED
|
| 3. |
47730264
|
[1] |
BEACON
|
ZED
|
| 4. |
47768700
|
[1] |
SUPPORT
|
ZED
|
| 5. |
47729255
|
[1] |
BUSHING
|
ZED
|
| 6. |
47729252
|
[1] |
BUSHING
|
ZED
|
| 7. |
9513422
|
[1] |
BASE
|
ZED
|
| 8. |
47427651
|
[1] |
CONDUIT
|
CUR
|
| 9. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 10. |
86566990
|
[15] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 11. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 12. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
