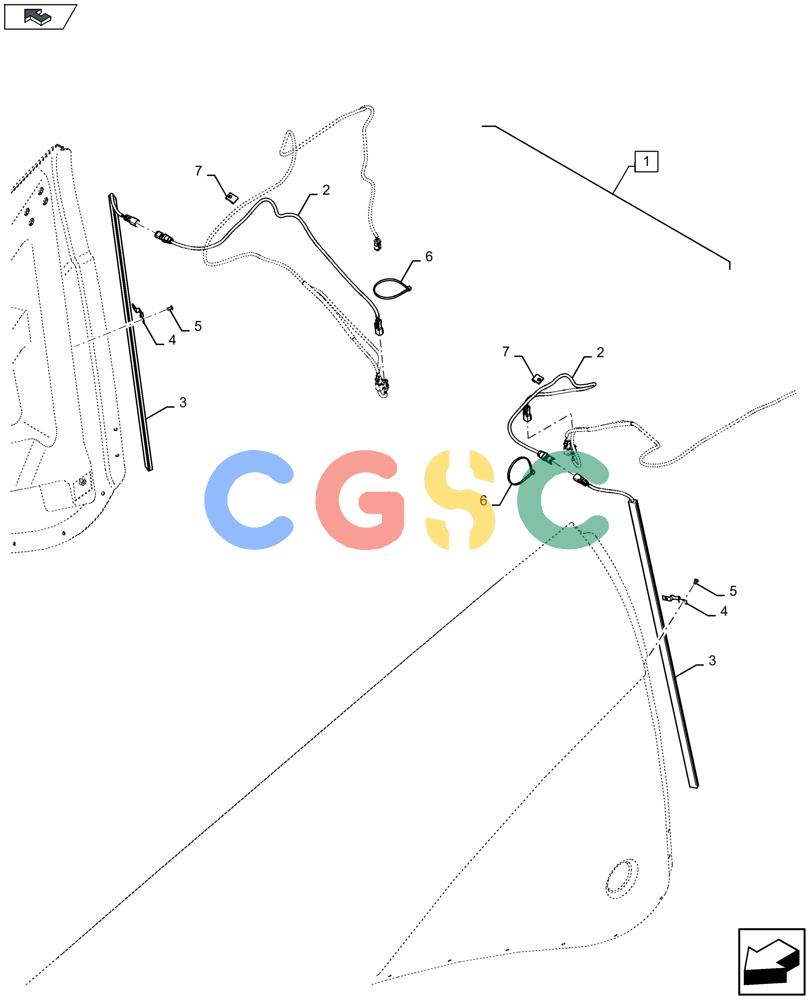

凯斯零件查询(LB424S XL) - BALER (11/16-) (88.055.035) - DIA KIT: FLYWHEEL HOOD SERVICE LIGHT KIT - LED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
48043348
|
[1] |
DIA KIT, HARVESTER
|
ATT
Incl 2 - 7
|
| 2. |
47966374
|
[2] |
WIRE HARNESS
|
ZED
|
| 3. |
47506757
|
[2] |
COURTESY LIGHT
|
ZED
|
| 4. |
47533109
|
[4] |
SUPPORT
|
ZED
|
| 5. |
445394
|
[8] |
RIVET,Pop, 3/16" x 1/2" OAL
|
ZED
Superseded by part number: 151-573
|
| 6. |
86566990
|
[10] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
|
| 7. |
237910
|
[2] |
WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type
|
NH
|
