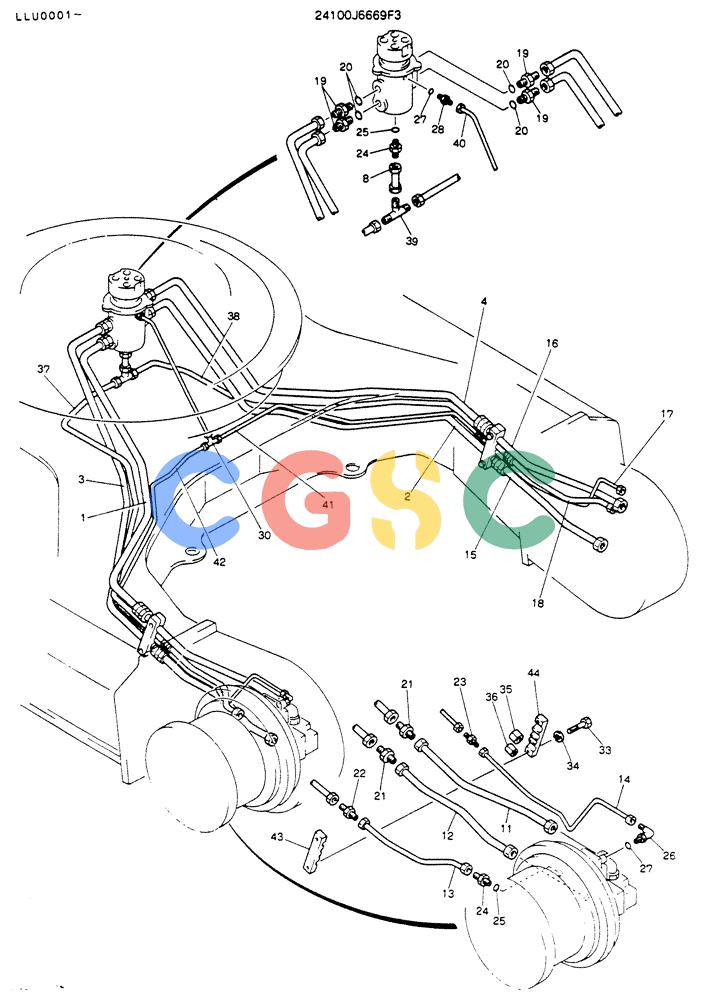

神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (06-009) - HYDR LINES, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6669F3 | [1] | HYDR LINES, LOW | |
| 1. | 2418N4593 | [1] | TUBE | KOB |
| 2. | 2418N4594 | [1] | TUBE | KOB |
| 3. | 2418N4595 | [1] | TUBE | KOB |
| 4. | 2418N4596 | [1] | TUBE | KOB |
| 11. | 2418P17871 | [1] | TUBE | KOB |
| 12. | 2418P17872 | [1] | TUBE | KOB |
| 13. | 2418N4568D2 | [1] | TUBE | KOB |
| 14. | 2418P17873 | [1] | TUBE | KOB |
| 15. | 2418P17876 | [1] | TUBE | KOB |
| 16. | 2418P17877 | [1] | TUBE | KOB |
| 17. | 2418P17878 | [1] | TUBE | KOB |
| 18. | 2418N4568D1 | [1] | TUBE | KOB |
| 19. | ZA23F28016 | [4] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 20. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 21. | ZA23B28000 | [4] | CONNECTION | KOBM36x1.50x43mm Long |
| 22. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 23. | ZA23B10000 | [2] | HYD CONNECTOR | KOBM16x1.50x50mm Long |
| 24. | ZA23F18008 | [2] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 25. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 26. | ZA33F10004 | [2] | ELBOW | KOB |
| 27. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 28. | ZA23F10004 | [1] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 30. | ZA53B10000 | [1] | TEE | KOB(3) M16x1.50x46mm Long (No O-Ring supplied) |
| 33. | ZS23C12050 | [4] | SET SCREW,Hex Socket Head, M12 x 50mm | KOBM12x1.75x50mm |
| 34. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 35. | 2414T2889 | [2] | PROTECTOR | KOB |
| 36. | 2414T2890 | [2] | PROTECTOR | KOBID 10 x OD 14 x 35mm Long |
| 37. | 2418P18229 | [1] | TUBE | KOB |
| 38. | 2418P18230 | [1] | TUBE | KOB |
| 39. | 2444Z2887 | [1] | TEE | KOB |
| 40. | 2418T18276 | [1] | RIGID TUBE | KOB |
| 41. | 2418P18597 | [1] | TUBE | KOB |
| 42. | 2418P18598 | [1] | TUBE | KOB |
| 43. | 2432T2545 | [2] | CLAMP | KOB |
| 44. | 2432T2546 | [2] | CLAMP | KOB |
