神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (06-010) - INSTAL, CRAWLER TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
735 次

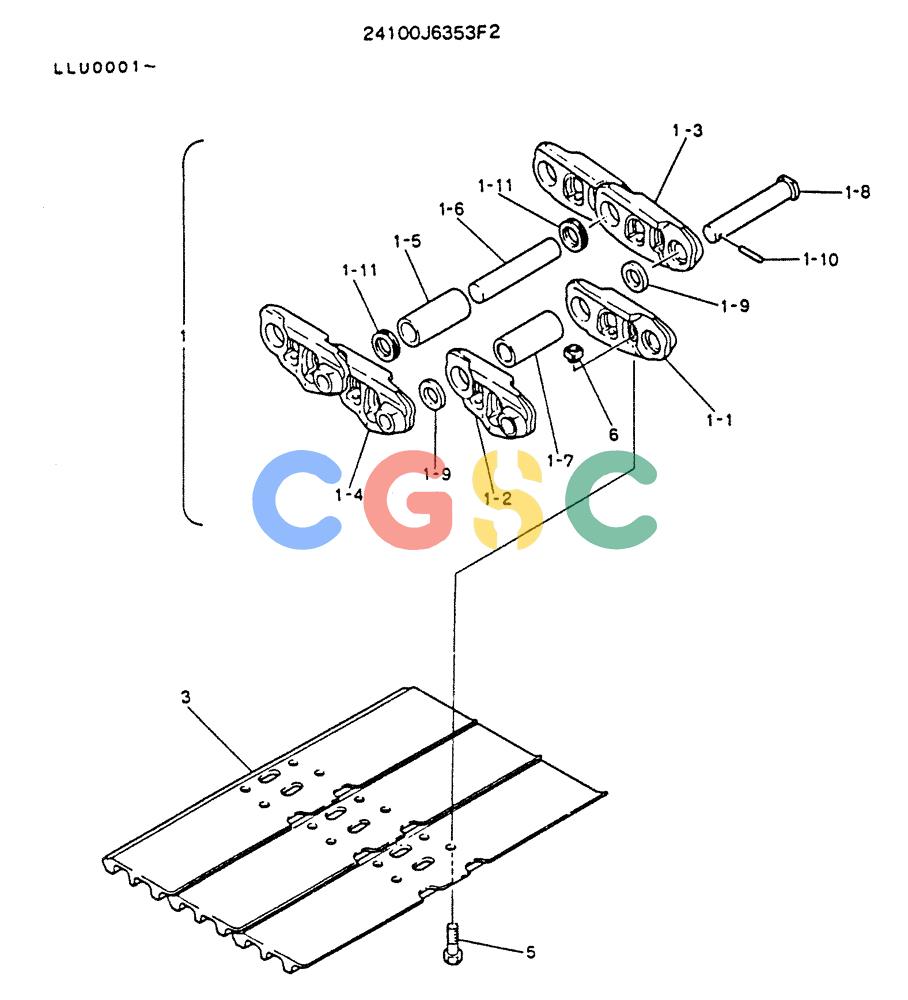

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6353F2 | [1] | INSTAL,CRAWLER TRACK | INSTAL,CRAWLER TRACK |
| 1. | 24100N4024F2 | [2] | CHAIN | KOB Superseded by part number: 24100N4024F4 |
| 1-1. | 2424N175D1 | [50] | CHAIN | KOB |
| 1-2. | 2424N175D2 | [50] | CHAIN | KOB |
| 1-3. | 2424N176D1 | [1] | CONNECTING LINK | KOBMASTER |
| 1-4. | 2424N176D2 | [1] | CONNECTING LINK | KOBMASTER |
| 1-5. | 2405T1266 | [50] | BUSHING | KOBTRACK Superseded by part number: 2405P712 |
| 1-6. | 2419T4700 | [50] | PIN | KOBTRACK |
| 1-7. | 2405T1267 | [1] | BUSHING | KOBMASTER |
| 1-8. | 2419P1723 | [1] | PIN | KOB |
| 1-9. | 2418T17554 | [2] | COLLAR CLAMP | KOB |
| 1-10. | 2419T2298 | [1] | PIN | KOB |
| 1-11. | 2445Z1119 | [100] | DUST CAP | KOB |
| 3. | 2424N144D3 | [102] | TRACK SHOE | KOB Superseded by part number: 2415N365D3 |
| 5. | 2420T5950 | [408] | SCREW | KOB |
| 6. | 2420T2751 | [408] | NUT | KOB |
