神钢零件查询(K909LC) - MARK II EXCAVATOR ASN LLU-0001 (1/87-12/03) (10-003) - ELEMENT KIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
735 次

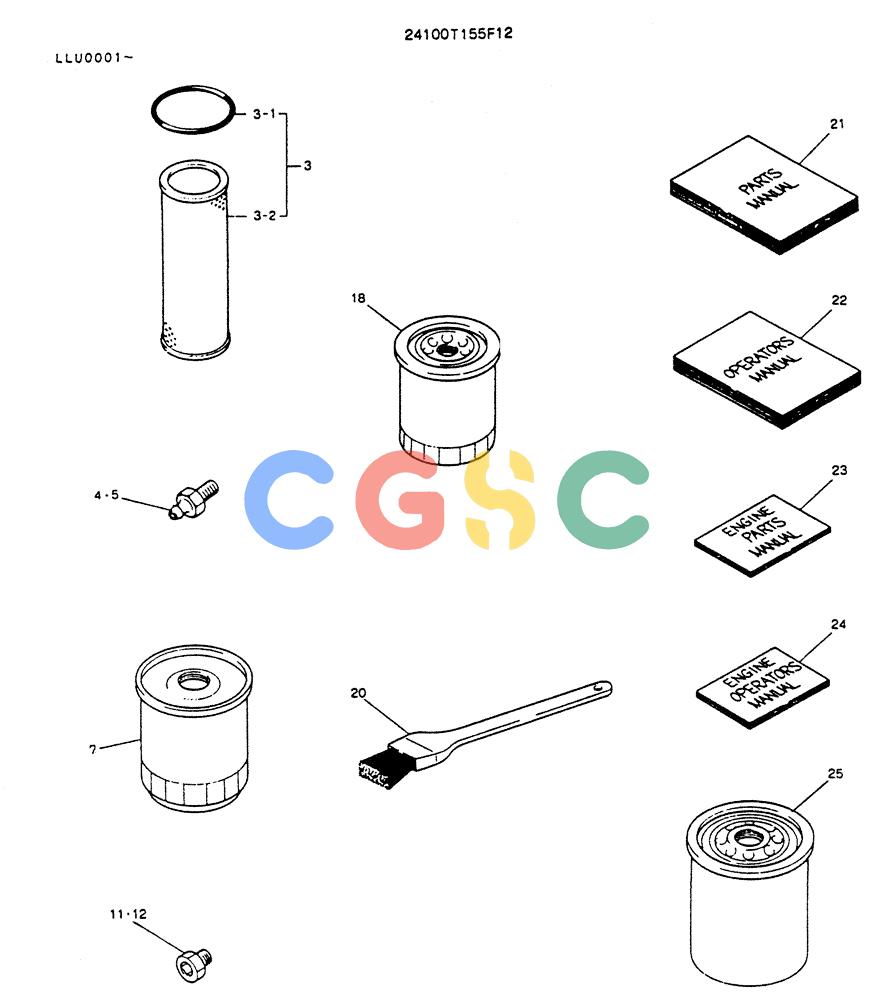

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100T155F12 | [1] | ELEMENT KIT | |
| 3. | 24046Z15 | [2] | ELEMENT | KOB Superseded by part number: 24046Z15P |
| 3-1. | ZD11P13000 | [1] | O-RING | KOBID 129.6 ± 1.05 x OD 140mm |
| 3-2. | 2446R147 | [1] | ELEMENT | KOB Superseded by part number: 24046Z15P |
| 4. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 5. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 7. | S15510-20200 | [1] | CARTRIDGE | KOBWas 2446U141S2 |
| 11. | 2444T3230 | [1] | ADAPTER | KOB |
| 12. | 2444T2549 | [1] | HYD CONNECTOR | KOB |
| 18. | 2446R332D4 | [1] | FILTER | KOB Superseded by part number: 47500495 |
| 20. | 2421Z302 | [2] | BRUSH, PAINT | |
| 21. | 2421R176D6 | [2] | PARTS MANUAL | |
| 22. | 2421R179D6 | [2] | MANUAL, OPERATORS | |
| 23. | 2421R177D3 | [2] | PARTS MANUAL | |
| 24. | 2421R178D3 | [2] | MANUAL, OPERATORS | |
| 25. | 2446R332D1 | [1] | ELEMENT | KOB Superseded by part number: 2451U324-1 |
