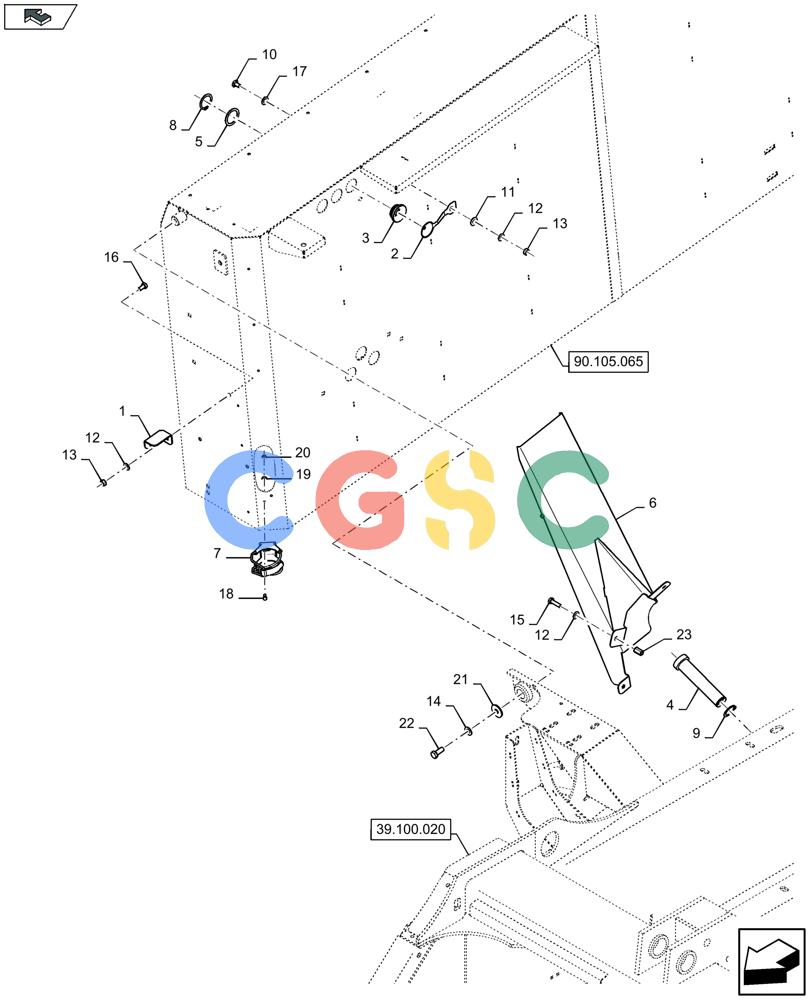

| 1. |
47988460
|
[1] |
MOUNTING PLATE
|
ZED
|
| 2. |
84421934
|
[6] |
LEAF SPRING
|
ZED
|
| 3. |
84275921
|
[6] |
GUIDE
|
ZED
|
| 4. |
47953691
|
[3] |
GUIDE
|
ZED
|
| 5. |
84444540
|
[6] |
WASHER,35mm ID x 45mm OD x 2mm Thk
|
ZED
|
| 6. |
47974102
|
[1] |
SHIELD
|
ZED
|
| 7. |
84575978
|
[1] |
CLAMP
|
ZED
|
| 8. |
370004
|
[6] |
SNAP RING,M35 x 1.5mm Thk, External
|
NH
Superseded by part number: 11068376
|
| 9. |
370003
|
[3] |
SNAP RING,M30, External
|
NH
|
| 10. |
86619060
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 11. |
378243
|
[6] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
Superseded by part number: 63707, 63707, 86625263
|
| 12. |
322358
|
[10] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
9706690
|
[7] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 14. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
43128
|
[3] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 16. |
120103
|
[1] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
Superseded by part number: 16043224
|
| 17. |
86624176
|
[6] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
FOR
Superseded by part number: 14496621
|
| 18. |
86632597
|
[2] |
BOLT,M5 x 0.8 x 15.65mm, Cl 8.8
|
FAR
|
| 19. |
322356
|
[2] |
BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk
|
ZED
|
| 20. |
86508813
|
[2] |
NUT,M5, Cl 8
|
ZED
Superseded by part number: 10788811
|
| 21. |
140042
|
[1] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 22. |
43139
|
[1] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 23. |
47625837
|
[3] |
NUT
|
ZED
|
