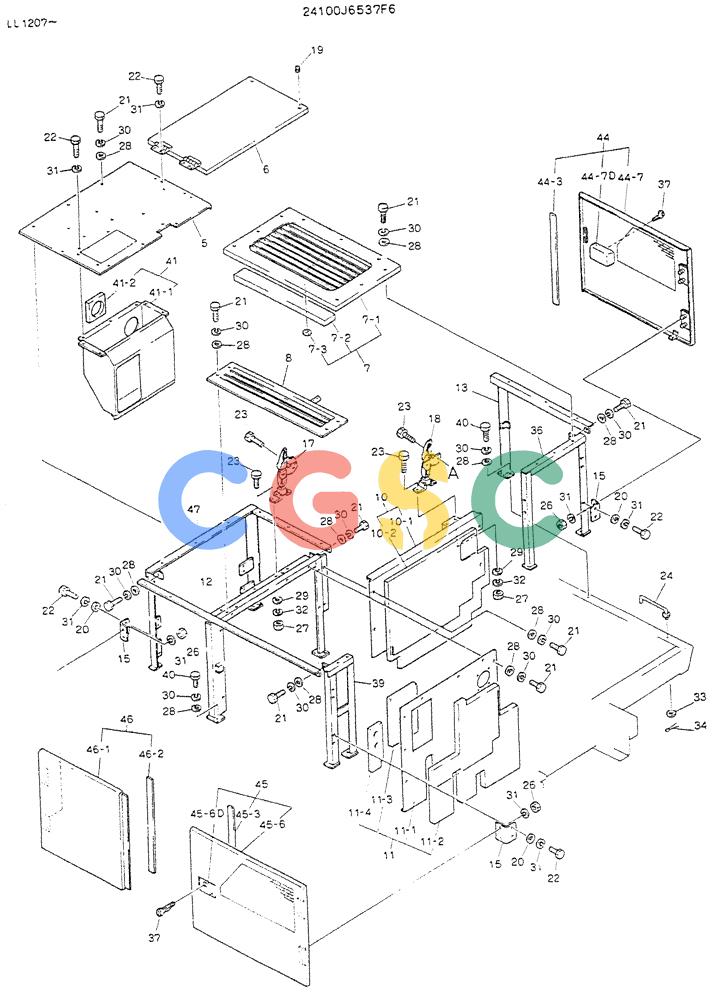

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (02-006[01]) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6537F6 | [1] | GUARD ASSY | |
| 5. | 2414P4146 | [1] | COVER | |
| 6. | 2414P6006 | [1] | COVER | COVER |
| 7. | 2414T2873F1 | [1] | COVER ASSY | COVER ASSY |
| 7-1. | 2414P4148 | [1] | COVER | KOB |
| 7-2. | 2479T1260 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 7-3. | 2418T8864 | [5] | WASHER | KOB |
| 8. | 2414P4147 | [1] | COVER | COVER |
| 9. | 24100N4125F1 | [1] | COVER, BATTERY ASSY | COVER, BATTERY ASSY |
| 9-1. | 2421N183 | [1] | BOX | KOB |
| 9-2. | 2414P4175 | [1] | COVER | KOB |
| 9-2C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416T6682 | [3] | RUBBER BAND | KOBCUSHION |
| 9-9. | ZN31C05005 | [3] | NUT | KOB |
| 9-10. | ZW16P05000 | [3] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 9-11. | 2416Z579D1 | [1] | CUSHION | KOB |
| 10. | 2414T2864F1 | [1] | COVER ASSY | COVER ASSY |
| 10-1. | 2414P4145 | [1] | COVER | |
| 11. | 2414T2865F1 | [1] | COVER ASSY | COVER ASSY |
| 11-1. | 2414P4144 | [1] | COVER | |
| 11-2. | 2416T13474 | [1] | INSULATOR | INSULATOR |
| 11-3. | 2416Z525 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 11-4. | 2416Z545 | [1] | INSULATOR | INSULATOR |
| 12. | 2416J827 | [1] | BRACKET | |
| 13. | 2416N3344 | [1] | BRACKET | KOB |
| 15. | 2416T13261 | [6] | BRACKET | KOB |
| 16. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOBCUSHION |
| 20. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 21. | ZS18C12025 | [50] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 22. | ZS18C10025 | [24] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08025 | [20] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 24. | 2416T6289D2 | [3] | STAY | KOBSTAY |
| 25. | ZN17C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 26. | ZN17C10008 | [12] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 27. | ZN17C08007 | [16] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 28. | 2418T10357 | [59] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 29. | ZW16X08000 | [16] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | ZW26X12000 | [59] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 31. | ZW26X10000 | [35] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [20] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2414P3893 | [1] | COVER | KOB |
| 36. | 2416N3343 | [1] | BRACKET | BRACKET |
| 37. | 2420Z1030 | [1] | KEY | KOB Superseded by part number: YN50S01010P1 |
| 38. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 39. | 2416N3345 | [1] | BRACKET | KOB |
| 40. | ZS18C12030 | [9] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 41. | 2421T217F1 | [1] | BOX ASSY | |
| 41-1. | 2421N164 | [1] | BOX | |
| 41-2. | 2416Z512 | [1] | INSULATOR | KOB |
| 42. | 2416P8732 | [1] | STAY | KOB |
| 43. | 24100N4104F2 | [1] | COVER ASSY | COVER ASSY |
| 43-2. | 2416Z529 | [1] | INSULATOR | KOB |
| 43-3. | 2416Z527 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 43-4. | 2416Z490D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 43-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 43-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 43-21. | 2406Z304 | [1] | HANDLE | KOB |
| 43-22. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 43-25. | 2416Z536 | [2] | INSULATOR | KOB |
| 43-26. | 2414J1095 | [1] | COVER | COVER |
| 43-29. | 2420R429D14 | [2] | GROMMET | KOB |
| 44. | 2414T2871F2 | [1] | COVER | KOBASSY |
| 44-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 44-7. | 2414P6096 | [1] | COVER | KOB |
| 44-7D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 45. | 2414T2872F2 | [1] | COVER ASSY | COVER ASSY |
| 45-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 45-6. | 2414P6095 | [1] | COVER | COVER |
| 45-6D. | 2427R476F2 | [1] | LOCK | KOBLOCK Superseded by part number: 2421R175F1 |
| 46. | 2414T3001F1 | [1] | COVER ASSY | KOB |
| 46-1. | 2414P6014 | [1] | COVER | |
| 46-2. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 47. | 2416N3423 | [1] | BRACKET, L.H. | BRACKET, L.H. |
