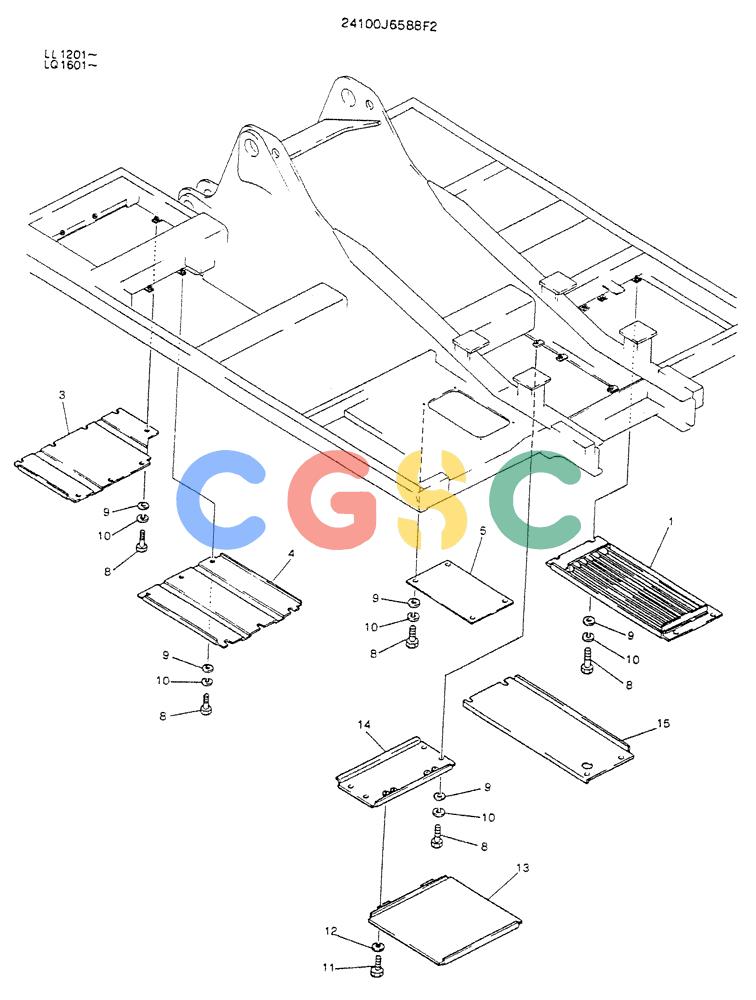

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (02-007) - COVER ASSY, UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6588F2 | [1] | COVER ASSY,UNDER | |
| 1. | 2414P6004 | [1] | COVER | KOB |
| 3. | 2414P6037 | [1] | COVER | COVER |
| 4. | 2414P6038 | [1] | COVER | KOB |
| 5. | 2414T2687 | [1] | COVER | KOB |
| 8. | ZS18C12030 | [34] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 9. | 2418T10357 | [34] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 10. | ZW26X12000 | [34] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | 2414P6098 | [1] | COVER | KOB |
| 14. | 2414P6099 | [1] | COVER | KOB |
| 15. | 2414P6100 | [1] | COVER | KOB |
