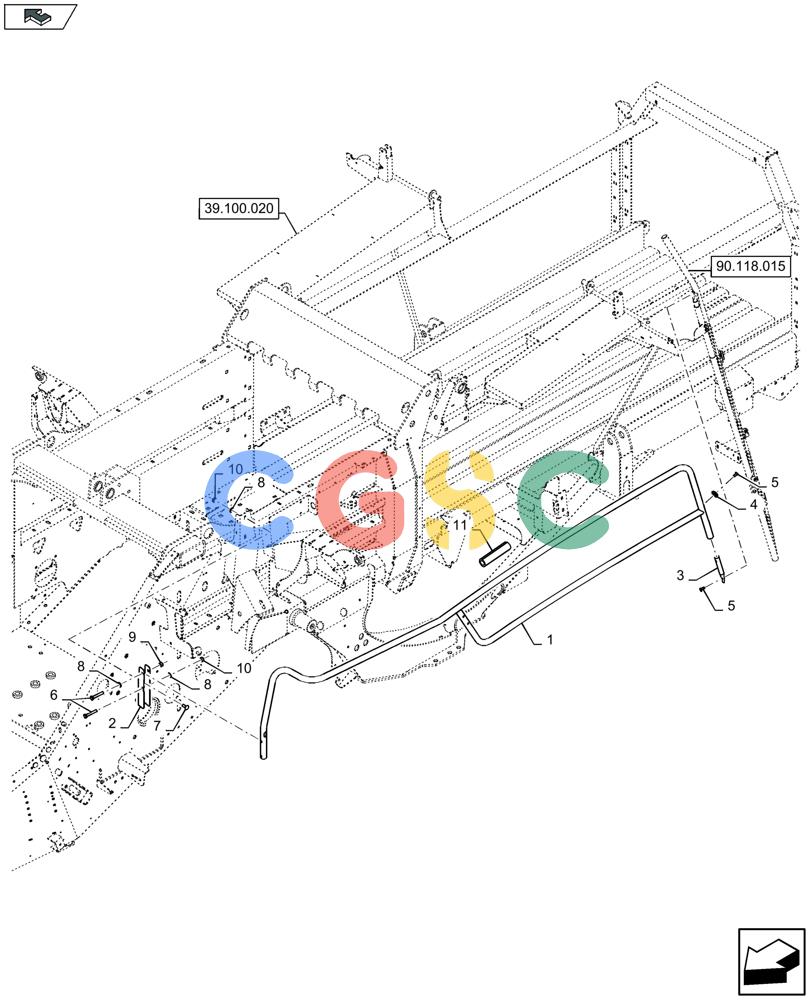

凯斯零件查询(LB424S XL) - BALER (11/16-) (90.118.025) - RAILINGS, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
132 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47953769
|
[1] |
HANDRAIL
|
ZED
|
| 2. |
47953733
|
[1] |
BRACKET
|
ZED
|
| 3. |
47978264
|
[1] |
ROD
|
ZED
|
| 4. |
47822179
|
[1] |
BUSHING
|
ZED
|
| 5. |
87613338
|
[2] |
HEX SOC SCREW,CSS, M8 x 1.25 x 20mm, Cl 8.8
|
PLO
|
| 6. |
120070
|
[2] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 7. |
86633356
|
[2] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 8. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 9. |
84100524
|
[1] |
NUT,M10 x 1.5, Cl 8
|
ZED
|
| 10. |
100016
|
[3] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
48031560
|
[2] |
PROTECTION STRIP
|
ZED
|
