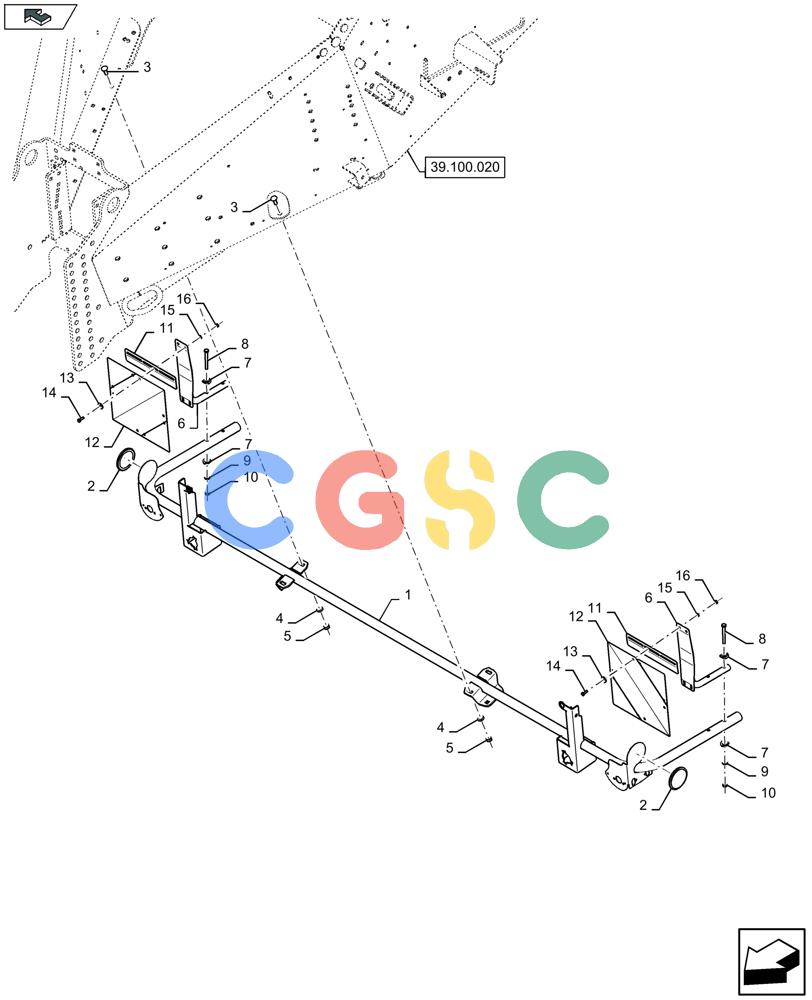

凯斯零件查询(LB424S XL) - BALER (11/16-) (90.118.080) - LIGHTS ARMS, RAIL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47980986
|
[1] |
CROSSRAIL
|
ZED
|
| 2. |
435895
|
[2] |
REFLECTOR,80mm OD, Orange
|
NH
|
| 3. |
86512446
|
[4] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 4. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 5. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 6. |
47980744
|
[2] |
TUBE
|
ZED
|
| 7. |
333962
|
[8] |
CLAMP
|
ZED
|
| 8. |
331175
|
[4] |
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
|
PA
Superseded by part number: Z1232960
|
| 9. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 10. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 11. |
47458243
|
[4] |
PLATE
|
PLO
|
| 12. |
47975306
|
[2] |
PLATE
|
ZED
|
| 13. |
140040
|
[8] |
WASHER,6.6mm ID x 22mm OD x 2mm Thk
|
ZED
|
| 14. |
120100
|
[8] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 15. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 16. |
353308
|
[8] |
NUT,M6 x 1.0, Cl 8
|
NH
|
