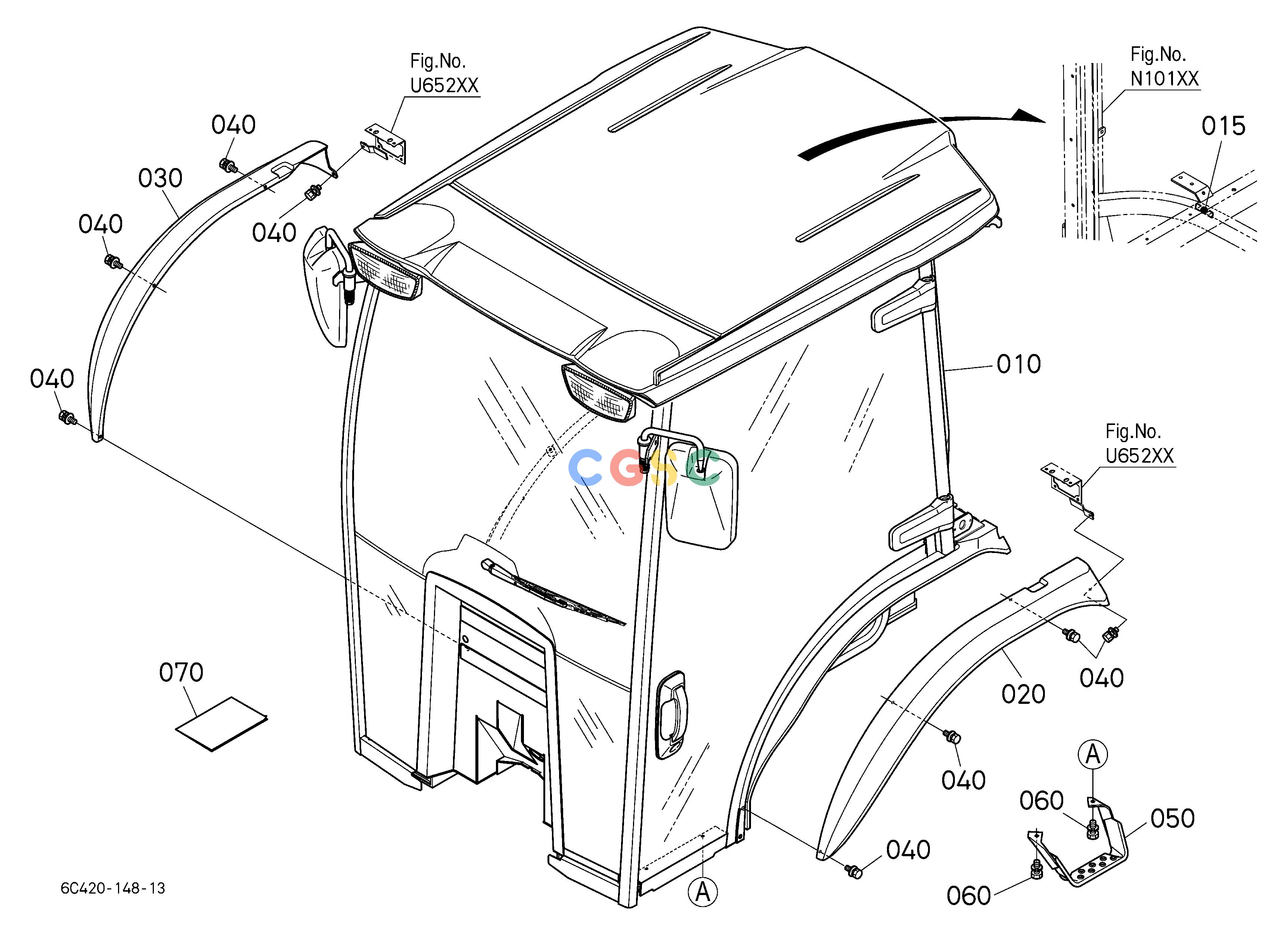

久保田零件查询U65000 CAB KIT 1 (CAB) (W/G.No.B7075) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
99999-99999
|
[1] |
CAB,ASSY(B3350)
|
0.0000(lbs); 0.000
|
| 015. |
3S20198250
|
[1] |
LABEL(EMC)
|
0.0022(lbs); 0.001
|
| 015. |
6C43047550
|
[1] |
LABEL(EMC)
|
0.0022(lbs); 0.001
|
| 020. |
6C43071410
|
[1] |
FENDER(LH,OVER)
|
1.0560(lbs); 0.480
|
| 020. |
6C43071412
|
[1] |
FENDER(LH,OVER)
|
1.0560(lbs); 0.480
|
| 030. |
6C43071420
|
[1] |
FENDER(RH,OVER)
|
1.0560(lbs); 0.480
|
| 030. |
6C43071422
|
[1] |
FENDER(RH,OVER)
|
1.0560(lbs); 0.480
|
| 040. |
0102550616
|
[8] |
BOLT
|
0.0110(lbs); 0.005
|
| 050. |
6C43071690
|
[1] |
STEP(AID)
|
2.8600(lbs); 1.300
|
| 060. |
0113351025
|
[2] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
| 070. |
99999-99999
|
[1] |
MANUAL
|
0.0000(lbs); 0.000
|
