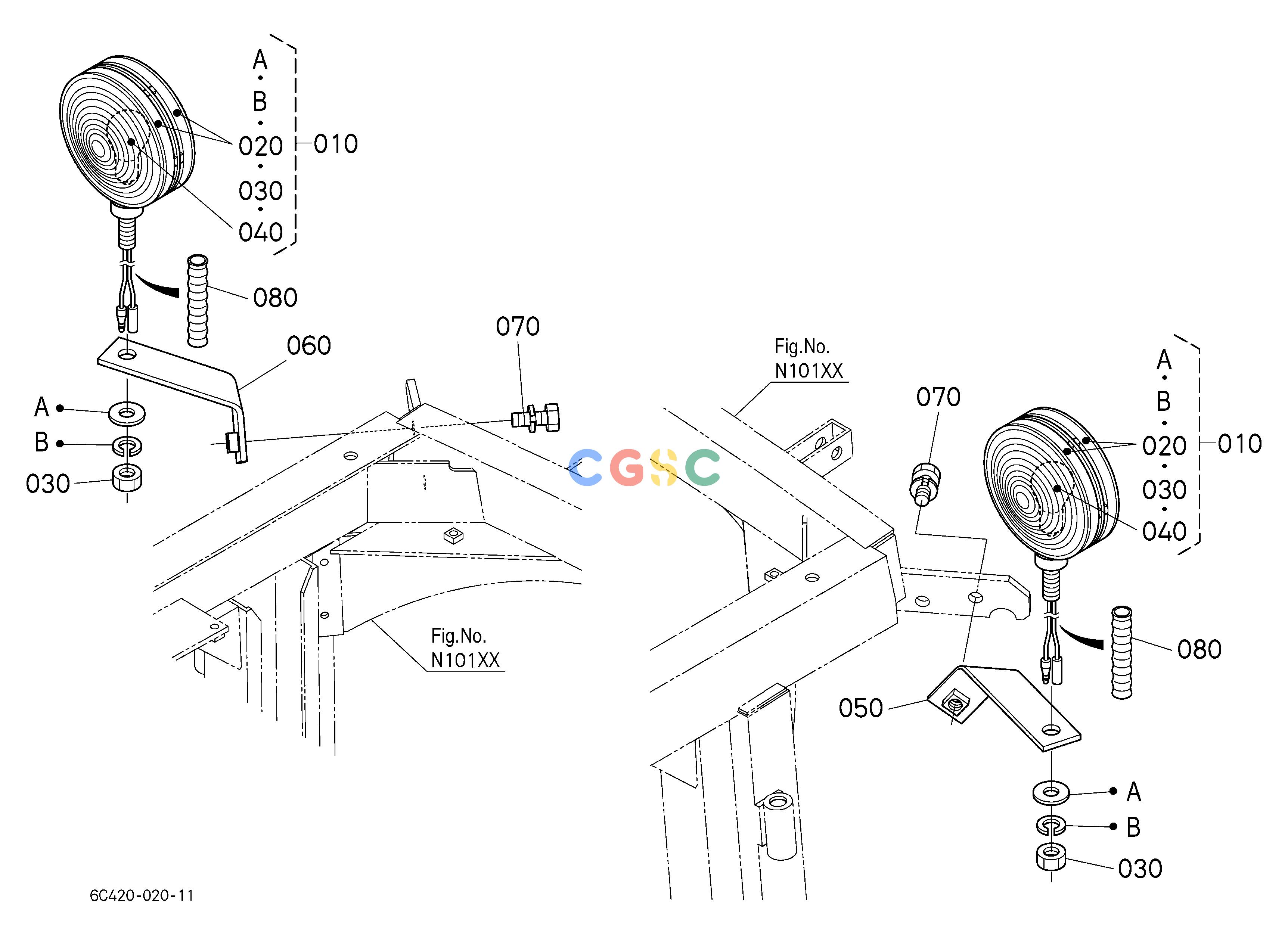

久保田零件查询U65100 CAB KIT 2 (HAZARD LIGHT) (W/G.No.B7075) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3C08175870
|
[2] |
ASSY LAMP,HAZARD
|
0.4070(lbs); 0.185
|
| 020. |
3N34091510
|
[4] |
LENS
|
0.0880(lbs); 0.040
|
| 030. |
3N34091520
|
[2] |
NUT
|
0.0440(lbs); 0.020
|
| 040. |
3N34091530
|
[2] |
BULB
|
0.0264(lbs); 0.012
|
| 050. |
6C43074310
|
[1] |
STAY(LH,HAZARD)
|
0.3718(lbs); 0.169
|
| 060. |
6C43074320
|
[1] |
STAY(RH,HAZARD)
|
0.3696(lbs); 0.168
|
| 070. |
0113351025
|
[2] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
| 080. |
5H80133440
|
[2] |
TUBE,PROTECTOR
|
0.0022(lbs); 0.001
|
