神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (03-004) - REWORK, CONTROL ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
112 次

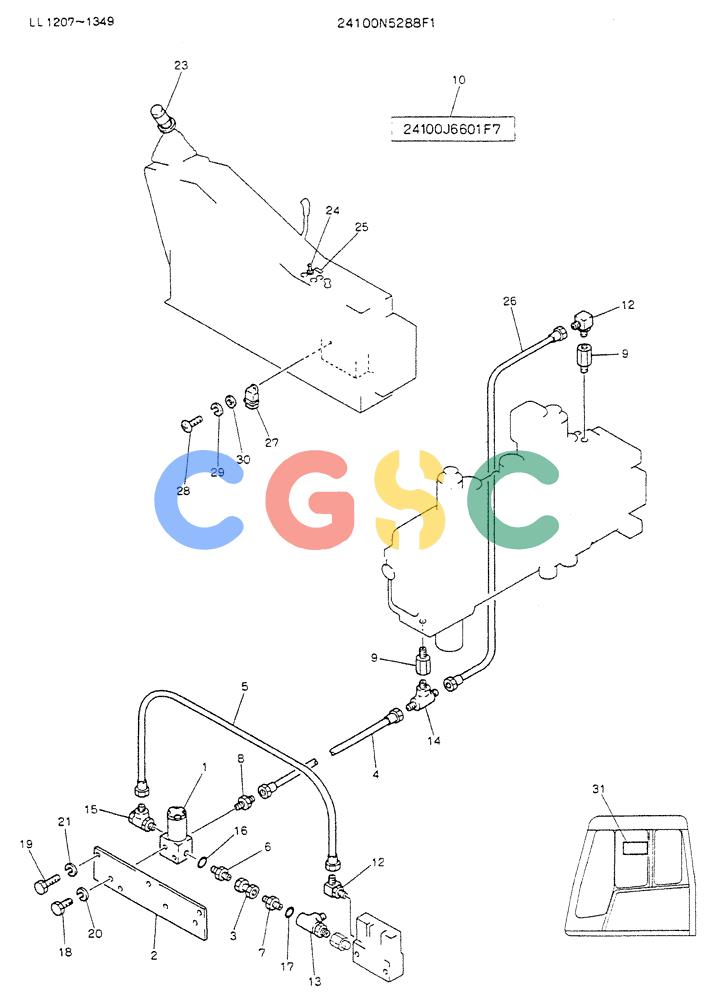

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5288F1 | [1] | REWORK, CONTROL ASSY | |
| 1. | 2436U1314F1 | [1] | VALVE | KOBASSY, SOLENOID |
| 2. | 2418T16418 | [1] | PLATE | PLATE |
| 3. | 2418T18241 | [1] | TUBE | KOB |
| 4. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB2100mm Long (82-11/16 in) |
| 5. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 6. | ZA23F10004 | [1] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 7. | ZA23F10006 | [1] | HYD CONNECTOR | KOB |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 9. | 2444Z2335 | [2] | CONNECTION | KOB |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONCONTROL ASSY REF 03-001(01) |
| 12. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 13. | 2444T3322 | [1] | TEE | KOB |
| 14. | ZH52X04000 | [1] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 15. | 2444Z2461 | [1] | TEE | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| 16. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 17. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 18. | ZS13C06016 | [2] | SCREW | KOBM06x1.0x16mm |
| 19. | ZS13C10025 | [3] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 20. | ZW22X06000 | [2] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 21. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 23. | 2406R256F1 | [1] | HANDLE | KOBGRIP |
| 24. | 2479Z1454 | [1] | THERMOSTAT | KOB |
| 25. | 2432T2527 | [1] | LABEL | KOB |
| 26. | 2420R349D075 | [1] | HOSE | KOB750mm Long (29-1/2 in) Superseded by part number: 2444R3019D3 |
| 27. | 2479U229 | [1] | RELAY | KOBASSY |
| 28. | ZS31C06012 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 29. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 30. | ZW16K06000 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 31. | 2432N1920 | [1] | LABEL | KOB |
