神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (03-005) - LEVER ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
521 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

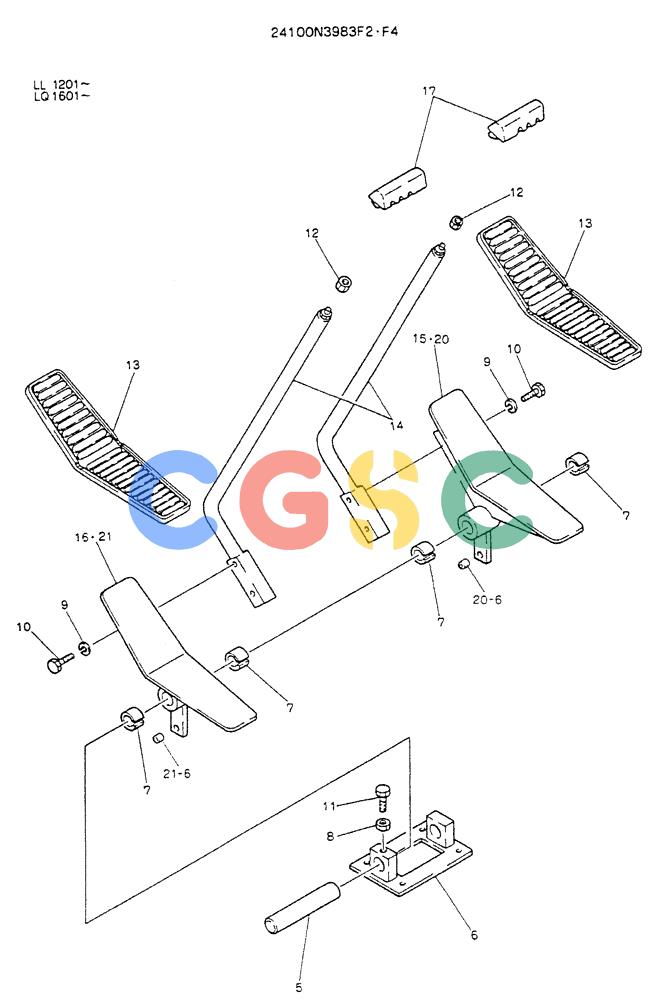

| . . | 24100N3983F2 | [1] | LEVER ASSY,CONTROL, Serial Range: LL1201-LL1436 | |
| . . | 24100N3983F4 | [1] | LEVER | KOBASSY,CONTROL CAN BE REPLACED BY 24100N3983F4, Start Serial: LL1437 |
| 5. | 2419T3305D2 | [1] | PIN | KOB |
| 6. | 2416T12941 | [1] | U-BRACKET | KOB |
| 7. | 2405R61D1 | [4] | BUSHING | KOB Superseded by part number: 2405U104D022020 |
| 8. | ZN17C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 9. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 10. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 11. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | 2420T4479 | [2] | NUT | KOB3/8"-14UNF |
| 13. | 2427R474 | [2] | COVER | KOB |
| 14. | 2406P3942 | [2] | LEVER | KOB |
| 15. | 2427P1870D1 | [1] | PEDAL, Serial Range: LL1201-LL1436 | PEDAL, Serial Range: LL1201-LL1436 |
| 16. | 2427P1870D2 | [1] | PEDAL, Serial Range: LL1201-LL1436 | PEDAL, Serial Range: LL1201-LL1436 |
| 17. | 2406R253 | [2] | GRIP | KOB |
| 20. | 2427P1870D3 | [1] | PEDAL, Start Serial: LL1437 | PEDAL, Start Serial: LL1437 |
| 20-6. | 2405R61D7 | [1] | BUSHING | KOB1 PER PEDEL Superseded by part number: 2405U104D012008 |
| 21. | 2427P1870D4 | [1] | PEDAL, Start Serial: LL1437 | PEDAL, Start Serial: LL1437 |
| 21-6. | 2405R61D7 | [1] | BUSHING | KOB Superseded by part number: 2405U104D012008 |
