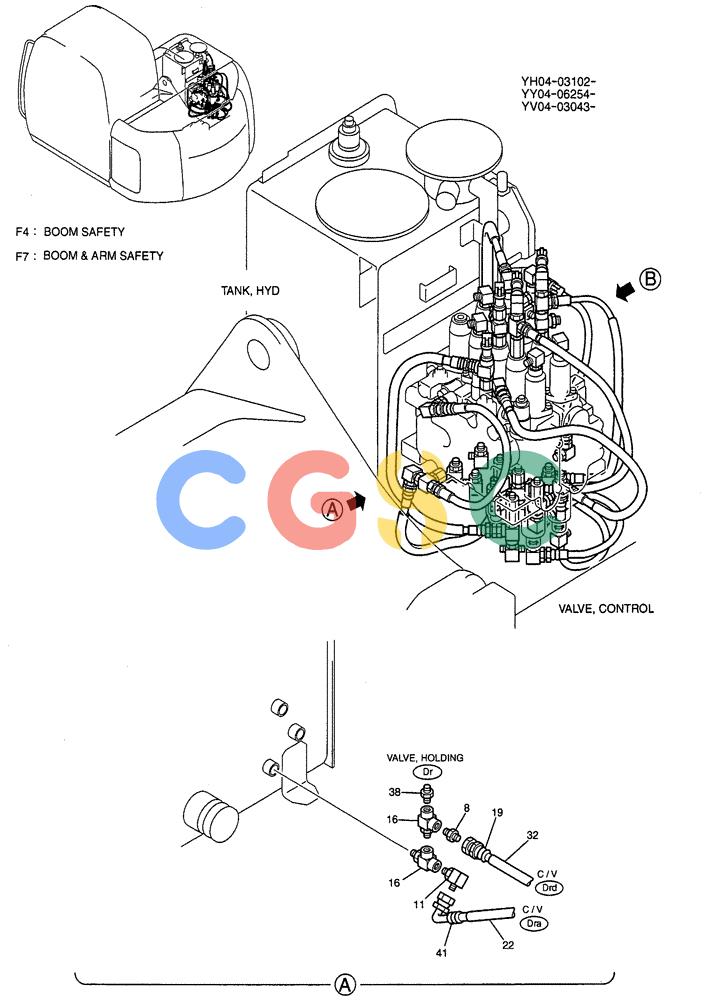

| . . | YY06H00015F4 | [1] | CONTROL LINES, MAIN (BOOM SAFETY) | |
| . . | YY06H00015F7 | [1] | CONTROL LINES, MAIN (BOOM & ARM SAFETY) | |
| 2. | ZH22X06000 | [3] | HYD CONNECTOR | KOB(FOR F4 ONLY) |
| 3. | 2444Z2525 | [3] | HYD CONNECTOR | KOB |
| 4. | 2444Z2891 | [2] | HYD CONNECTOR | KOB |
| 5. | 2444T2505 | [1] | HYD CONNECTOR | KOB |
| 6. | 2444Z3711 | [3] | HYD CONNECTOR | KOB |
| 7. | YN06H01017P1 | [1] | HYD CONNECTOR | KOB |
| 8. | ZH22X04006 | [3] | HYD CONNECTOR | KOB |
| 9. | ZH32X04000 | [4] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBELBOW |
| 10. | ZH32X06000 | [8] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 11. | ZH32X04006 | [6] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| 12. | 2444Z2336 | [1] | HYD CONNECTOR | KOBTEE |
| 13. | ZH52X04000 | [1] | TEE,30° Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB |
| 14. | LC52S00011P1 | [5] | SENSOR | KOBPRESS (L.P.) Superseded by part number: LC52S00019P1 |
| 14-1. | ZD12P01100 | [1] | O-RING | KOB |
| 15. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| 16. | HH55Q06006G1 | [8] | TEE | KOB(FOR F4 ONLY) |
| 17. | 2444Z3546 | [1] | ELEC CONNECTOR | KOB |
| 18. | 2444R1120D065 | [1] | HOSE | KOB |
| 19. | 2444R1120D045 | [1] | HOSE | KOB |
| 20. | 2444R1120D050 | [1] | HOSE | KOB |
| 21. | 2444R596D1 | [2] | ELBOW | KOB |
| 22. | PU13E01010DJ | [2] | TUBE | KOB |
| 23. | ZH42X04006 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| 24. | 2444Z3943 | [1] | ELEC CONNECTOR | KOB |
| 25. | ZX23M04040 | [2] | HOSE ASSY. | KOB |
| 26. | ZX23M04076 | [2] | HOSE | KOB |
| 27. | 2444Z2894 | [3] | 90 ELBOW | KOBELBOW |
| 28. | ZH52X06000 | [1] | TEE,30° Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB |
| 29. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 30. | PU13E01010DN | [3] | TUBE | KOB |
| 31. | 2418Z1333D32 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 650mm Length | KOBProtective Plastic |
| 32. | PU13E01010D2 | [1] | TUBE | KOB |
| 33. | YN21V00005F2 | [2] | CHECK VALVE | KOBASSY, CHECK |
| 34. | HH55V04006G1 | [2] | TEE | KOB |
| 35. | ZX23M06076 | [1] | HOSE ASSY. | KOB Superseded by part number: ZX23M06080 |
| 37. | ZX23M04070 | [1] | HOSE ASSY. | KOB |
| 38. | 2444R402D4 | [1] | HYD CONNECTOR | HIT |
| 40. | HH55Q04004G1 | [2] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| 41. | 2444R1122D065 | [1] | HOSE | KOB |
