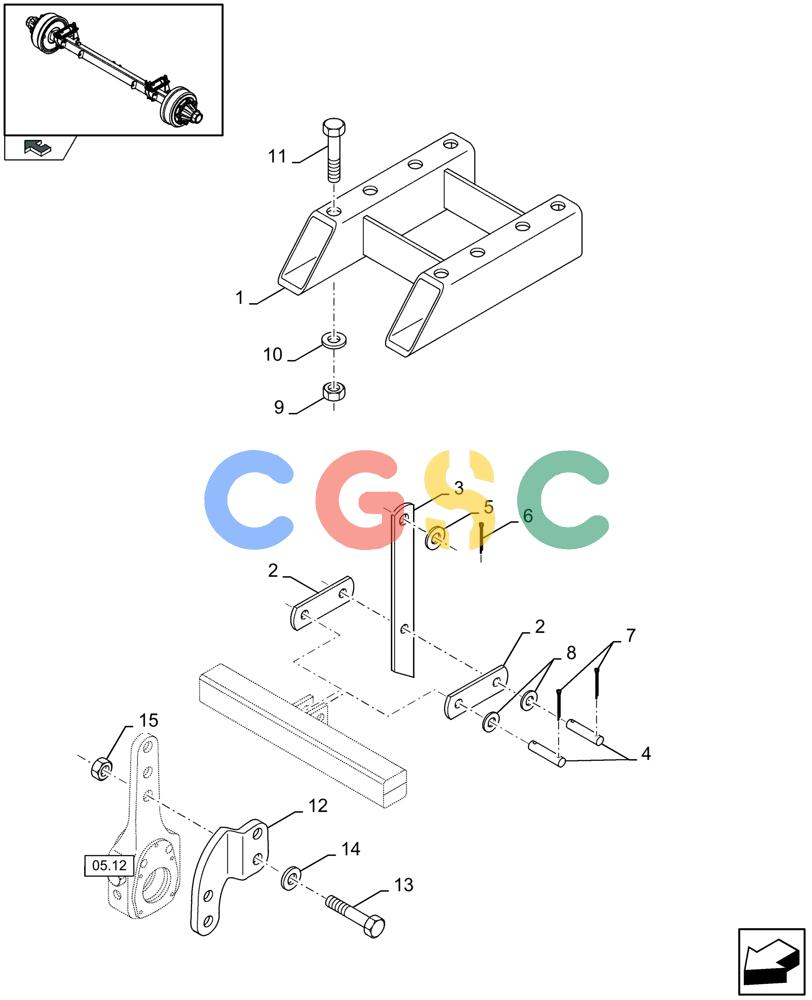

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.14[01]) - AXLE, FIXING PARTS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078606
|
[2] |
SUPPORT
|
ZED
|
| 1. |
87494792
|
[2] |
BLOCK
|
ZED
|
| 2. |
87389143
|
[4] |
PLATE
|
ZED
|
| 3. |
87389145
|
[2] |
PLATE
|
ZED
|
| 3. |
87389147
|
[2] |
PLATE
|
ZED
|
| 4. |
9503184
|
[4] |
CLEVIS PIN,M16 x 50
|
NH
Superseded by part number: 87021826
|
| 5. |
140104
|
[2] |
WASHER,26mm ID x 45mm OD x 3mm Thk
|
ZED
|
| 6. |
300595
|
[2] |
COTTER PIN,M4 x 40
|
WIN
Superseded by part number: 10733901
|
| 7. |
130007
|
[4] |
COTTER PIN,M4 x 25
|
NH
Superseded by part number: 83903970
|
| 8. |
378246
|
[4] |
WASHER,17mm ID x 34mm OD x 3mm Thk
|
ZED
|
| 9. |
89706694
|
[16] |
NUT,M20, Cl 8
|
ZED
Superseded by part number: 9706694
|
| 10. |
322359
|
[16] |
BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk
|
NH
|
| 11. |
89838134
|
[16] |
SCREW
|
ZED
Superseded by part number: 9847023
|
| 11. |
384197
|
[16] |
BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8
|
NH
|
| 11. |
395528
|
[16] |
BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8
|
NH
|
| 11. |
9847023
|
[16] |
BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd
|
NH
|
| 12. |
84807811
|
[2] |
PLATE
|
ZED
LH
|
| 12. |
84807813
|
[2] |
PLATE
|
ZED
RH
|
| 13. |
280264
|
[4] |
BOLT,Hex, M14 x 50mm, Cl 8.8
|
GI
|
| 14. |
140069
|
[4] |
WASHER,M15 x 24 x 2 Thk
|
ZED
|
| 15. |
412370
|
[4] |
NUT,M14 x 2, Cl 8
|
ZED
|
