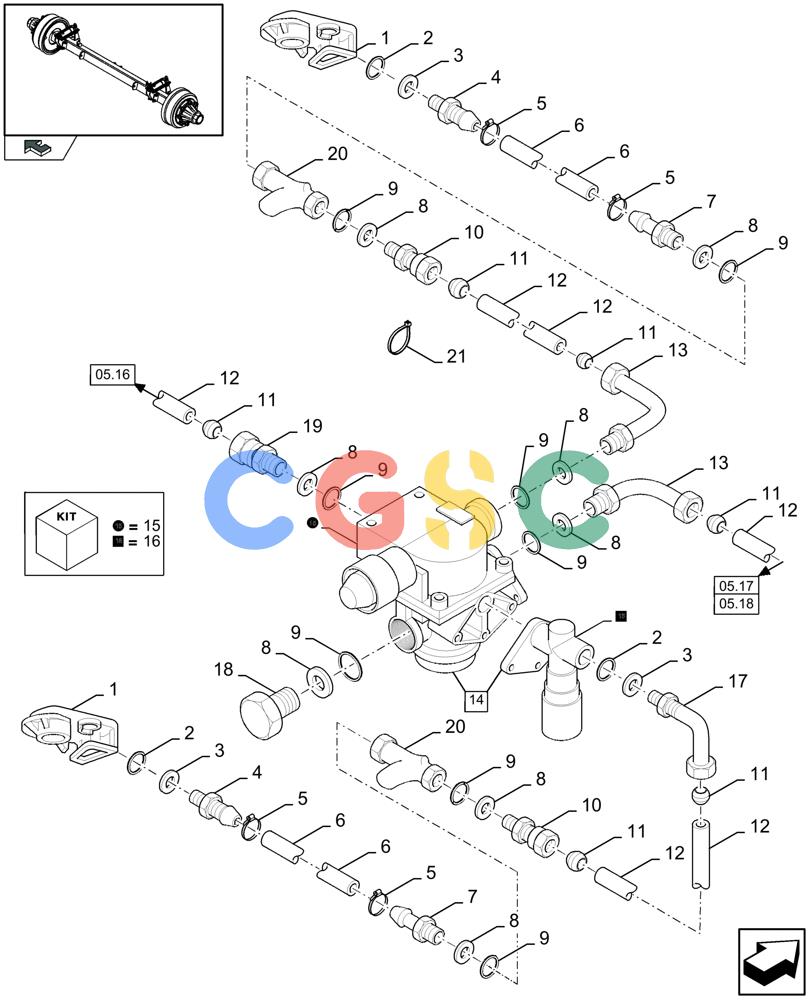

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.15[01]) - PNEUMATIC BRAKES, BRAKE VALVE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
258 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9512537
|
[1] |
COUPLING BLOCK
|
PA
|
| 1. |
9512546
|
[1] |
COUPLING BLOCK
|
PA
|
| 1. |
84017270
|
[1] |
COUPLING BLOCK
|
ZED
|
| 2. |
9512532
|
[1] |
O-RING
|
PA
|
| 3. |
9512533
|
[1] |
WASHER, THRUST,16.1mm ID x 22mm OD x 2.6mm Thk
|
PA
|
| 4. |
9512534
|
[1] |
HYD CONNECTOR
|
PA
|
| 5. |
326082
|
[1] |
CLAMP,18mm - 25mm
|
ZED
, Serial Range: -C888
|
| 5. |
150064
|
[1] |
CLAMP
|
ZED
, Start Serial: D889
|
| 6. |
84014198
|
[1] |
HOSE,18mm OD x 3.5mm Thk
|
ZED
Superseded by part number: 87389513
|
| 7. |
9512531
|
[2] |
HYD CONNECTOR
|
PA
|
| 8. |
9512530
|
[8] |
WASHER, THRUST,22mm ID x 27mm OD x 2.6mm Thk
|
PA
Superseded by part number: 3076153R1
|
| 9. |
9512529
|
[8] |
O-RING
|
PA
|
| 10. |
9512528
|
[2] |
HYD CONNECTOR
|
PA
|
| 11. |
9512527
|
[1] |
FERRULE
|
PA
|
| 12. |
9512535
|
[1] |
HOSE
|
PA
Superseded by part number: 87359227
|
| 13. |
9512525
|
[2] |
ELBOW
|
PA
|
| 14. |
9512544
|
[1] |
BRAKE VALVE
|
ZED
(15, 16) Superseded by part number: 87019852
|
| 15. |
9804178
|
[1] |
SEAL KIT
|
ZED
|
| 16. |
9804179
|
[1] |
SEAL KIT
|
ZED
|
| 17. |
84007190
|
[1] |
ELBOW,M16 x 1.5 Male
|
ZED
|
| 18. |
9512523
|
[1] |
PLUG
|
PA
|
| 19. |
84007189
|
[1] |
HYD CONNECTOR,M22 x 1.5
|
ZED
|
| 20. |
9512545
|
[2] |
AIR FILTER
|
PA
|
| 21. |
323597
|
[6] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP Superseded by part number: 14560287
|
