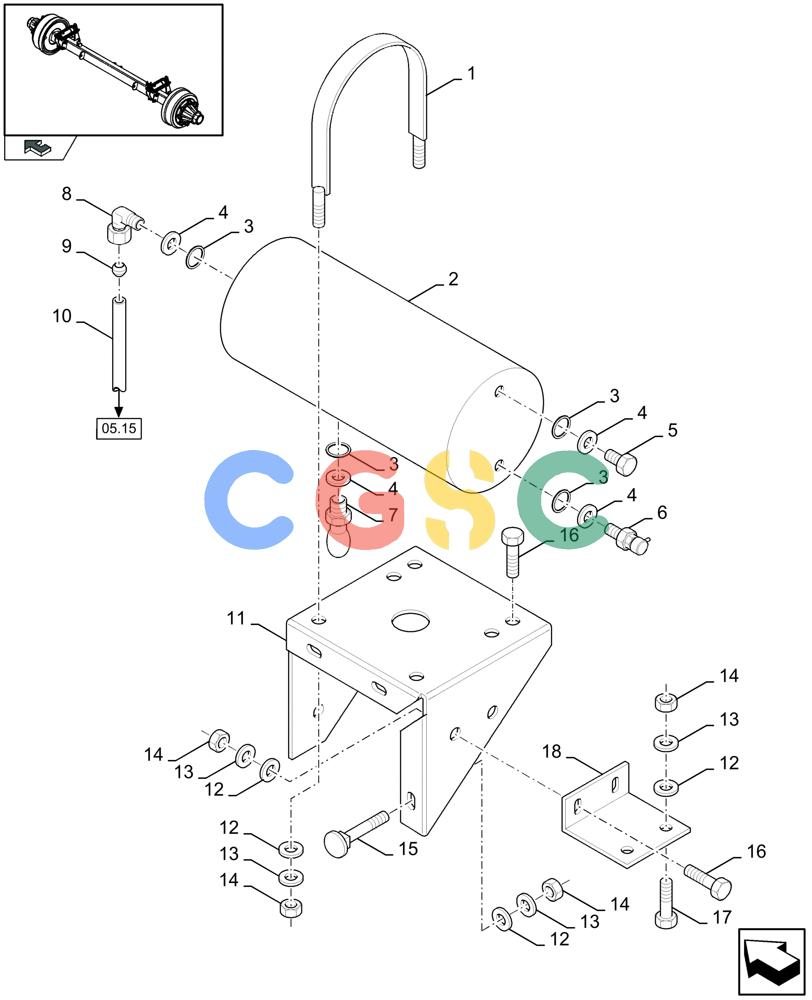

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.16[01]) - PNEUMATIC BRAKES, AIR RESERVOIR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9512522
|
[2] |
SUPPORT
|
PA
Superseded by part number: 87028121
|
| 2. |
84078145
|
[1] |
AIR RESERVOIR
|
ZED
|
| 3. |
9512529
|
[4] |
O-RING
|
PA
|
| 4. |
9512530
|
[4] |
WASHER, THRUST,22mm ID x 27mm OD x 2.6mm Thk
|
PA
Superseded by part number: 3076153R1
|
| 5. |
9512523
|
[1] |
PLUG
|
PA
|
| 6. |
9512540
|
[1] |
HYD CONNECTOR
|
PA
Superseded by part number: 443287A1
|
| 7. |
9512541
|
[1] |
DRAIN PLUG
|
PA
|
| 8. |
9512525
|
[1] |
ELBOW
|
PA
|
| 9. |
9512527
|
[1] |
FERRULE
|
PA
|
| 10. |
9512535
|
[1] |
HOSE
|
PA
L= 3 m Superseded by part number: 87359227
|
| 11. |
84007193
|
[1] |
SUPPORT
|
ZED
|
| 12. |
378244
|
[13] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 13. |
140045
|
[13] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 14. |
100016
|
[13] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 15. |
338949
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 16. |
43139
|
[6] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 17. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 18. |
84007195
|
[1] |
BRACKET
|
ZED
|
