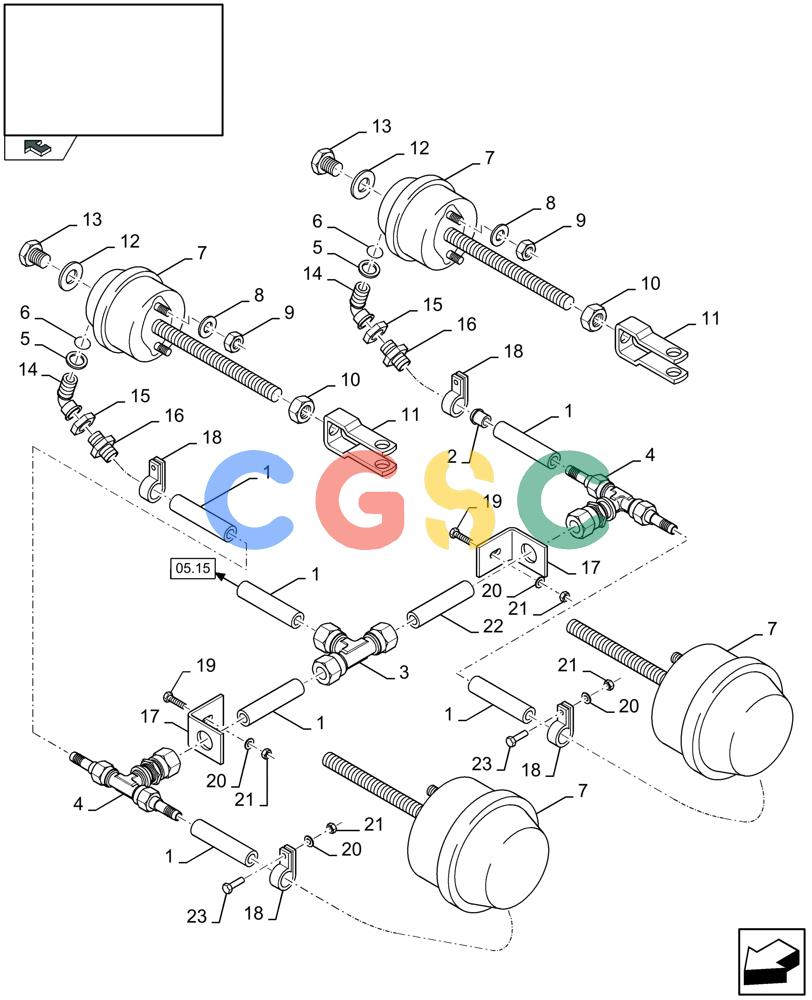

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.18[01]) - PNEUMATIC BRAKES - TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512535
|
[1] |
HOSE
|
ZED
L= 3 M Superseded by part number: 87359227
|
| 2. |
89512527
|
[1] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 3. |
84100075
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 4. |
84100076
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 5. |
89512533
|
[1] |
WASHER, THRUST
|
ZED
Superseded by part number: 9512533
|
| 6. |
89512532
|
[1] |
O-RING
|
ZED
Superseded by part number: 9512532
|
| 7. |
84078896
|
[2] |
CYLINDER
|
ZED
REAR
|
| 7. |
84320807
|
[2] |
CYLINDER
|
ZED
FRONT, Serial Range: -C699
|
| 7. |
84014961
|
[2] |
CYLINDER
|
ZED
FRONT, Start Serial: D700
|
| 8. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 9. |
330327
|
[1] |
NUT,M12 x 1.5, Cl 8
|
NH
|
| 10. |
364164
|
[1] |
THIN NUT,Thin, M16 x 1.5, Cl 04
|
ZED
Superseded by part number: 10791411
|
| 11. |
84014245
|
[1] |
YOKE
|
ZED
|
| 12. |
84014312
|
[1] |
RING
|
ZED
|
| 13. |
84014311
|
[1] |
PLUG
|
ZED
|
| 14. |
84100254
|
[4] |
HYD CONNECTOR
|
ZED
|
| 15. |
10791411
|
[4] |
THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND
|
IMO
, Start Serial: D700
|
| 16. |
9512534
|
[4] |
HYD CONNECTOR
|
PA
|
| 17. |
84100226
|
[2] |
BRACKET
|
ZED
|
| 18. |
9706732
|
[4] |
CLAMP,19mm ID, 8.7mm Bolt Hole, P Type
|
NH
Superseded by part number: 86637976
|
| 19. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 20. |
322357
|
[1] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 21. |
9706755
|
[1] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 22. |
84100225
|
[1] |
TUBE,55 mm Length
|
ZED
|
| 23. |
300506
|
[2] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
|
NH
, Serial Range: -C699 Superseded by part number: 86977786
|
| 23. |
86977786
|
[2] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
, Start Serial: D700
|
