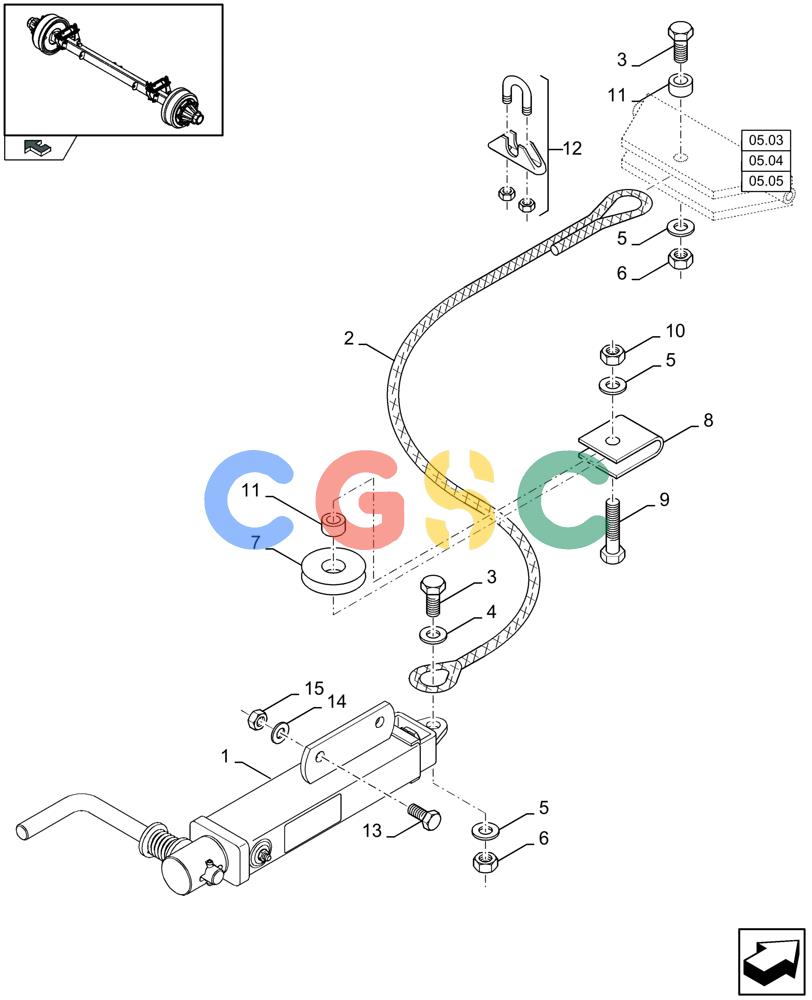

凯斯零件查询(LB433R) - BIG RECTANGULAR BALER 'ROTOR CUTTER' (9/08-12/12) (05.19[01]) - PARKING BRAKES - SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1024 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078617
|
[1] |
LEVER
|
ZED
, Serial Range: -C813 Superseded by part number: 84274758
|
| 1. |
84274758
|
[1] |
HAND BRAKE
|
ZED
, Start Serial: D814
|
| 2. |
87488800
|
[1] |
CABLE
|
ZED
|
| 3. |
120079
|
[2] |
BOLT,Hex, M12 x 40, 8.8, Full Thd
|
WIN
Superseded by part number: 86629541
|
| 4. |
378245
|
[1] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
| 5. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 6. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 7. |
84078395
|
[1] |
ROLLER,60mm OD x 11.5mm L
|
ZED
|
| 8. |
84078396
|
[1] |
BRACKET
|
ZED
|
| 9. |
9706702
|
[1] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
NH
|
| 10. |
100018
|
[1] |
NUT,M12, Cl 8, ZND
|
NNA
Superseded by part number: 892-11012, 892-11012, 9706685
|
| 11. |
9838358
|
[2] |
BUSHING,13mm ID x 22mm OD x 13mm L
|
ZED
|
| 12. |
84607247
|
[1] |
WIRE CLAMP
|
ZED
|
| 13. |
43139
|
[2] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 14. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
