神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (08-007) - LIGHT, BOOM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
733 次

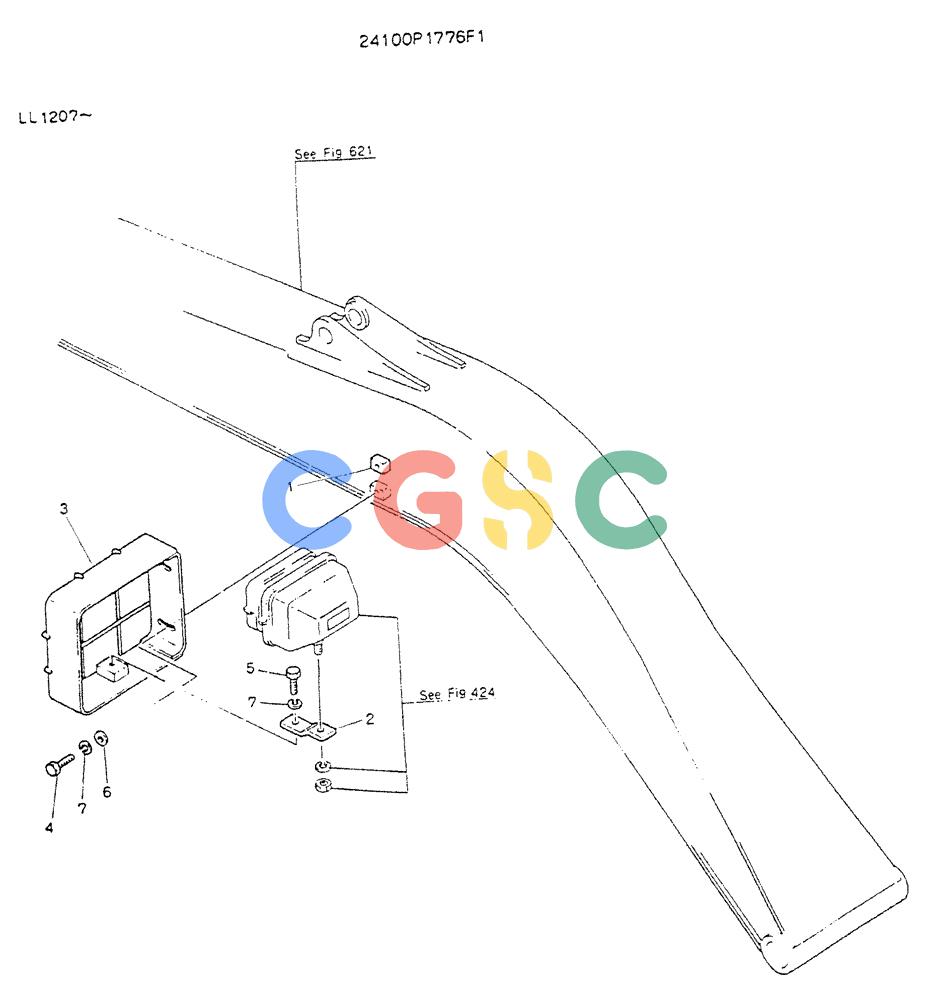

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1776F1 | [1] | COVER | KOB |
| 1. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 2. | 2416T13218 | [1] | U-BRACKET | KOB |
| 3. | 2414P4100D2 | [1] | COVER | KOB |
| 4. | ZS13C10020 | [2] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 5. | ZS13C10025 | [1] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 6. | ZW11X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 7. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
