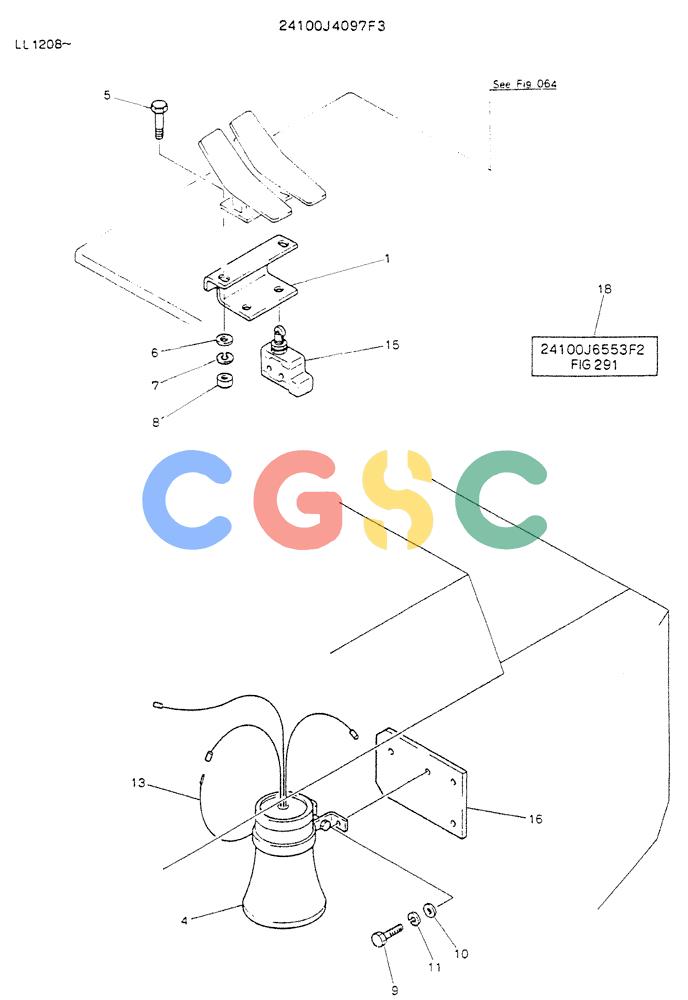

神钢零件查询(K909LC) - MARK II EXCAVATOR BTW LL1207 - LL1487 (1/87-12/03) (08-008) - BUZZER ASSY, BACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4097F3 | [1] | BUZZER ASSY | BUZZER ASSY |
| 1. | 2416P8798 | [1] | BRACKET | KOB |
| 4. | 2447R102 | [1] | BUZZER | KOB |
| 5. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 6. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 7. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 9. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 10. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 11. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 13. | 2479Z1057 | [1] | HARNESS | HARNESS |
| 15. | 2479Z1452 | [2] | SWITCH | KOB |
| 16. | 2418T16770 | [1] | PLATE | KOB |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONSEE FIG 05-001 |
