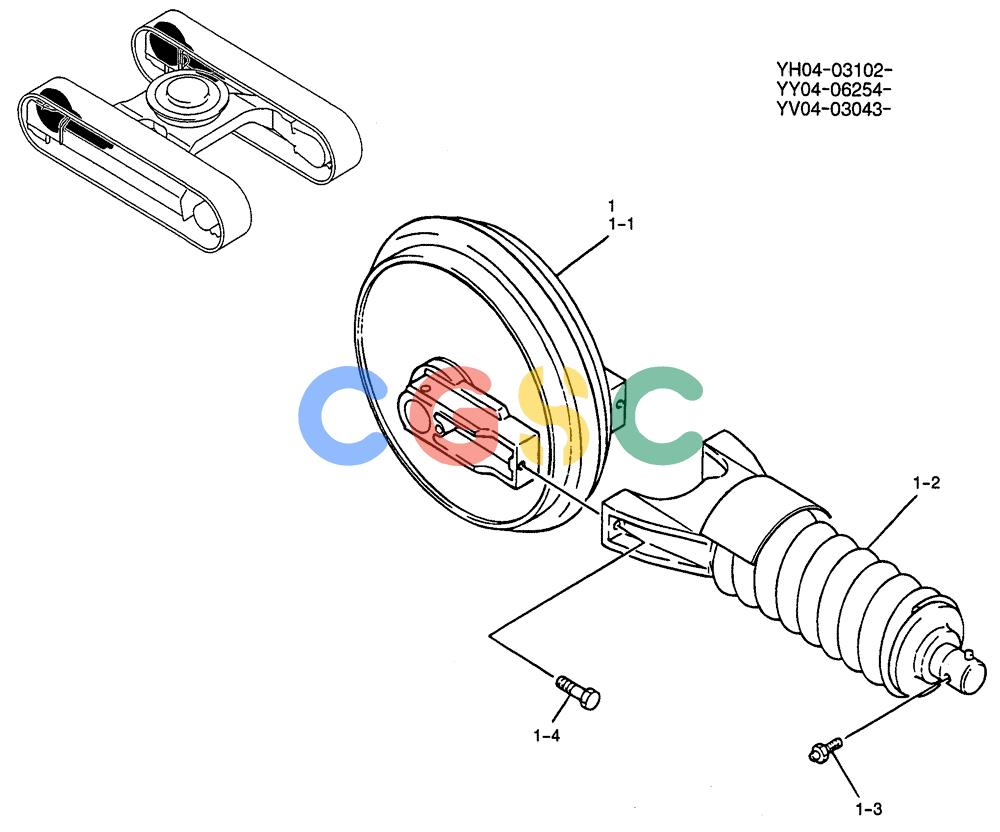

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-004) - IDLER ASSY, CRAWLER P/N YX52D00009F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX52D00009F1 | [1] | IDLER | KOBASSY, CRAWLER Superseded by part number: YX52D00005F1 |
| 1. | YX52D00005F1 | [2] | IDLER | KOBASSY, CRAWLER |
| 1-1. | YX52D00003F1 | [1] | IDLER | KOBASSY, SEE FIG. 02-007, 02-008 Superseded by part number: YV52D00002F1 |
| 1-2. | YX54D00002F1 | [1] | IDLER | KOBADJUST ASSY, SEE FIG. 02-009, 02-010 |
| 1-3. | 2444P803 | [1] | LUBE NIPPLE,5/8” – 18 x 64mm L, 19mm Hex | KOBGREASE |
| 1-4. | ZS13C12035 | [2] | CAPSCREW | KOBSCREW CAP Superseded by part number: ZS18C12035 |
