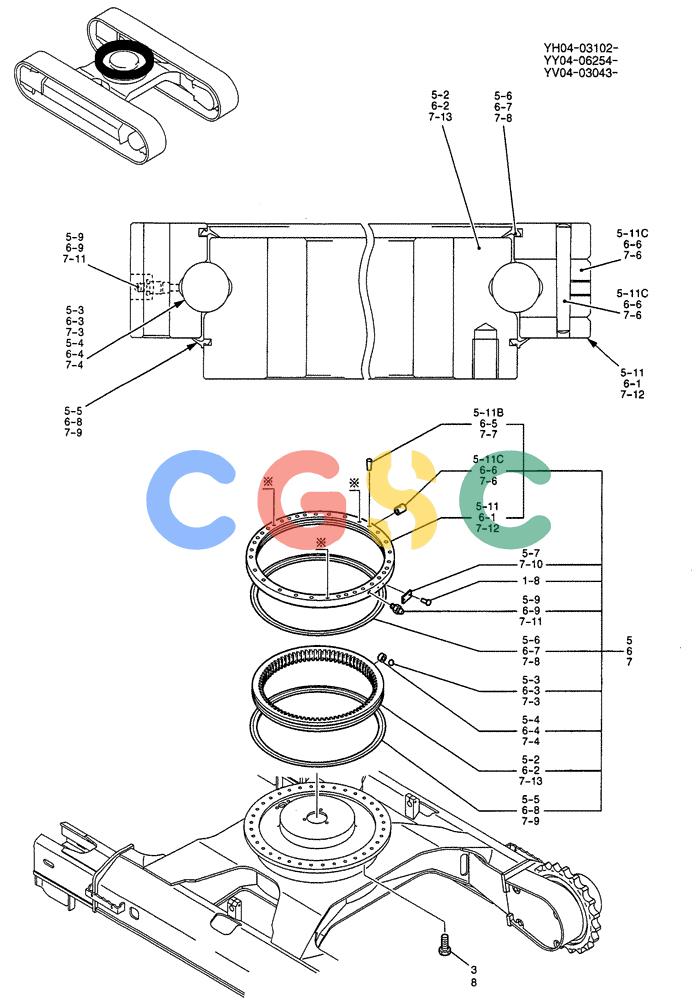

纽荷兰零件查询(E115SR) - CRAWLER EXCAVATOR ASN YV04-03043 (02-003) - SLEWING RING ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
629 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LP40F00001F4 | [1] | RING | KOBASSY, SLEWING (IN-HOUSE PRODUCT) |
| 3. | ZS13C16045 | [36] | SCREW | KOBYV04-03043 to YV04 -03427 |
| 5. | 24100N7529F2 | [1] | SLEWING RING | KOBASSY Superseded by part number: YY40F00006F3 |
| 5-2. | 2401N443 | [1] | RACE | KOBINNER |
| 5-3. | 2425T321 | [108] | BALL | KOB |
| 5-4. | 2425T322 | [108] | RETAINER | KOB |
| 5-5. | 2445P165D6 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 5-6. | 2445P165D5 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 5-7. | YN22T00191P1 | [1] | PLATE | KOBNAME |
| 5-8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 5-9. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| 5-11. | YY40F01004P1 | [1] | RACE, OUTER | |
| 5-11B. | 2420T4543D2 | [1] | PLUG | KOB |
| 5-11C. | 2419T1964D7 | [1] | PIN,10mm OD x 56mm L | KOBTAPER |
| 8. | LP53D01001P1 | [36] | BOLT,Hex, M16 x 2 x 45mm | KOBCAP YV04-03428 to Superseded by part number: LP53D01001P2 |
| . . | 2445P114D7 | [1] | SEAL KIT | KOBKIT, CONSISTS OF REF 5-5(1), 5-6(1) Superseded by part number: YN40F01024D4 |
| . . | LP40F00001F5 | [1] | RING ASSY, SLEWING [PURCHASED PRODUCT (KOYO SEIKO)] | |
| 6. | YW40F00001F2 | [1] | RING ASSY, SLEWING | |
| 6-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONRACE, OUTER |
| 6-4. | 2425U238S4 | [108] | RETAINER | |
| . . | LP40F00001F6 | [1] | RING ASSY, SLEWING [PURCHASED PRODUCT (ANTEX)] | |
| 7. | YY40F00006F3 | [1] | SLEWING RING | KOBASSY |
