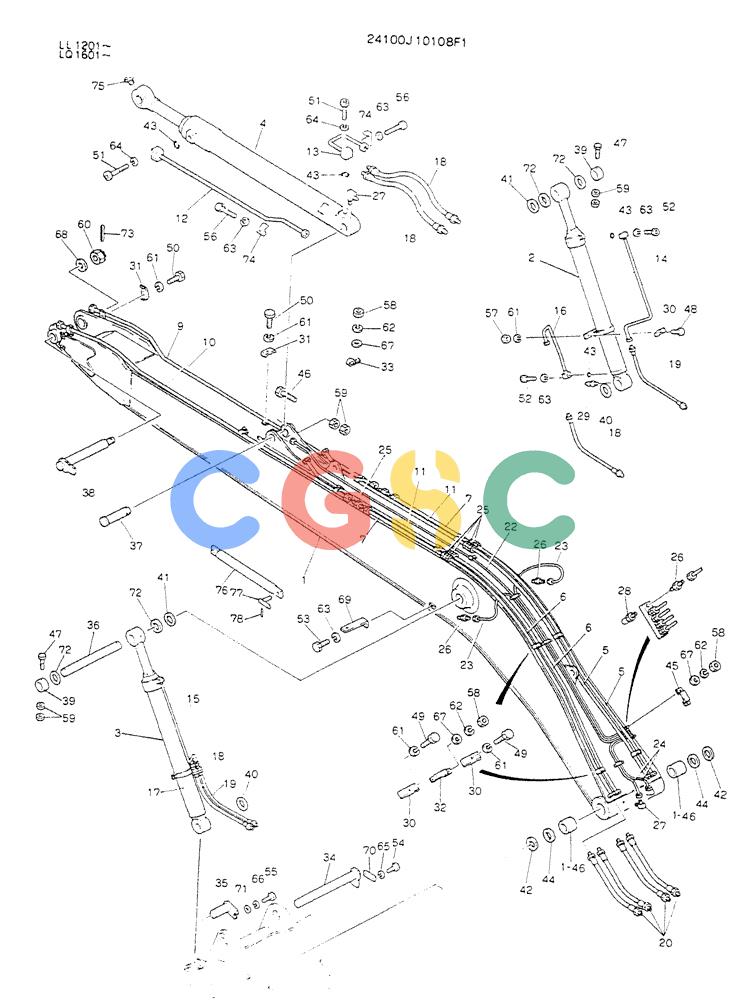

| . . | 24100J10108F1 | [1] | BOOM ASSY. 9.9M | |
| 1. | 2411J3376F1 | [1] | BOOM | |
| 1-46. | 2405T1262 | [2] | BUSHING | KOB |
| 2. | 2438U999F1 | [1] | CYLINDER | KOB |
| 3. | 2438U1000F1 | [1] | BOOM | KOB |
| 4. | 2438U588F4 | [1] | CYLINDER | KOB |
| 5. | 2418P18886D1 | [2] | TUBE | KOB |
| 6. | 2418P18886D2 | [2] | TUBE | KOB |
| 7. | 2418T16718 | [2] | TUBE | TUBE |
| 9. | 2418P18912D1 | [1] | TUBE | TUBE |
| 10. | 2418P18912D2 | [1] | TUBE | TUBE |
| 11. | 2418T16717 | [2] | TUBE | |
| 12. | 2418P7512 | [1] | RIGID TUBE | KOB |
| 13. | 2418P8511 | [1] | TUBE | KOB |
| 14. | 2418P12375D1 | [1] | TUBE | KOB |
| 15. | 2418P12375D2 | [1] | TUBE | KOB |
| 16. | 2418P12376D1 | [1] | RIGID TUBE | KOB |
| 17. | 2418P12376D2 | [1] | RIGID TUBE | KOB |
| 18. | ZX26N12080 | [4] | HOSE | KOB |
| 19. | 2444R994D1 | [2] | HOSE | KOB |
| 20. | ZX26N12094 | [4] | FLEXIBLE HOSE | KOB |
| 22. | 2420R349D740 | [1] | HOSE | |
| 23. | 2420R349D310 | [2] | HOSE | KOB3100mm Long (122-3/64 in) Superseded by part number: HX21E04310DX |
| 24. | 2420R349D110 | [2] | HOSE,1100.00 mm | KOB1100mm Long (43-19/64 in) Superseded by part number: HX21E04110DX |
| 25. | ZA23B28000 | [6] | CONNECTION | KOBM36x1.50x43mm Long |
| 26. | ZH22Z04000 | [7] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 27. | ZH32Z04000 | [3] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 28. | ZG91U02000 | [5] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 29. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 30. | 2432T2245 | [12] | CLAMP | KOB |
| 31. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 32. | 2416T3655 | [4] | CLAMP | KOB |
| 33. | ZC45X11009 | [3] | CLIP | KOBClamp, Single Line -- ID 11x35.5mm Long Superseded by part number: ZC46X11009 |
| 34. | 2419T4676 | [1] | PIN | KOBOD 100 x 894mm Long Superseded by part number: 2419T7608 |
| 35. | 2419T4678 | [2] | PIN | KOB Superseded by part number: 2419P3437 |
| 36. | 2419T4680D1 | [1] | PIN | KOB |
| 37. | 2419P1547D1 | [1] | PIN | KOB |
| 38. | 2419T4681 | [1] | PIN | KOB Superseded by part number: 2419P3438 |
| 39. | 2418T17477 | [2] | COLLAR CLAMP | KOB |
| 40. | B16T0442D14 | [2] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 41. | B16T0442D35 | [2] | SHIM,160mm OD x 97mm ID x 1.6mm Thk | KOBID 97 x OD 160 x Th 1.6mm |
| 42. | B16T0442D36 | [2] | SHIM,160mm OD x 102mm ID x 1.6mm Thk | KOBID 102 x OD 160 x Th 1.6mm |
| 43. | ZD12P02600 | [6] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 44. | 2445R372D5 | [2] | DUST CAP | KOB |
| 45. | 2432T1476 | [1] | CLAMP | KOB |
| 46. | 2420T4004D1 | [1] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm |
| 47. | 2420T4004D3 | [2] | SCREW,M16 x 2 x 160mm | KOBM16x2.0x160mm |
| 48. | ZS13C12065 | [2] | SCREW | KOB Superseded by part number: ZS18C12065 |
| 49. | ZS13C12050 | [10] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 50. | ZS13C12055 | [4] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 51. | ZS23C10060 | [8] | SCREW,Hex Socket Head, M10 x 60mm | KOBM10x1.50x60mm |
| 52. | ZS13C10070 | [16] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 53. | ZS13C10020 | [1] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 54. | ZS13C14030 | [2] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 55. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 56. | ZS12C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 57. | ZN12C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 58. | ZN11C06005 | [13] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 59. | ZN12C16013 | [6] | NUT | KOBM16x2.0mm |
| 60. | 2420Z1047 | [1] | SLOTTED NUT | KOBM56x5.5mm Castle |
| 61. | ZW22X12000 | [16] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 62. | ZW22X06000 | [13] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 63. | ZW22X10000 | [19] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 64. | ZW22K10000 | [8] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 65. | ZW22X14000 | [2] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 66. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 67. | ZW11X06000 | [13] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 68. | 2418Z715 | [1] | WASHER | KOBID 58 x OD 105 x Th 9.0mm |
| 69. | 2416T13056 | [1] | BRACKET | KOB |
| 70. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 71. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| 72. | 2445R372D6 | [4] | SEAL | KOB |
| 73. | ZP15D08100 | [1] | SPRING | KOBCotter -- OD 08 x 100mm Long |
| 74. | 2432T1187 | [2] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 75. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
| 76. | 2406P4026 | [1] | LINK | |
| 77. | 2419P4696 | [2] | PIN | |
| 78. | 2419T3095 | [2] | COTTER PIN | KOBLocking |
