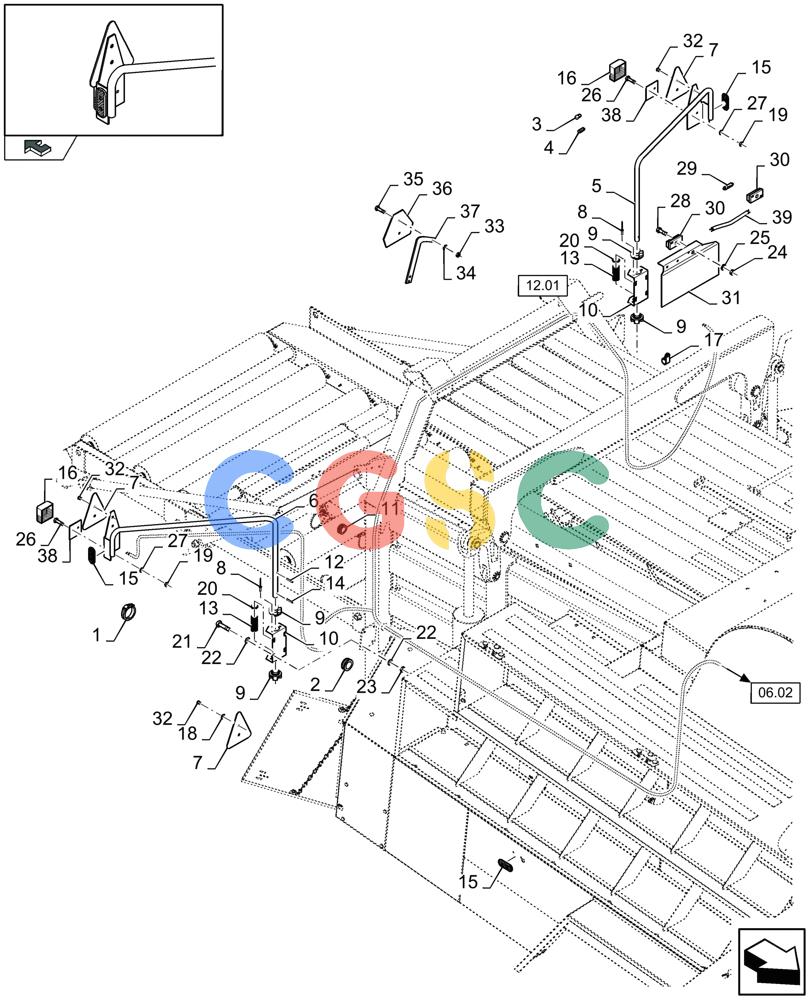

| 1. |
9993154
|
[5] |
ELASTIC STRAP
|
PLO
Superseded by part number: 86566990
|
| 2. |
452802
|
[4] |
GROMMET
|
ZED
|
| 3. |
398877
|
[4] |
BULB,12V, 21W
|
NH
Superseded by part number: 14148190
|
| 4. |
418870
|
[2] |
BULB,12V, 10W
|
NH
Superseded by part number: 14149590
|
| 5. |
84078017
|
[1] |
SUPPORTING ARM
|
ZED
|
| 6. |
84078011
|
[1] |
SUPPORTING ARM
|
ZED
|
| 7. |
746294
|
[4] |
LAMP REFLECTOR
|
NH
Superseded by part number: 80746294, 80746294, BER746294
|
| 8. |
455959
|
[8] |
RIVET,Pop, 3.75mm OD x 11.5mm L
|
CUR
|
| 9. |
921928
|
[4] |
BUSHING
|
ZED
|
| 10. |
9814947
|
[2] |
SUPPORT
|
ZED
|
| 11. |
411809
|
[2] |
GROMMET
|
ZED
|
| 12. |
9503523
|
[2] |
PIN
|
ZED
Superseded by part number: 412660
|
| 13. |
435957
|
[2] |
FORK
|
ZED
|
| 14. |
84022829
|
[2] |
PIN
|
ZED
Superseded by part number: 412689
|
| 15. |
9839002
|
[4] |
EXTERNAL REFLECTOR
|
ZED
|
| 16. |
84037090
|
[2] |
TAIL LAMP,12V, 21W, Amber/Red
|
ZED
|
| 17. |
675162
|
[1] |
WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 18. |
322356
|
[4] |
BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk
|
ZED
|
| 19. |
9706755
|
[4] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 20. |
378248
|
[2] |
WASHER,25mm ID x 50mm OD x 4mm Thk
|
ZED
|
| 21. |
120104
|
[8] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 22. |
322358
|
[16] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 23. |
9706690
|
[8] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 24. |
100012
|
[1] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 25. |
322355
|
[1] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
|
| 26. |
86511830
|
[4] |
SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8
|
ZED
|
| 27. |
412649
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk
|
ZED
|
| 28. |
385682
|
[1] |
BOLT,Hex, M4 x 30mm, Cl 8.8
|
NH
|
| 29. |
470017
|
[1] |
BULB,C11, 12V, 5W
|
ZED
Superseded by part number: 10863090
|
| 30. |
445502
|
[1] |
REVERSING LAMP ASSY,12V, 5W
|
ZED
|
| 31. |
84100424
|
[1] |
SUPPORT
|
ZED
|
| 31. |
84320762
|
[1] |
PLATE
|
ZED
|
| 32. |
84429678
|
[8] |
RIVET
|
ZED
|
| 35. |
120100
|
[3] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 36. |
86547710
|
[1] |
EMBLEM
|
ZED
KIT
|
| 37. |
84100426
|
[1] |
PLATE
|
ZED
|
| 38. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
|
| 39. |
84989378
|
[1] |
WIRE HARNESS
|
ZED
|
